Features:

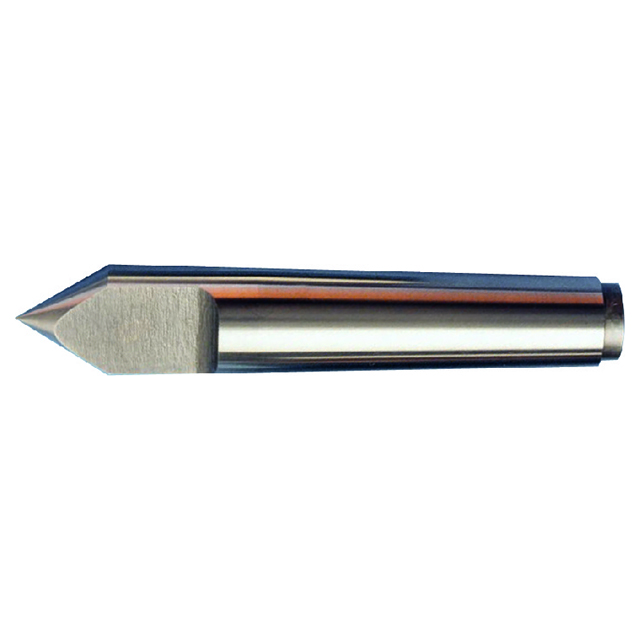

- Steel Half Center

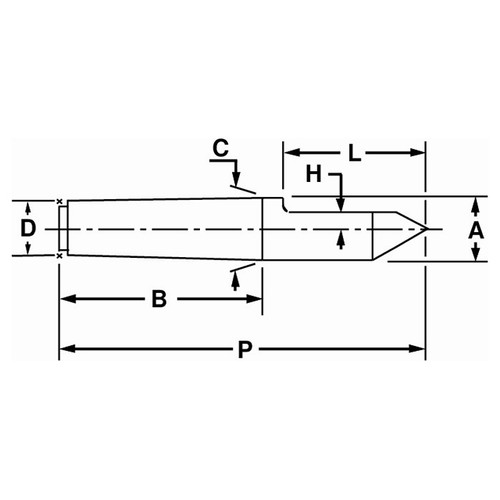

Product Specifications
| # MFG | 72162 |
| Taper | 16 Jarno |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 12.000" |
| Point Length (Inch) | 2.000" |
| Center Style | Half Steel Center |
| Taper Length (Inch) | 8.000" |
| D (Inch) | 1.600" |
| Height Above Center Line (Inch) | 0.375" |
| Length of Cut Out (Inch) | 3.000" |
| Series | Standard Length Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
8"
Length (Decimal Inch):
8.0000"
Length (mm):
203.20mm
Overall Length (Inch):
12"
Overall Length (Decimal Inch):
12.0000"
Overall Length (mm):
304.80mm
Diameter (Inch):
2"
Diameter (Decimal Inch):
2.0000"
Diameter (mm):
50.80mm
