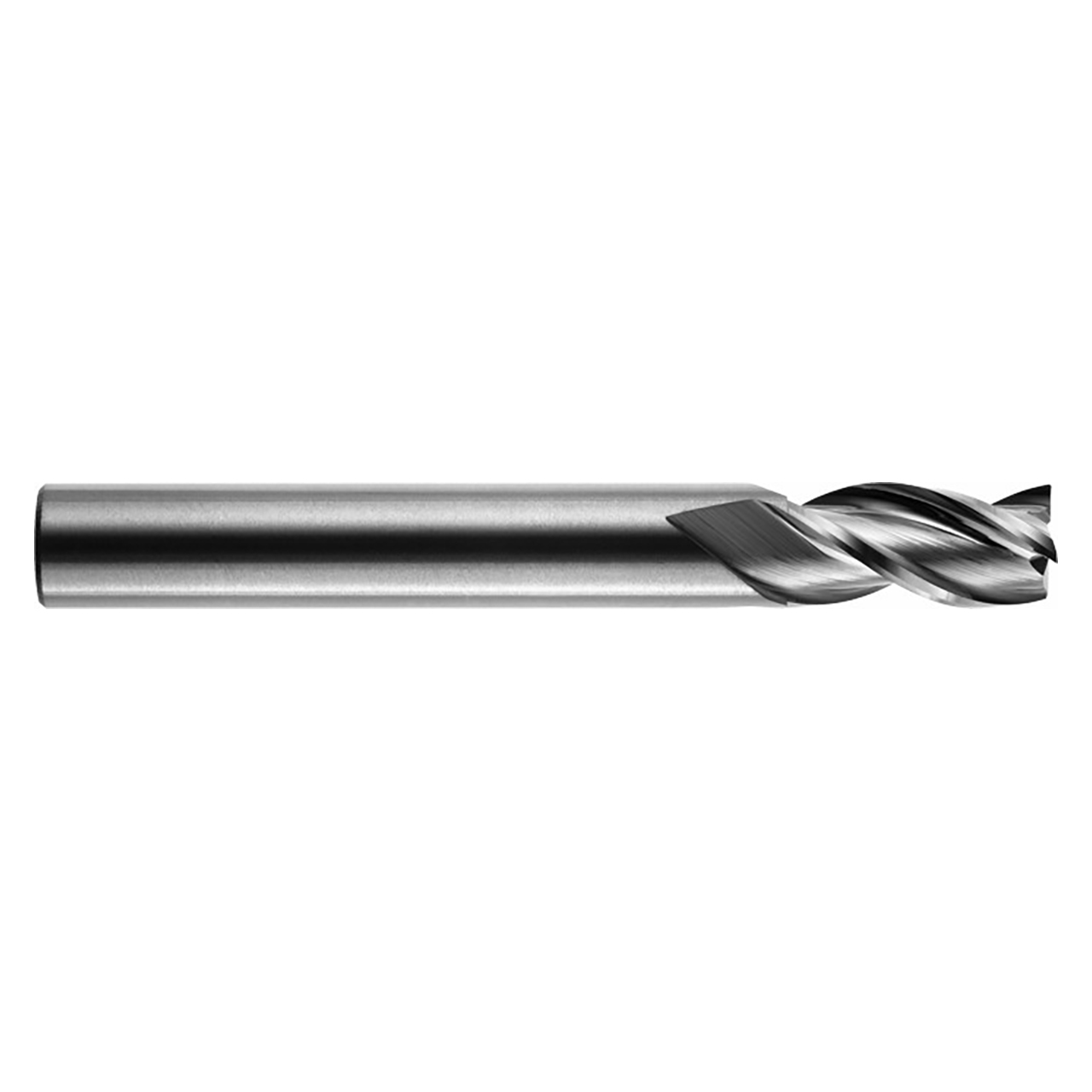

RobbJack A1-303-04 | 0.125" Diameter x 0.125" Shank x 1.500" OAL x 0.005" Chamfer 3 Flute A1-303 Uncoated Square End Mill

$27.69
Brand:
RobbJack
Diameter (Decimal Inch):
0.1250"
Maximum Cutting Diameter (Decimal Inch):
0.1240"
Shank Diameter (Decimal Inch):
0.1250"
Overall Length (Decimal Inch):
1.5000"
Chamfer Angle:
45 Degree
Maximum Depth of Cut (Decimal Inch):
0.3750"
Helix Angle:
35 Degree
Series:
A1-303
Cutting Direction:
Right Hand Cutter
Finish/Coating:
Uncoated
Number of Flutes:
3
interval quantity:
1
SKU:
25202405
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
RobbJack A1-303-04 | 0.125" Diameter x 0.125" Shank x 1.500" OAL x 0.005" Chamfer 3 Flute A1-303 Uncoated Square End Mill

Product Specifications
Manufacturer Part NumberA1-303-04
Diameter (Decimal Inch)0.125"
Number of Flutes3
SeriesA1-303
Shank Diameter (Decimal Inch)0.125"
Flute Length (Decimal Inch)0.375"
Overall Length (Decimal Inch)1.500"
Chamfer (Decimal Inch)0.005"
Chamfer Angle45 Degree
Helix Angle35 Degree
Helix DirectionRHS
Cutting DirectionRight Hand Cutter
Finish/CoatingUncoated
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Diameter (Decimal Inch):
0.1250"
Maximum Cutting Diameter (Decimal Inch):
0.1240"
Shank Diameter (Decimal Inch):
0.1250"
Overall Length (Decimal Inch):
1.5000"
Chamfer Angle:
45 Degree
Maximum Depth of Cut (Decimal Inch):
0.3750"
Helix Angle:
35 Degree
Series:
A1-303
Cutting Direction:
Right Hand Cutter
Finish/Coating:
Uncoated
Number of Flutes:
3
interval quantity:
1
