ROEMHELD DropZero Modular Zero-Point System

DropZero Modular Zero-Point System enables you to completely machine a workpiece in one setup, significantly reducing setup time and fixturing costs. With a few quick turns of a wrench, DropZero clamping modules locate, support, and securely clamp the workpiece from underneath, providing full machining access to 5 sides.Clamping modules can be mounted exactly where required, anywhere on the fixture plate. These modules fit perfectly on all of Carr Lane’s 1/2” and 5/8” modular tooling plates and blocks, but can also be used with non-modular tooling. Clamping modules elevate the workpiece for machine-spindle clearance, and are stackable for extra height.Pull-down studs must be fastened to the underside of the workpiece. Most setups require one zero-point stud (for primary two-axis location), one diamond stud (for single-axis location), and one or more floating studs (for additional support and clamping without location).

Application Information

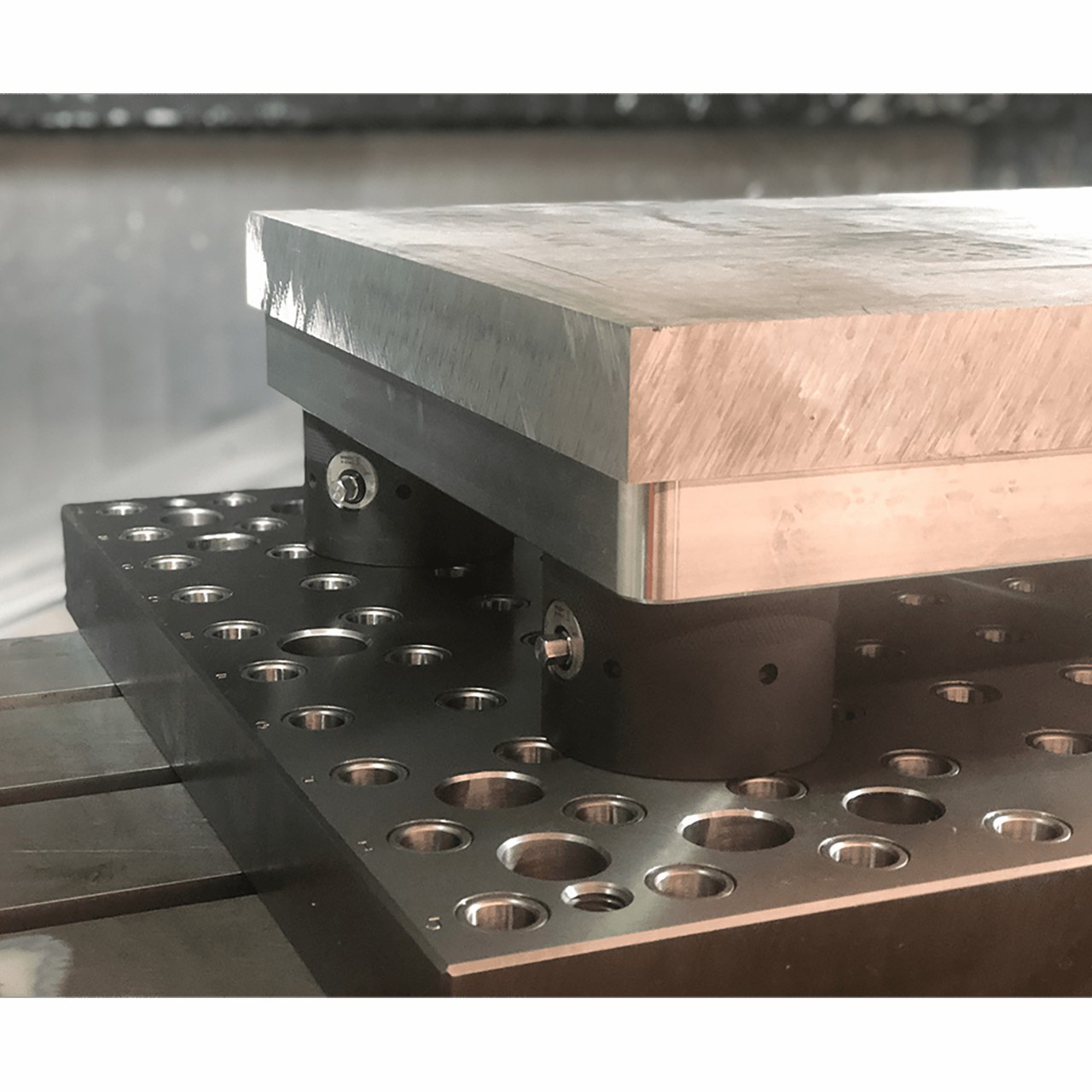

Four DropZero clamping modules hold an aluminum billet from underneath, to allow machining on 5 sides.

DropZero clamping modules fit perfectly on all of Carr Lane’s 1/2” and 5/8” modular tooling plates and blocks. Clamping modules elevate the workpiece for machine-spindle clearance, and are stackable for extra height.

Internal Clamping Mechanism

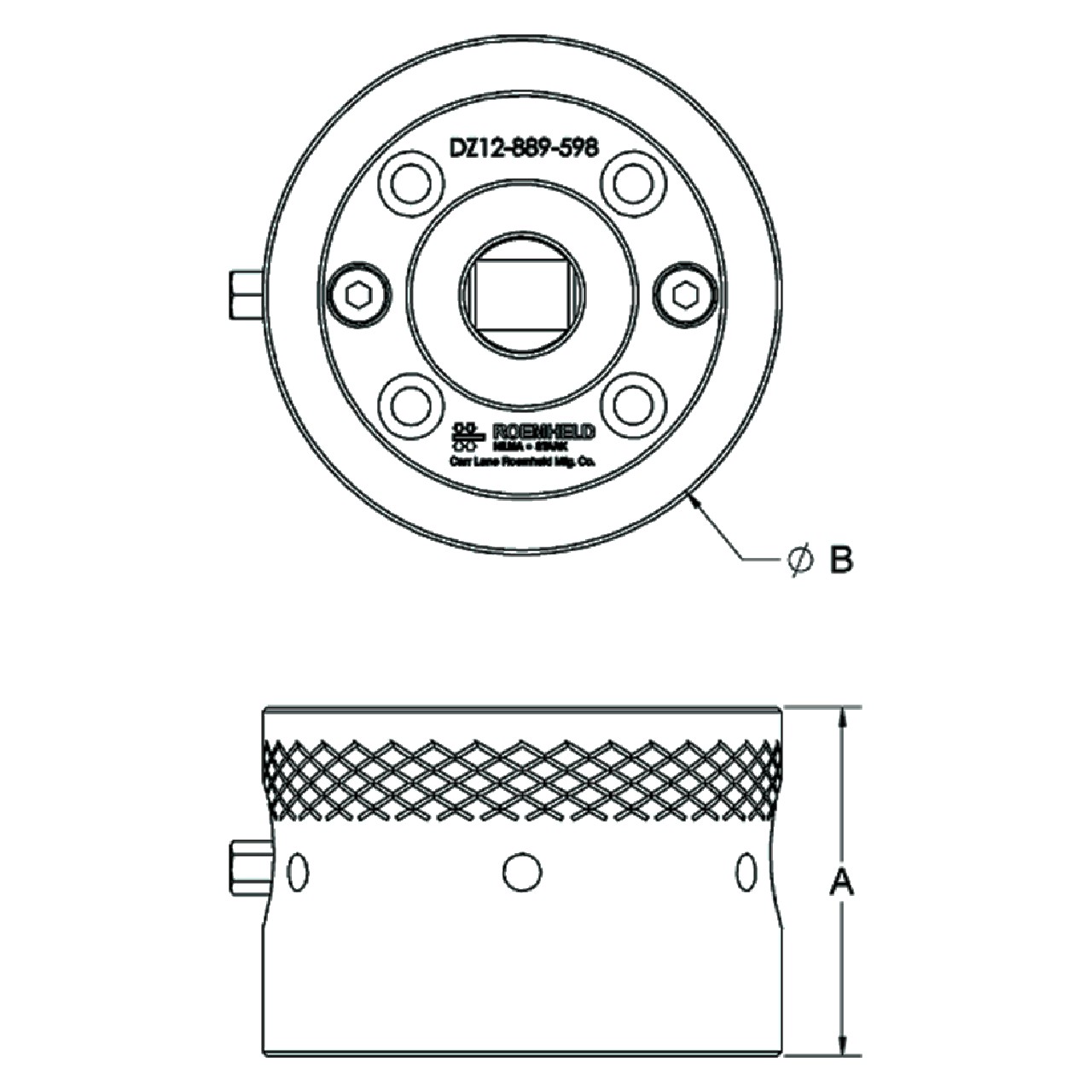

Parts Specification
