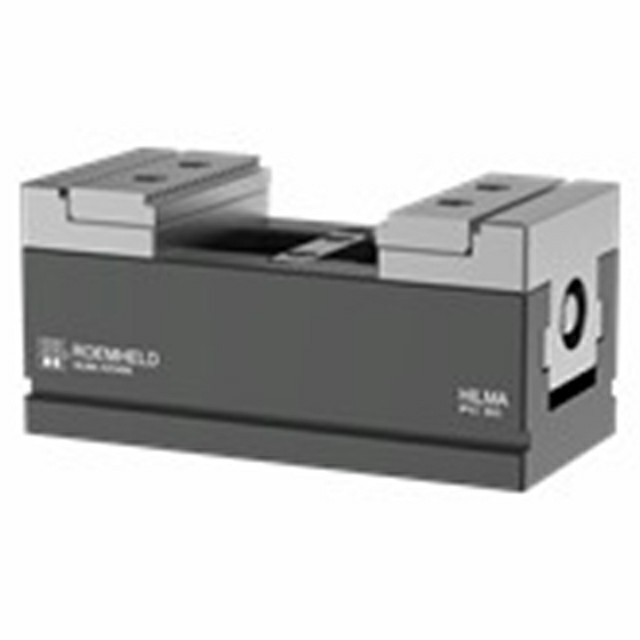

ROEMHELD PC 80 5-Axis Vises
PC80 Clamping system features a simple, compact all-steel design, and includes clamping jaws with a dovetail shaped serrated gripping feature. The all-steel design provides the highest force, most rigid, design in 5-Axis vises. The Jaw assembly is simple to remove ensuring quick and easy cleaning and maintenance. The PC80 features several mounting options including the use of competitor Zero-Point 52mm pins or the use of a Quintus Pull-Down Bolt. The sides of the base include grooves for permanent installation with clamping claws.

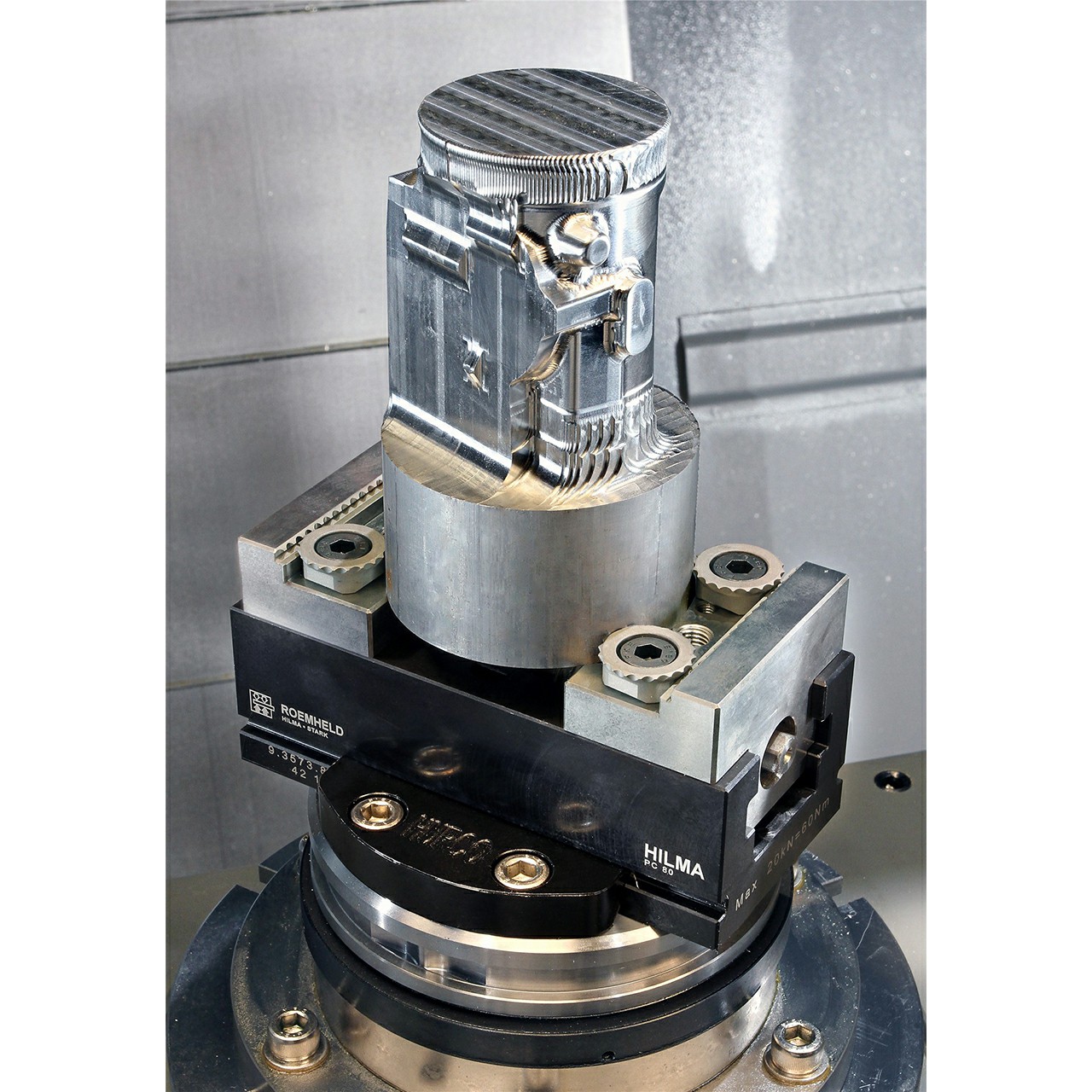

Application Information

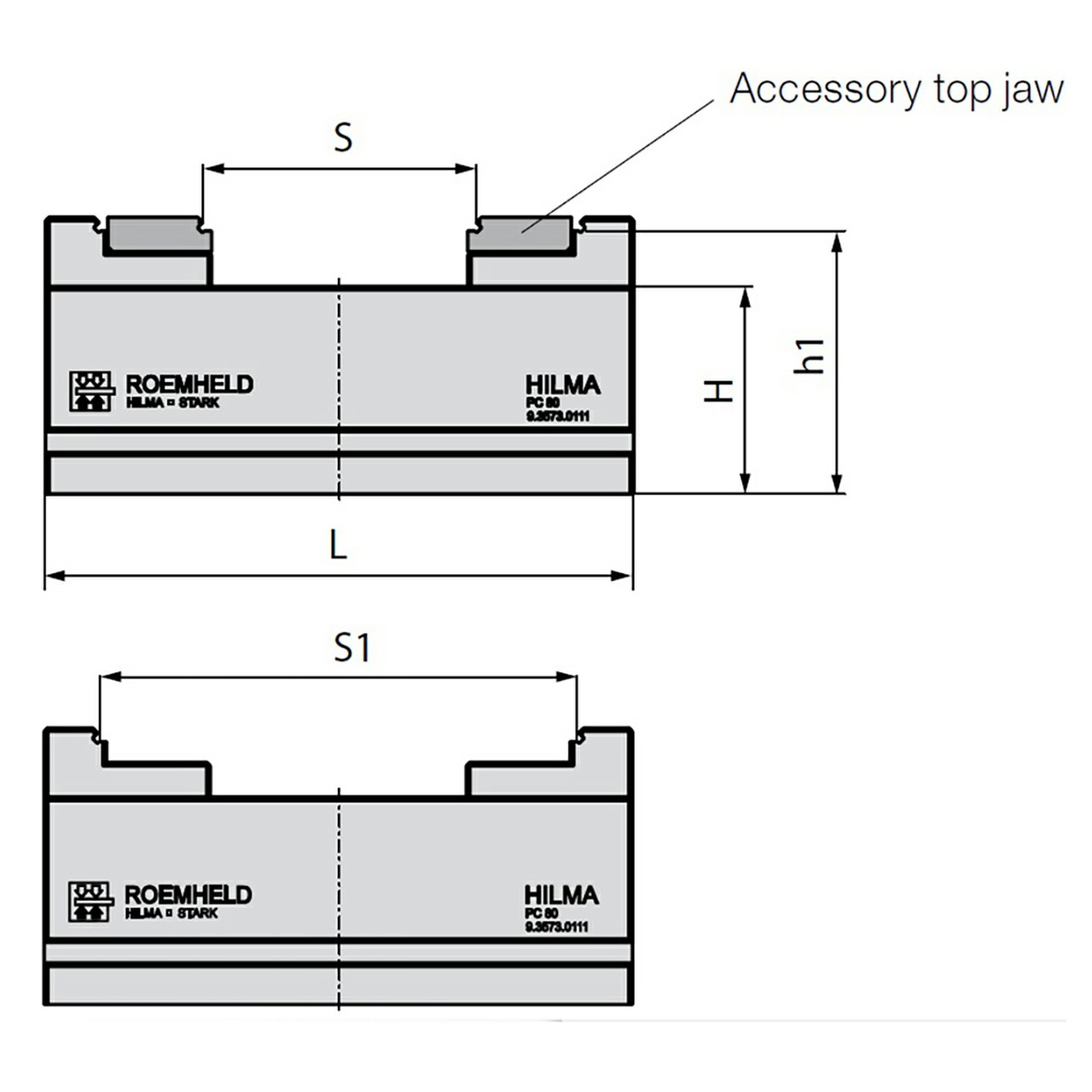

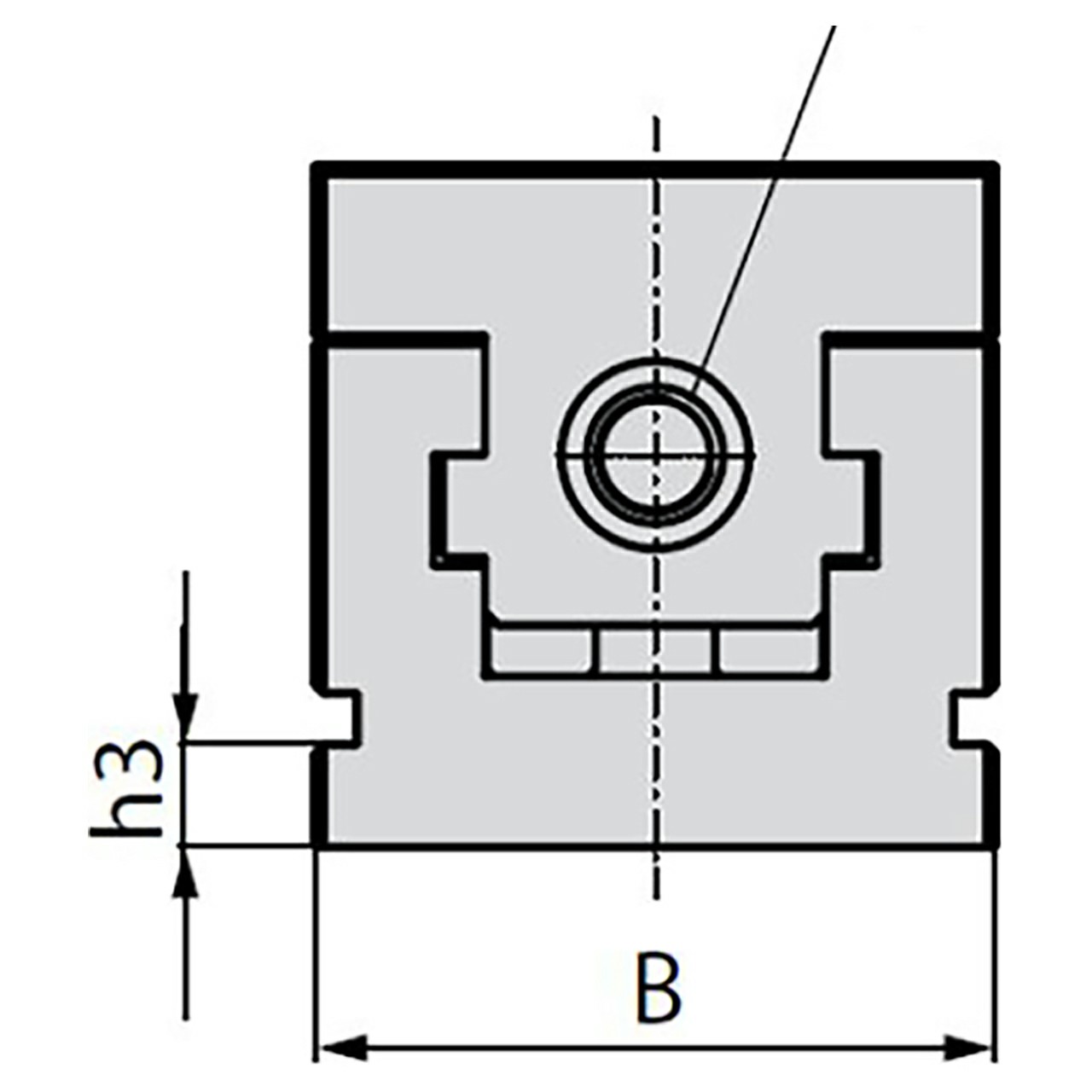

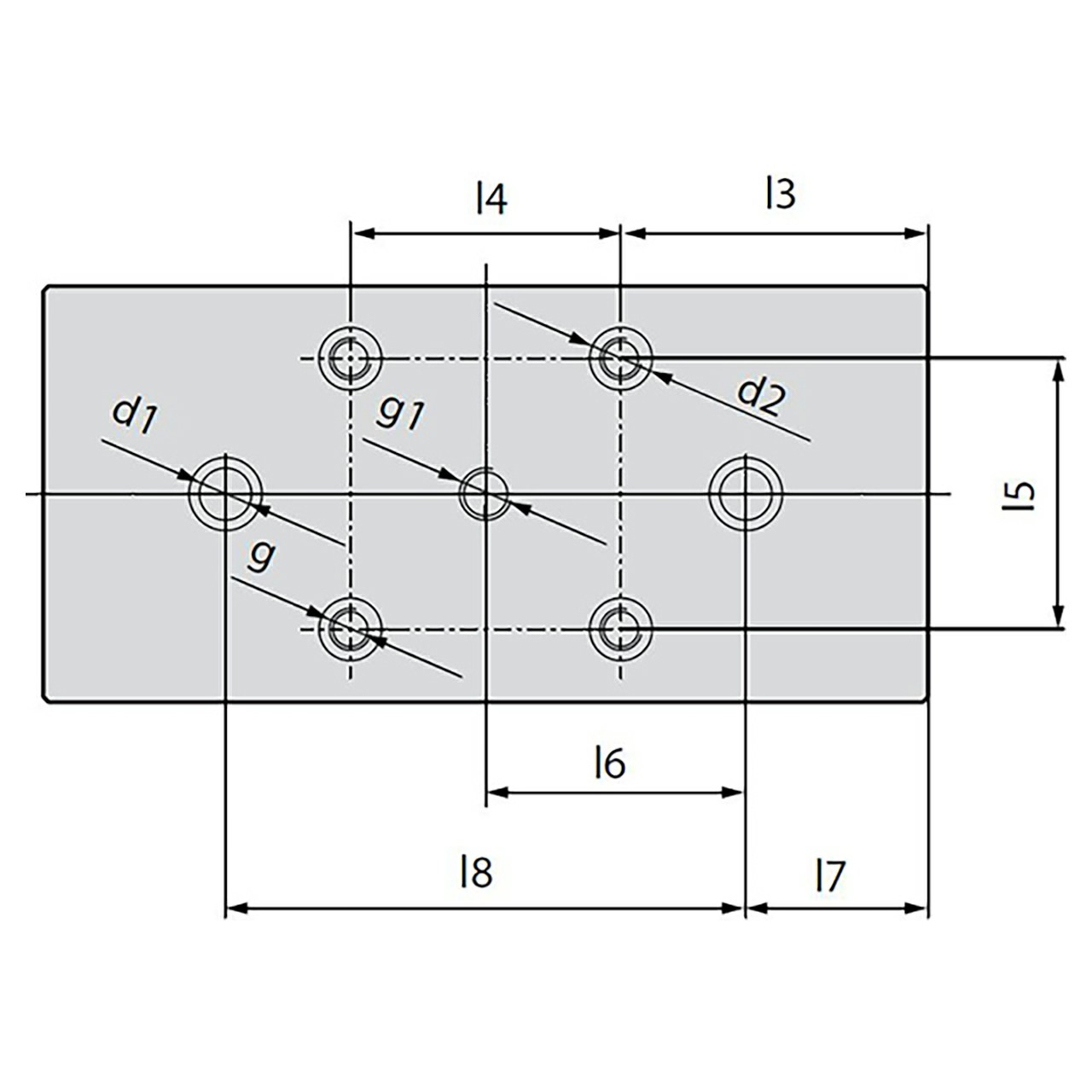

Parts Specification
| Jaw Width B (mm) | Clamping Force | Stroke (mm) | L (mm) | H (mm) | S Jaw Opening (mm) | S1 Jaw Opening (mm) | Hex (mm) | D1 (mm) | D2 (mm) | H1 (mm) | H3 (mm) | I3 (mm) | I4 ±0.01 (mm) | I5 (mm) | I6 (mm) | I7 (mm) | I8 ±0.01 (mm) | G | G1 | Weight With Jaws (lbs) |
| 80mm | 4500 lbs at 44 ft-lbs (20 kN at 60 Nm) | 62mm | 170mm | 60mm | 17 - 79mm | 75 - 139mm | 12mm | 10 F7mm | 12 H7mm | 76mm | 12mm | 59mm | 52mm | 52mm | 50mm | 35mm | 100mm | M8 | M10 x 11 | 13.2 lbs |
