Features:
- PCD for abrasive non-ferrous materials
- CBN for hard ferrous metal - 45Rc plus
- Faster speeds and feeds
- Maintains tighter tolerances
- Solid carbide body for maximum rigidity

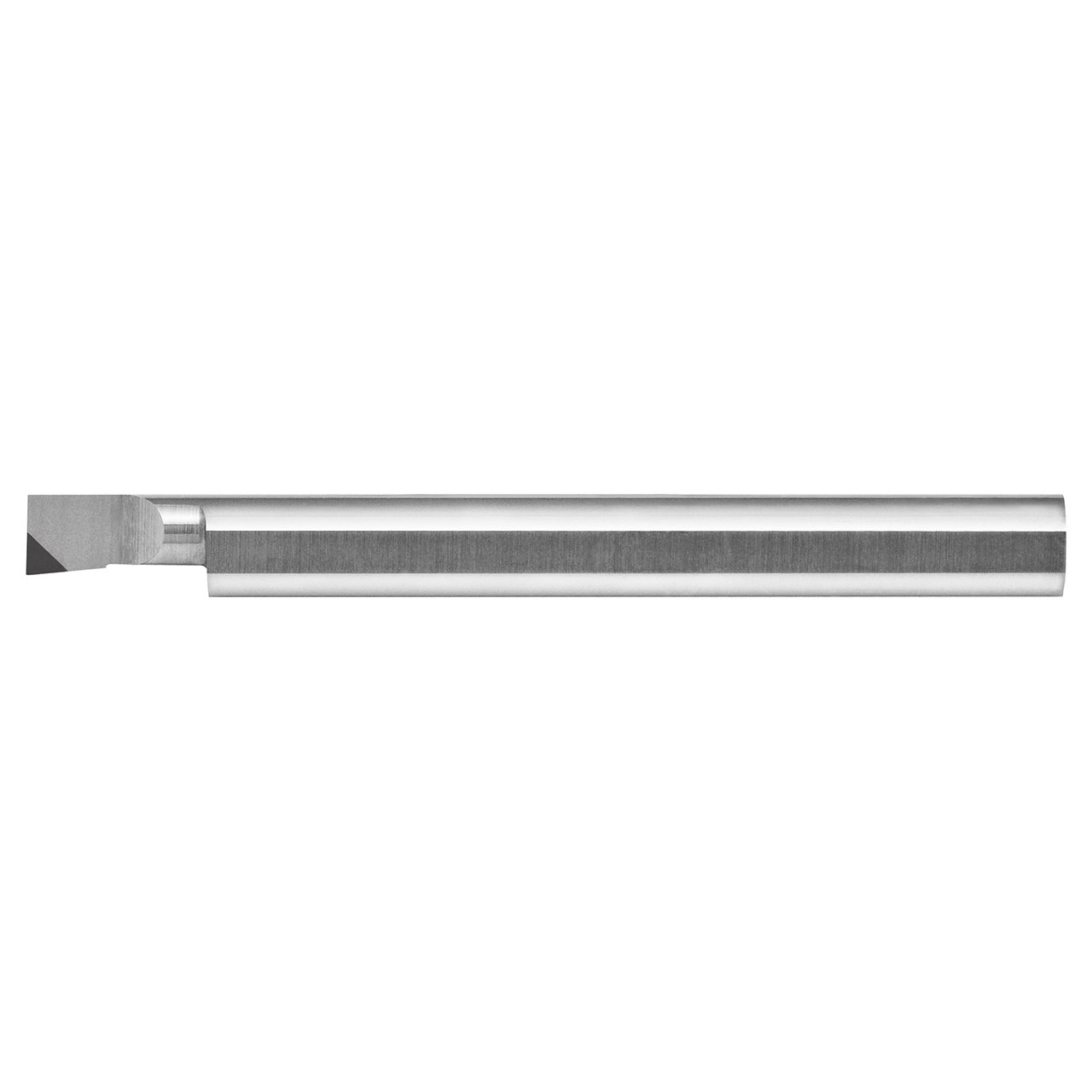

Product Specifications
| Manufacturer Part Number | PCD-B2901250 |
| Minimum Bore Diameter (Decimal Inch) | 0.290" |
| Maximum Bore Depth (Decimal Inch) | 1.250" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Overall Length (Decimal Inch) | 2.500" |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Boring Bar |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Minimum Bore Diameter (Inch):
19/64"
Minimum Bore Diameter (Decimal Inch):
0.2900"
Minimum Bore Diameter (mm):
7.37mm
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.2500"
Maximum Bore Depth (mm):
31.75mm
Material:
Solid Carbide
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Finish/Coating:
Uncoated
interval quantity:
1
