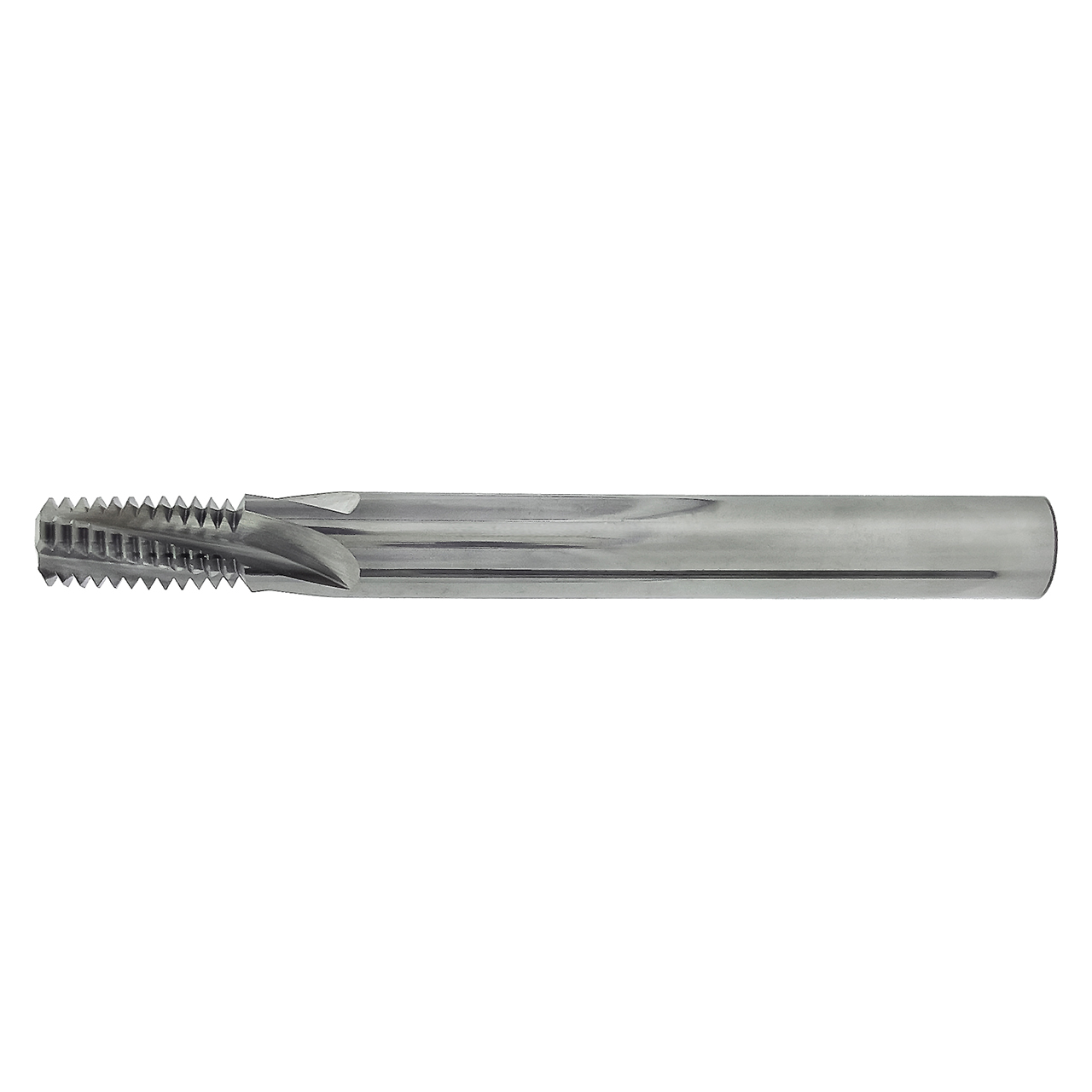

Scientific Cutting Tools TM620-11.5NPSF-H | 1 to 2 - 11.5" Thread Pitch x 0.620" Diameter x 0.625" Shank x 4.000" OAL 4 Flute Uncoated Solid Carbide Helical Flute Thread Mill

$257.20
Brand:
Scientific Cutting Tools
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6200"
Cutter Diameter (mm):
15.75mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
4
Length of Cut (Inch):
1-16/93"
Length of Cut (Decimal Inch):
1.1720"
Length of Cut (mm):
29.77mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
interval quantity:
1
SKU:
17980815
Weight:
0.56 LBS
Shipping:
Free Shipping
Scientific Cutting Tools TM620-11.5NPSF-H | 1 to 2 - 11.5" Thread Pitch x 0.620" Diameter x 0.625" Shank x 4.000" OAL 4 Flute Uncoated Solid Carbide Helical Flute Thread Mill

Features:

  • Cuts NPSF and NPSI straight pipe dryseal threads
  • Helical flute reduces side cutting pressure
  • Precision ground for maximum concentricity

Product Specifications
Manufacturer Part NumberTM620-11.5NPSF-H
Cutting Diameter (Decimal Inch)0.620"
Shank Diameter (Decimal Inch)0.625"
Overall Length (Decimal Inch)4.000"
Length of Cut (Decimal Inch)1.172"
Number of Flute4
Thread Pitch1 to 2 - 11.5"
MaterialSolid Carbide
CoatingUncoated
Product TypeHelical Flute Thread Mill
