Seco Tools 00023467 | 3.00mm Diameter x 3.00mm Shank x 0.20mm Radius x 60.00mm OAL 3 Flute 40 Degree Helix Angle Diamond Coated Carbide Corner Radius End Mill

$148.52
Brand:
Seco Tools
Mill Diameter (Inch):
2/17"
Mill Diameter (Decimal Inch):
0.1181"
Mill Diameter (mm):
3.00mm
Number of Flutes:
3
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
Diamond
Shank Diameter (Inch):
2/17"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3.00mm
Overall Length (Inch):
2-21/58"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25268551
Weight:
0.01 LBS
Shipping:
Free Shipping
Seco Tools 00023467 | 3.00mm Diameter x 3.00mm Shank x 0.20mm Radius x 60.00mm OAL 3 Flute 40 Degree Helix Angle Diamond Coated Carbide Corner Radius End Mill

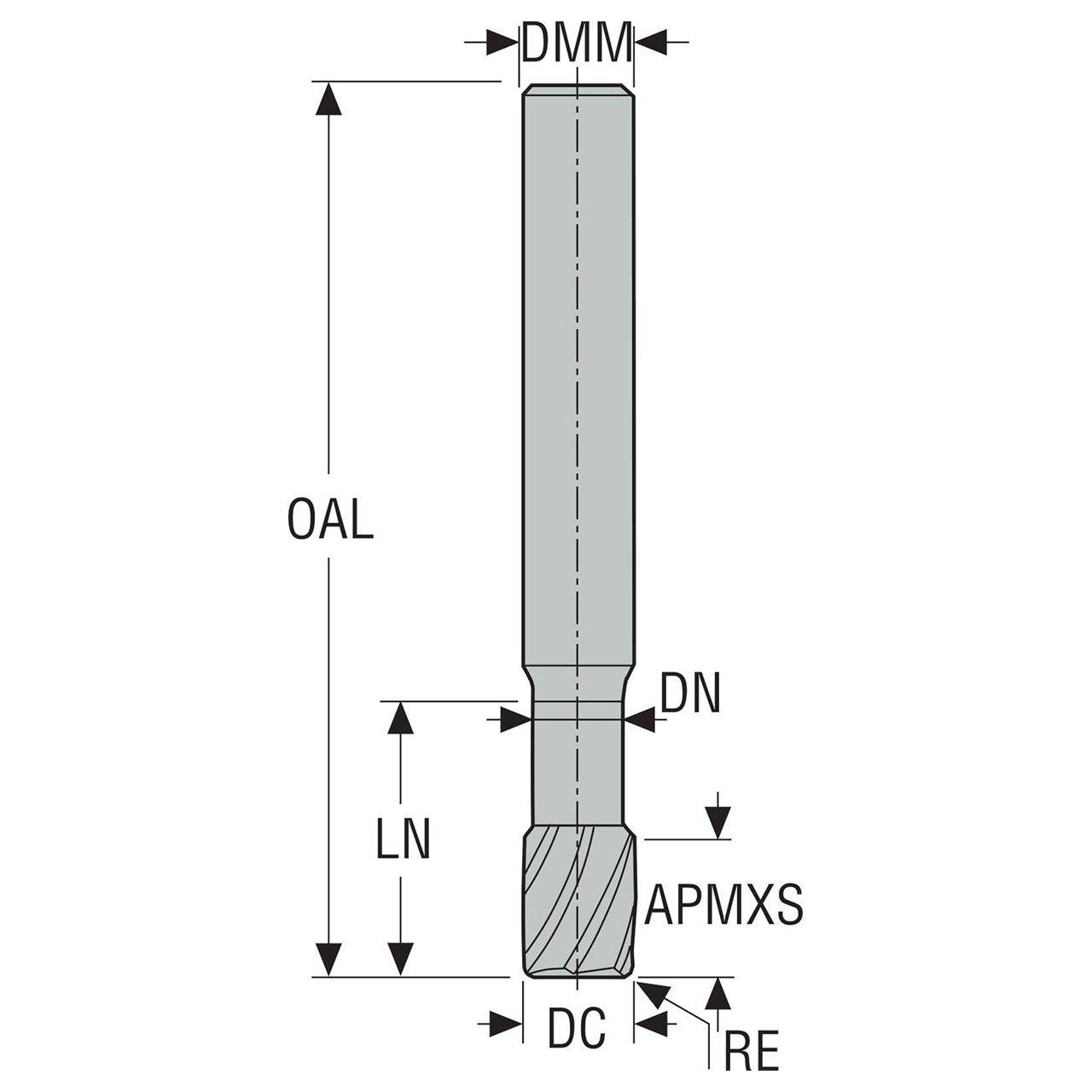

Product Specifications
Manufacturer Part Number00023467
Cutting Diameter (mm)3.00mm
Cutting Diameter 1 (mm)3.00mm
Connection Diameter Machine Side (mm)3.00mm
Shank Diameter (mm)3.00mm
Neck Diameter (mm)2.90mm
Maximum Helical Interpolation Hole Diameter (mm)5.58mm
Minimum Helical Interpolation Hole Diameter (mm)3.90mm
Overall Length (mm)60.00mm
Neck Length (mm)25.00mm
Neck Length 1 (mm)25.00mm
Cutting Edge Effective Length (mm)5.00mm
Functional Width (Decimal Inch)0.669"
Functional Width (mm)17.00mm
Maximum Depth of Cut (mm)5.00mm
Corner Radius (mm)0.20mm
Shank TypeCylindrical
Center Cutting CapabilityYes
Cutting Edge Count3
Cutting Geometry TypeJD630
Cutting Geometry Type TechnicalJD630
Face Cutting Edge Count3
Flute Helix Angle (Degree)40 Degree
Flute Helix DirectionRight
Rake Radial Angle (Degree)14 Degree
Axial Rake Angle (Degree)40 Degree
Cutting DirectionRight Hand
Internal Coolant ChannelNo
Tool Cutting Edge Angle (Degree)90 Degree
Number of Flute3
MaterialCarbide
CoatingDiamond
Product TypeCorner Radius End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Mill Diameter (Inch):
2/17"
Mill Diameter (Decimal Inch):
0.1181"
Mill Diameter (mm):
3.00mm
Number of Flutes:
3
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
Diamond
Shank Diameter (Inch):
2/17"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3.00mm
Overall Length (Inch):
2-21/58"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Cutting Direction:
Right Hand
interval quantity:
1
