Product Specifications
| Manufacturer Part Number | 02422262 |
| Cutting Diameter (Decimal Inch) | 1.575" |
| Cutting Diameter (mm) | 40.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.949" |
| Connection Diameter Machine Side (mm) | 24.10mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.969" |
| Maximum Cutting Diameter (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 0.949" |
| Shank Diameter (mm) | 24.10mm |
| Protruding Length (Decimal Inch) | 1.890" |
| Protruding Length (mm) | 48.00mm |
| Shank Length (Decimal Inch) | 4.000" |
| Shank Length (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 6.024" |
| Overall Length (mm) | 153.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.177" |
| Maximum Depth of Cut (mm) | 4.50mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 15800 rpm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | SE.X09T3 |
| Cutting Item Material Type | Steel |
| Shank Type | Bridgeport |
| Insert Shape Code | S |

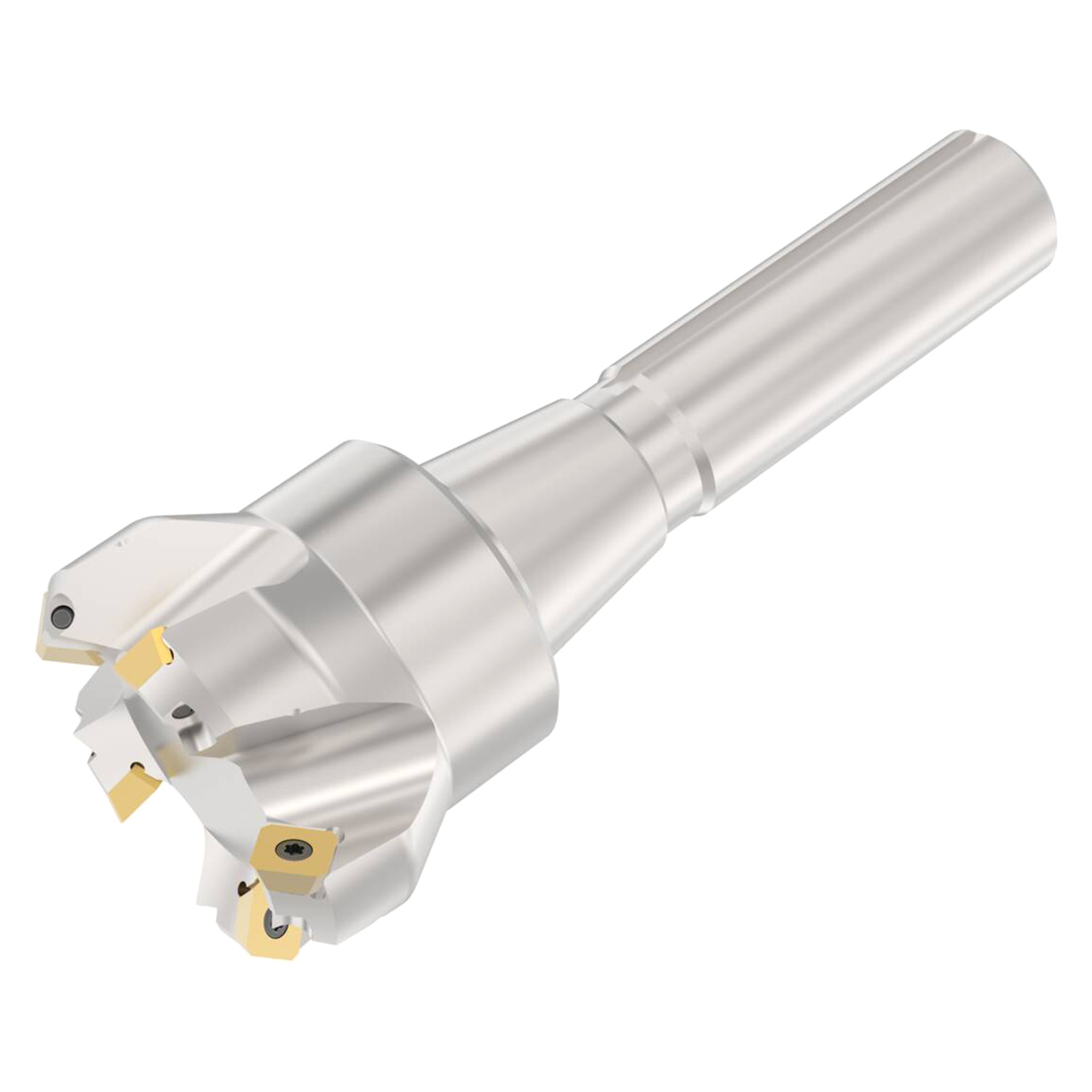

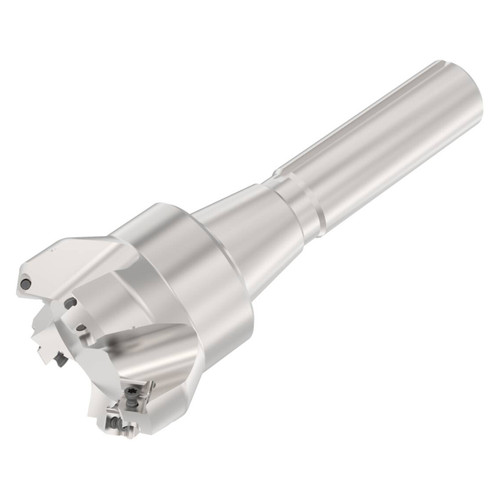

| Product Type | Indexable Chamfer & Angle End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-37/64"
Cutting Diameter (Decimal Inch):
1.5700"
Cutting Diameter (mm):
40.00mm
Shank Type:
Bridgeport
Overall Length (Inch):
6-1/32"
Overall Length (Decimal Inch):
6.0200"
Overall Length (mm):
153.00mm
