Product Specifications
| Manufacturer Part Number | 02585320 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.362" |
| Minimum Cutting Diameter Internal (mm) | 60.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Head Length (Decimal Inch) | 1.142" |
| Head Length (mm) | 29.00mm |
| Shank Width (Decimal Inch) | 0.689" |
| Shank Width (mm) | 17.50mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.787" |
| Height of Tool Holder Shank (mm) | 20.00mm |
| Functional Height (Decimal Inch) | 0.630" |
| Functional Height (mm) | 16.00mm |
| Mounting Hole Distance (Decimal Inch) | 0.984" |
| Mounting Hole Distance (mm) | 25.00mm |
| Functional Width (Decimal Inch) | 0.984" |
| Functional Width (mm) | 25.00mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle Code | R |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Insert Shape Code | T |
| Shank Type | Cartridges |

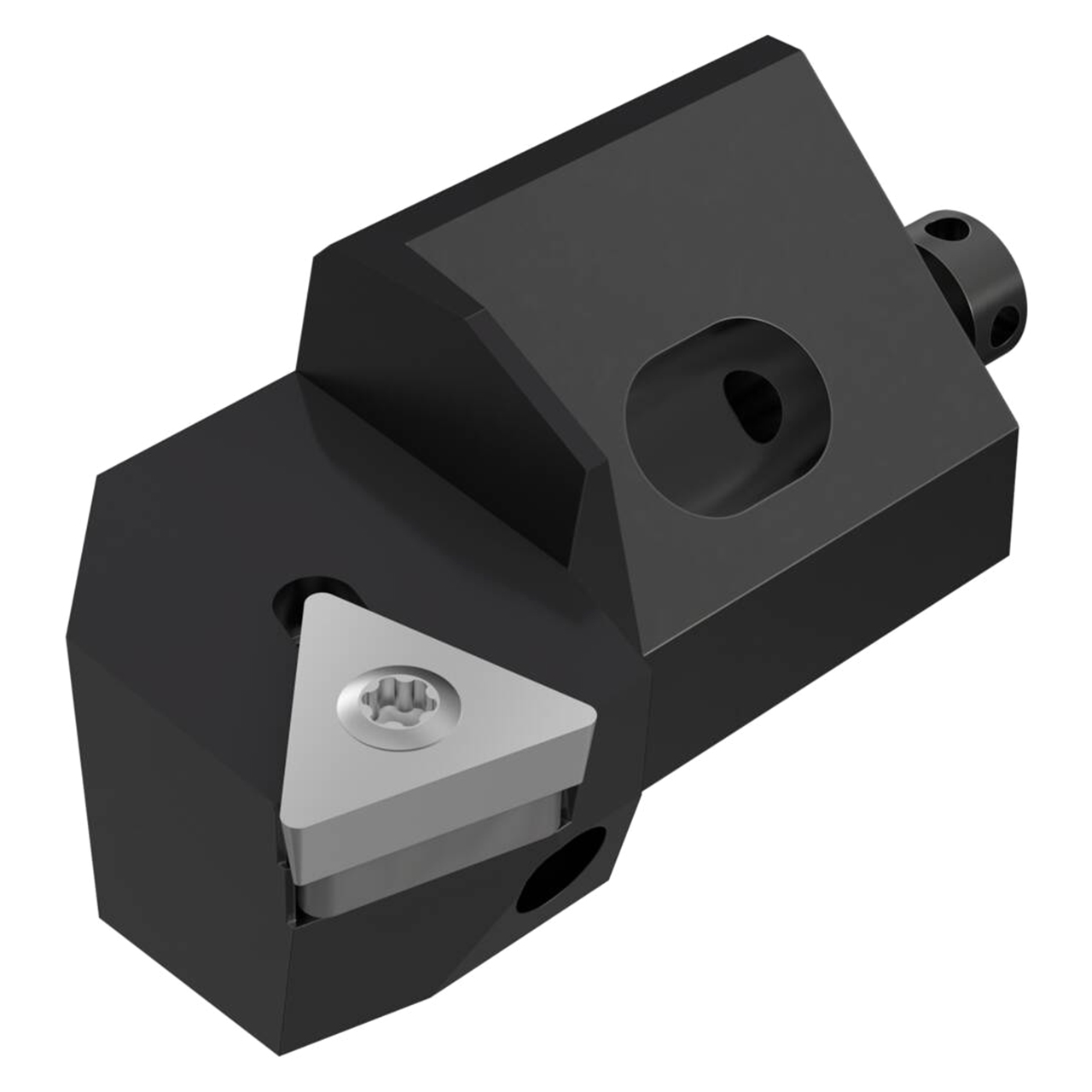

| Product Type | Indexable Turning Cartridge |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
