Product Specifications
| Manufacturer Part Number | 02595780 |
| Cutting Diameter (mm) | 19.00mm |
| Minimum Cutting Diameter Internal (mm) | 18.80mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Flange Diameter (mm) | 42.00mm |
| Shank Diameter (mm) | 25.00mm |
| Shank Length (mm) | 56.00mm |
| Usable Length (mm) | 38.00mm |
| Overall Length (mm) | 129.00mm |
| Insert Width (Decimal Inch) | 0.323" |
| Insert Width (mm) | 8.20mm |
| Adjustment Limit Minimum (mm) | 0.10mm |
| Adjustment Limit Maximum (mm) | 1.50mm |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

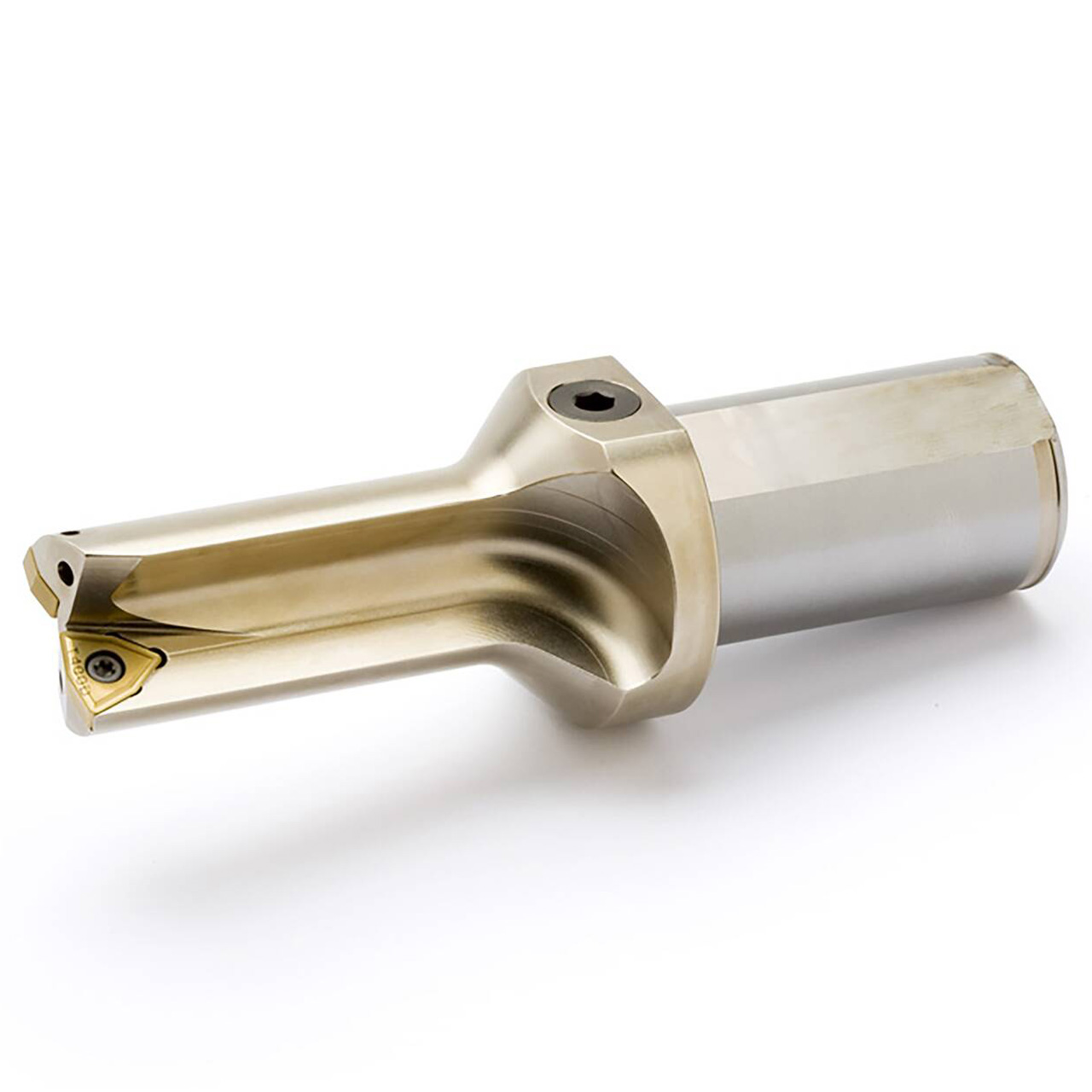

| Product Type | Indexable Insert Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Drill Diameter (Inch):
3/4"
Drill Diameter (Decimal Inch):
0.7480"
Drill Diameter (mm):
19.00mm
Shank Diameter (Inch):
63/64"
Shank Diameter (Decimal Inch):
0.9800"
Shank Diameter (mm):
25.00mm
interval quantity:
1
