Product Specifications
| Manufacturer Part Number | 02753121 |
| Body Diameter 1 (Decimal Inch) | 0.827" |
| Body Diameter 1 (mm) | 21.00mm |
| Body Diameter 2 (Decimal Inch) | 1.063" |
| Body Diameter 2 (mm) | 27.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.236" |
| Connection Bore Diameter (mm) | 6.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Maximum Connection Bore Diameter (mm) | 6.00mm |
| Thread Diameter Size | M5x0.8 |
| Body Length (Decimal Inch) | 1.929" |
| Body Length (mm) | 49.00mm |
| Functional Length (Decimal Inch) | 1.535" |
| Functional Length (mm) | 39.00mm |
| Minimum Functional Length (Decimal Inch) | 1.142" |
| Protruding Length (Decimal Inch) | 2.559" |
| Protruding Length (mm) | 65.00mm |
| Clamping Length (Decimal Inch) | 0.866" |
| Clamping Length (mm) | 22.00mm |
| Overall Length (Decimal Inch) | 3.455" |
| Overall Length (mm) | 87.75mm |
| Connection Bore Depth (mm) | 37.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Radial Location (Decimal Inch) | 0.413" |
| Radial Location (mm) | 10.50mm |

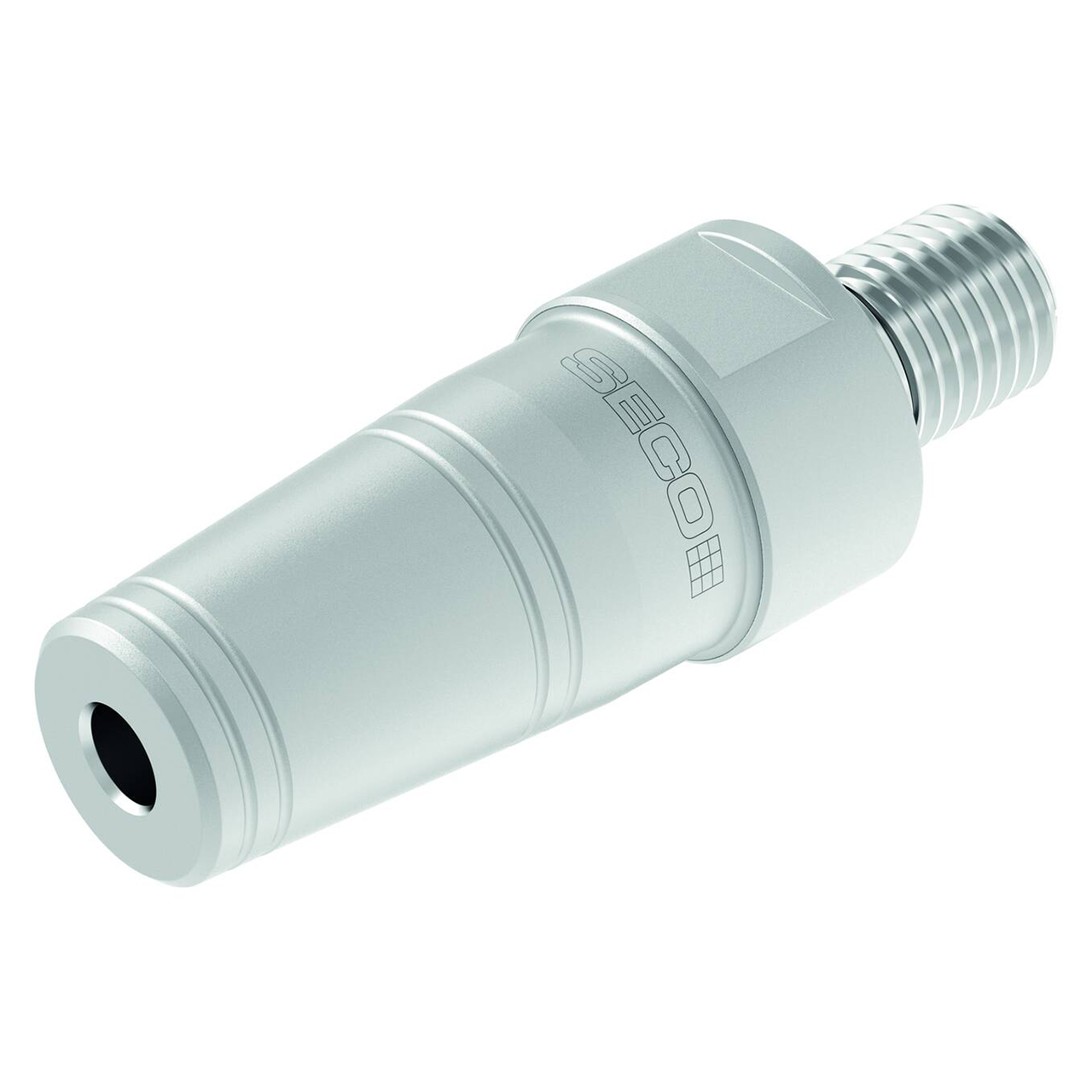

| Product Type | Shrink-Fit Tool Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Decimal Inch):
0.8268"
Body Diameter (mm):
21.00mm
Overall Length (Decimal Inch):
3.4547"
Overall Length (mm):
87.75mm
