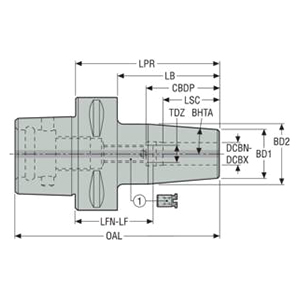

Product Specifications
| Manufacturer Part Number | 02753187 |
| Body Diameter 1 (Decimal Inch) | 1.299" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Decimal Inch) | 1.654" |
| Body Diameter 2 (mm) | 42.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.709" |
| Connection Bore Diameter (mm) | 18.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.709" |
| Minimum Connection Bore Diameter (mm) | 18.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.709" |
| Maximum Connection Bore Diameter (mm) | 18.00mm |
| Thread Diameter Size | M12x1 |
| Body Length (Decimal Inch) | 2.244" |
| Body Length (mm) | 57.00mm |
| Functional Length (Decimal Inch) | 2.008" |
| Functional Length (mm) | 51.00mm |
| Minimum Functional Length (Decimal Inch) | 1.614" |
| Protruding Length (Decimal Inch) | 3.543" |
| Protruding Length (mm) | 90.00mm |
| Clamping Length (Decimal Inch) | 1.535" |
| Clamping Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 5.433" |
| Overall Length (mm) | 138.00mm |
| Connection Bore Depth (mm) | 50.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.709" |
| Radial Location (mm) | 18.00mm |
| Product Type | Shrink-Fit Tool Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Decimal Inch):
1.2992"
Body Diameter (mm):
33.00mm
Overall Length (Decimal Inch):
5.4331"
Overall Length (mm):
138.00mm
