Product Specifications
| Manufacturer Part Number | 02807937 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 2.000" |
| Connection Diameter Machine Side (mm) | 50.80mm |
| Shank Diameter (Decimal Inch) | 2.000" |
| Shank Diameter (mm) | 50.80mm |
| Thread Diameter Size | G 1/4 |
| Body Length (Decimal Inch) | 14.500" |
| Body Length (mm) | 368.30mm |
| Functional Length (Decimal Inch) | 22.500" |
| Functional Length (mm) | 571.50mm |
| Shank Length (Decimal Inch) | 8.000" |
| Shank Length (mm) | 203.20mm |
| Overall Length (Decimal Inch) | 22.791" |
| Overall Length (mm) | 578.90mm |
| Shank Width (Decimal Inch) | 1.935" |
| Shank Width (mm) | 49.15mm |
| Coolant Entry Thread Size | G 1/4 |

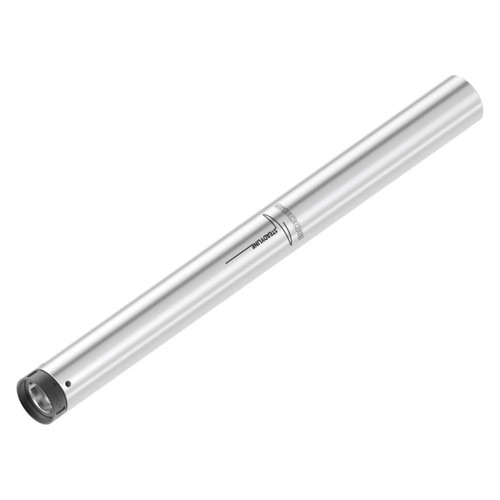

| Product Type | Collet Chuck Extension |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
