Product Specifications
| Manufacturer Part Number | 02826556 |
| Cutting Diameter (mm) | 65.60mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Cutting Diameter (mm) | 80.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 158.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 145.60mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Depth of Key Way (mm) | 7.00mm |
| Keyway Width (mm) | 12.40mm |
| Programming Radius (mm) | 3.32mm |
| Uncut Thickness (mm) | 0.87 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Orthogonal Angle (Degree) | -13 Degree |
| Axial Rake Angle (Degree) | -6.5 Degree |
| Tool Cutting Edge Angle (Degree) | 21.3 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 21 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 21 Degree |
| Maximum Ramping Angle (Degree) | 0.4 Degree |
| Maximum Rotational Speed (rpm) | 9600 rpm |
| Insert Shape Code | 218.21 |
| Shank Type | Arbor |

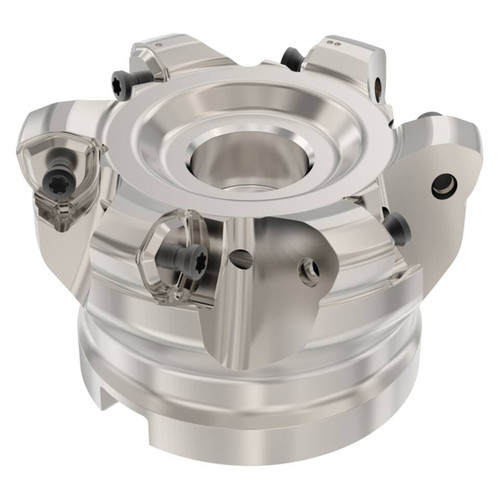

| Product Type | Indexable High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-7/12"
Cutting Diameter (Decimal Inch):
2.5827"
Cutting Diameter (mm):
65.60mm
Maximum Depth of Cut (Inch):
1/14"
Maximum Depth of Cut (Decimal Inch):
0.0709"
Maximum Depth of Cut (mm):
1.80mm
Shank Type:
Arbor
