Product Specifications

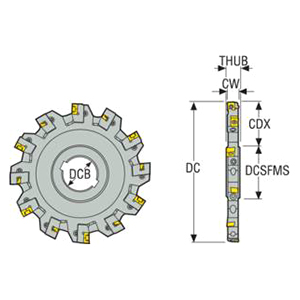

| Manufacturer Part Number | 02834805 |
| Cutting Diameter (Decimal Inch) | 4.000" |
| Cutting Diameter (mm) | 101.60mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.551" |
| Contact Surface Diameter Machine Side (mm) | 39.40mm |
| Functional Length (Decimal Inch) | 0.470" |
| Functional Length (mm) | 11.94mm |
| Keyway Width (Decimal Inch) | 0.250" |
| Keyway Width (mm) | 6.35mm |
| Minimum Cutting Width (Decimal Inch) | 0.312" |
| Minimum Cutting Width (mm) | 7.92mm |
| Maximum Cutting Width (Decimal Inch) | 0.394" |
| Maximum Depth of Cut (Decimal Inch) | 0.394" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Maximum Cutting Depth (Decimal Inch) | 1.102" |
| Maximum Cutting Depth (mm) | 28.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 9400 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0504 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Depth of Cut (Inch):
37/94"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Cutter Diameter (Inch):
101-3/5"
Cutter Diameter (Decimal Inch):
4.0000"
Cutter Diameter (mm):
101.60mm
interval quantity:
1
