Product Specifications
| Manufacturer Part Number | 02845456 |
| Body Diameter 1 (Decimal Inch) | 1.890" |
| Body Diameter 1 (mm) | 48.00mm |
| Body Diameter 2 (Decimal Inch) | 2.249" |
| Body Diameter 2 (mm) | 57.13mm |
| Body Diameter 3 (Decimal Inch) | 2.067" |
| Body Diameter 3 (mm) | 52.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.984" |
| Connection Bore Diameter (mm) | 25.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Thread Diameter Size | M16x1 |
| Body Length (Decimal Inch) | 2.323" |
| Body Length (mm) | 59.00mm |
| Functional Length (Decimal Inch) | 1.496" |
| Functional Length (mm) | 38.00mm |
| Minimum Functional Length (Decimal Inch) | 1.102" |
| Protruding Length (Decimal Inch) | 3.347" |
| Protruding Length (mm) | 85.00mm |
| Clamping Length (Decimal Inch) | 1.850" |
| Clamping Length (mm) | 47.00mm |
| Overall Length (Decimal Inch) | 4.606" |
| Overall Length (mm) | 117.00mm |
| Connection Bore Depth (mm) | 58.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.984" |
| Radial Location (mm) | 25.00mm |

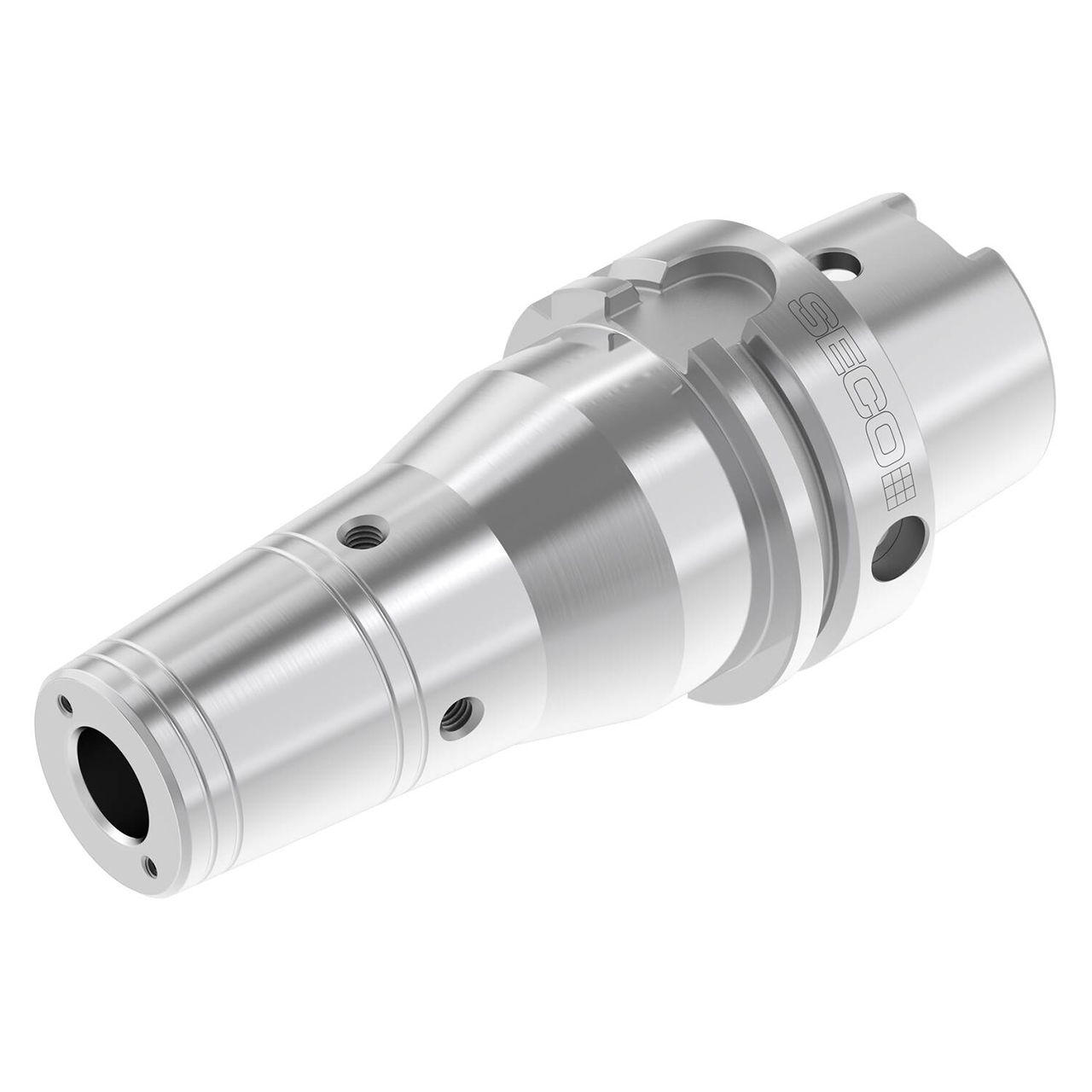

| Product Type | Shrink-Fit Tool Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Overall Length (Inch):
4-20/33"
Overall Length (Decimal Inch):
4.6060"
Overall Length (mm):
117.00mm
