Product Specifications
| Manufacturer Part Number | 02870717 |
| Body Diameter (Decimal Inch) | 1.970" |
| Body Diameter (mm) | 50.04mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.250" |
| Connection Diameter Workpiece Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 4.000" |
| Body Length (mm) | 101.60mm |
| Functional Length (Decimal Inch) | 4.750" |
| Functional Length (mm) | 120.65mm |
| Maximum Clamping Length (Decimal Inch) | 0.945" |
| Maximum Clamping Length (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 7.443" |
| Overall Length (mm) | 189.05mm |
| Flange Thickness (Decimal Inch) | 0.236" |
| Flange Thickness (mm) | 5.99mm |
| Data Chip Provision | 1 |

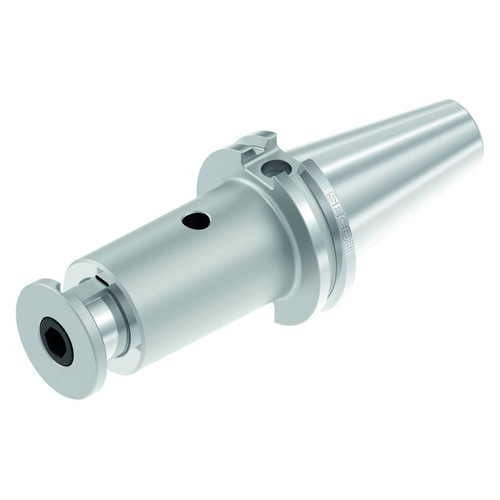

| Product Type | Disc Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
