Product Specifications
| Manufacturer Part Number | 02904866 |
| Body Diameter 1 (Decimal Inch) | 1.732" |
| Body Diameter 1 (mm) | 44.00mm |
| Body Diameter 2 (Decimal Inch) | 2.092" |
| Body Diameter 2 (mm) | 53.13mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Minimum Connection Bore Diameter (mm) | 19.05mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Thread Diameter Size | M16x1 |
| Body Length (Decimal Inch) | 2.451" |
| Body Length (mm) | 62.25mm |
| Body Length 1 (Decimal Inch) | 2.451" |
| Body Length 1 (mm) | 62.25mm |
| Functional Length (Decimal Inch) | 2.136" |
| Functional Length (mm) | 54.25mm |
| Minimum Functional Length (Decimal Inch) | 1.742" |
| Protruding Length (Decimal Inch) | 3.750" |
| Protruding Length (mm) | 95.25mm |
| Clamping Length (Decimal Inch) | 1.614" |
| Clamping Length (mm) | 41.00mm |
| Overall Length (Decimal Inch) | 5.640" |
| Overall Length (mm) | 143.25mm |
| Connection Bore Depth (mm) | 52.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.847" |
| Radial Location (mm) | 21.50mm |

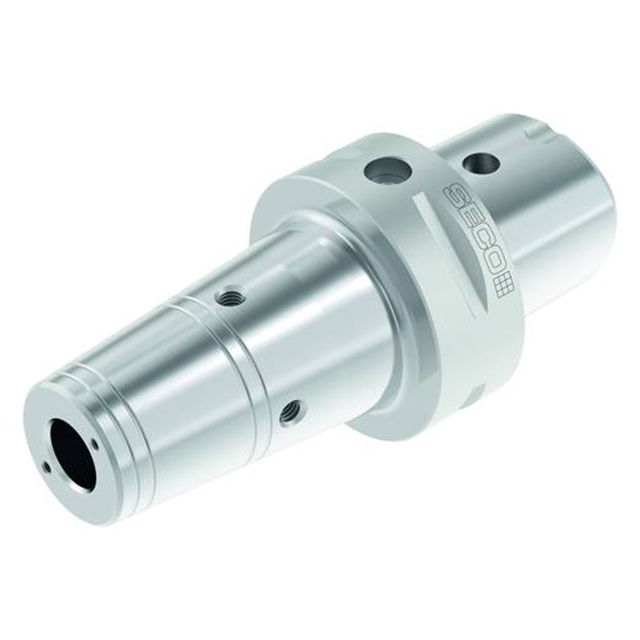

| Product Type | Shrink-Fit Tool Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Decimal Inch):
1.7323"
Body Diameter (mm):
44.00mm
Body Length (Decimal Inch):
2.4508"
Body Length (mm):
62.25mm
Overall Length (Decimal Inch):
5.6398"
Overall Length (mm):
143.25mm
