Product Specifications
| Manufacturer Part Number | 02980641 |
| Cutting Diameter (Decimal Inch) | 1.844" |
| Cutting Diameter (mm) | 46.84mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Body Diameter (Decimal Inch) | 1.000" |
| Body Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 3.978" |
| Functional Length (mm) | 101.03mm |
| Protruding Length (Decimal Inch) | 2.858" |
| Protruding Length (mm) | 72.58mm |
| Shank Length (Decimal Inch) | 2.697" |
| Shank Length (mm) | 68.50mm |
| Overall Length (Decimal Inch) | 5.118" |
| Overall Length (mm) | 130.00mm |
| Cutting Width (Decimal Inch) | 0.823" |
| Cutting Width (mm) | 20.90mm |
| Maximum Depth of Cut (Decimal Inch) | 0.823" |
| Maximum Depth of Cut (mm) | 20.90mm |
| Maximum Cutting Depth (Decimal Inch) | 0.389" |
| Maximum Cutting Depth (mm) | 9.87mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -11.5 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 9800 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LNK.0605 / LNK.0805 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |

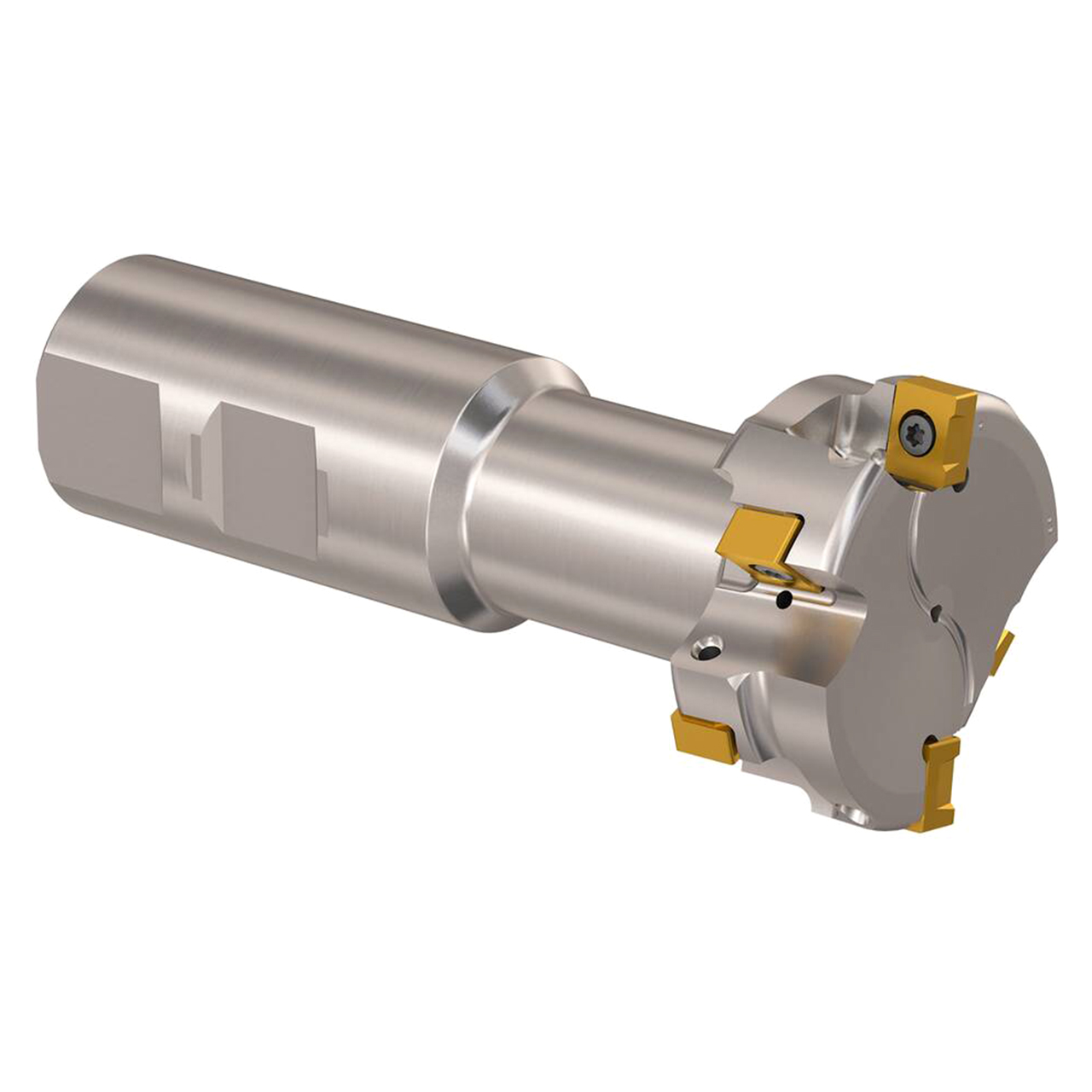

| Product Type | Indexable T-Slot Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-27/32"
Cutting Diameter (Decimal Inch):
1.8400"
Cutting Diameter (mm):
46.84mm
Cutting Width (Inch):
53/64"
Cutting Width (Decimal Inch):
0.8200"
Cutting Width (mm):
20.90mm
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
