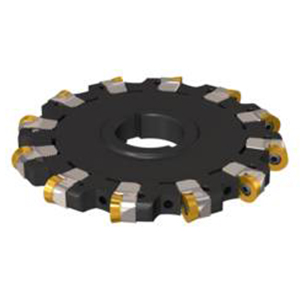

Product Specifications
| Manufacturer Part Number | 02993838 |
| Cutting Diameter (mm) | 165.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Maximum Cutting Diameter (mm) | 165.00mm |
| Contact Surface Diameter Machine Side (mm) | 55.00mm |
| Functional Length (mm) | 0.48mm |
| Keyway Width (mm) | 10.00mm |
| Minimum Cutting Width (mm) | 16.03mm |
| Maximum Depth of Cut (mm) | 7.94mm |
| Maximum Cutting Depth (mm) | 53.64mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Maximum Rotational Speed (rpm) | 7200 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | RP..1605 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3126"
Maximum Depth of Cut (mm):
7.94mm
Cutter Diameter (Inch):
165"
Cutter Diameter (Decimal Inch):
6.4961"
Cutter Diameter (mm):
165.00mm
interval quantity:
1
