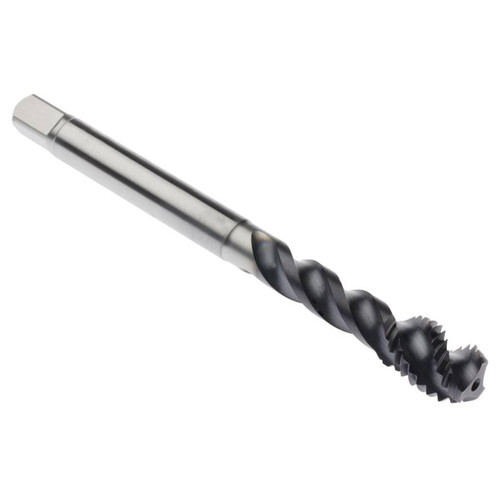

Seco Tools 03000030 | MTH-M12X1.75ISO6HX-BC-P004-A M12 Thread Size x 0.472" Diameter x 0.354" Shank x 4.331" OAL 48 Degree Helix Angle 3 Flute AlTiN Coated HSS-E-PM Spiral Flute Tap

$182.00 $125.58
(You save $56.42)
Brand:
Seco Tools
Thread Size:
M12
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
AlTiN
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.00mm
interval quantity:
1
SKU:
17993484
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03000030 | MTH-M12X1.75ISO6HX-BC-P004-A M12 Thread Size x 0.472" Diameter x 0.354" Shank x 4.331" OAL 48 Degree Helix Angle 3 Flute AlTiN Coated HSS-E-PM Spiral Flute Tap

Product Specifications
Manufacturer Part Number03000030
Thread Diameter (Decimal Inch)0.472"
Thread Diameter (mm)12.00mm
Threading Chamfer Length (Decimal Inch)0.207"
Threading Chamfer Length (mm)5.25mm
Tap Chamfer Length (Decimal Inch)0.174"
Tap Chamfer Length (mm)4.41mm
Connection Diameter Machine Side (Decimal Inch)0.354"
Connection Diameter Machine Side (mm)9.00mm
Shank Diameter (Decimal Inch)0.354"
Shank Diameter (mm)9.00mm
Functional Length (Decimal Inch)4.157"
Functional Length (mm)105.59mm
Usable Length (Decimal Inch)3.268"
Usable Length (mm)83.00mm
Overall Length (Decimal Inch)4.331"
Overall Length (mm)110.00mm
Thread Length (Decimal Inch)0.630"
Thread Length (mm)16.00mm
Thread Diameter SizeM12
Recommended Premachined Hole Diameter (Decimal Inch)0.409"
Recommended Premachined Hole Diameter (mm)10.40mm
Connection Size Code9.00X7.00
Connection Size Code Machine Side9.00X7.00
Maximum Premachined Hole Diameter (Decimal Inch)0.411"
Maximum Premachined Hole Diameter (mm)10.44mm
Minimum Thread Pitch (Decimal Inch)0.069"
Minimum Thread Pitch (mm)1.75mm
Maximum Thread Pitch (Decimal Inch)0.069"
Maximum Thread Pitch (mm)1.75mm
Flute Helix Angle (Degree)48 Degree
Number of Flute3
Coolant Entry Style Code1
Coolant Supply Property1
Coolant Exit Style Code1
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeISO-P
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingAlTiN
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Thread Size:
M12
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
AlTiN
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.00mm
interval quantity:
1
