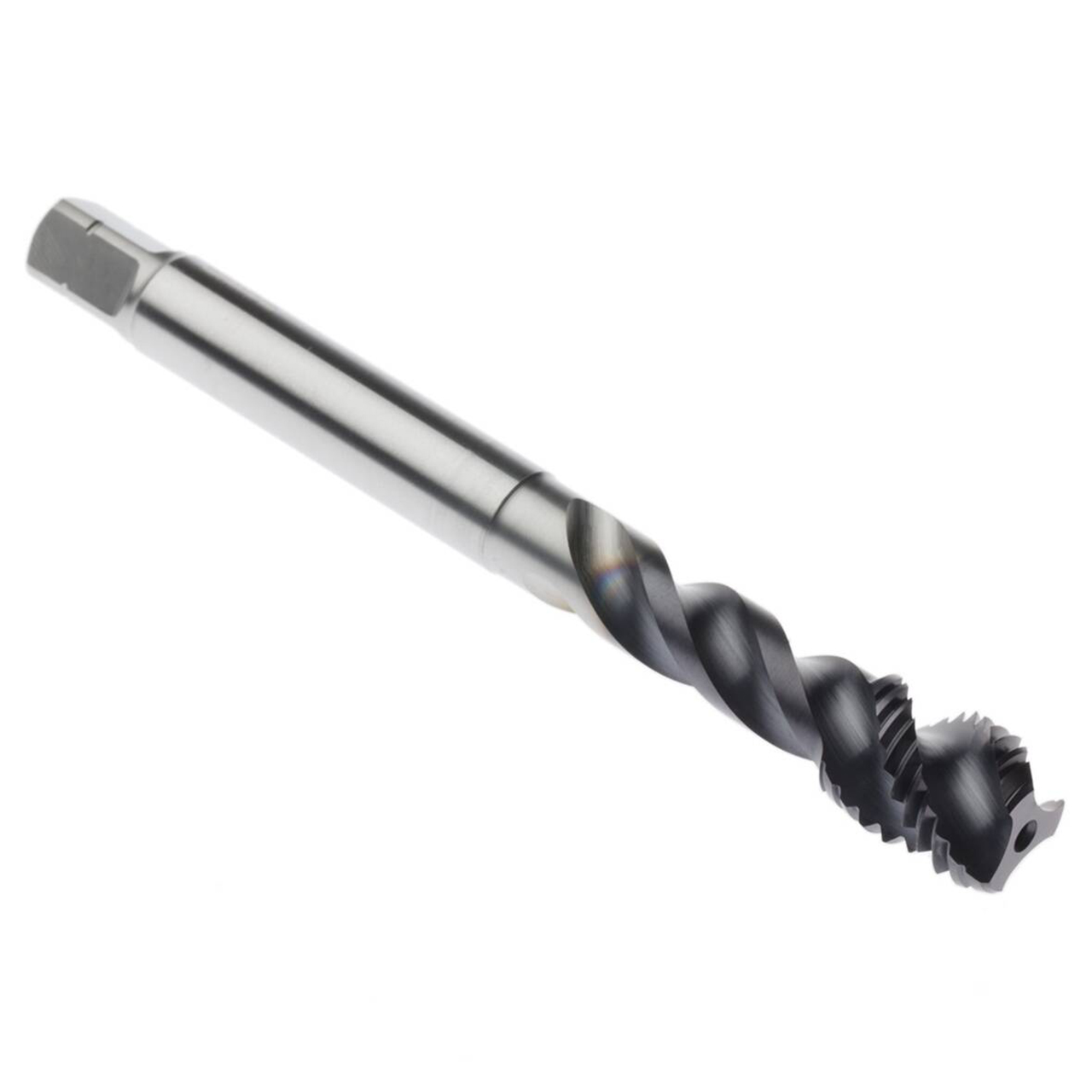

Seco Tools 03000044 | MTH-M8X1.00ISO6HX-BC-P011 MF8X1.0 Thread Size x 0.315" Diameter x 0.236" Shank x 3.543" OAL 48 Degree Helix Angle 3 Flute AlTiN Coated HSS-E-PM Spiral Flute Tap

$74.52
Brand:
Seco Tools
Thread Size:
MF8X1.0
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
AlTiN
Overall Length (Inch):
3-19/35"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
90.00mm
interval quantity:
1
SKU:
17993497
Weight:
0.04 LBS
Shipping:
Calculated at Checkout
Seco Tools 03000044 | MTH-M8X1.00ISO6HX-BC-P011 MF8X1.0 Thread Size x 0.315" Diameter x 0.236" Shank x 3.543" OAL 48 Degree Helix Angle 3 Flute AlTiN Coated HSS-E-PM Spiral Flute Tap

Product Specifications
Manufacturer Part Number03000044
Thread Diameter (Decimal Inch)0.315"
Thread Diameter (mm)8.00mm
Threading Chamfer Length (Decimal Inch)0.118"
Threading Chamfer Length (mm)3.00mm
Tap Chamfer Length (Decimal Inch)0.110"
Tap Chamfer Length (mm)2.80mm
Connection Diameter Machine Side (Decimal Inch)0.236"
Connection Diameter Machine Side (mm)6.00mm
Shank Diameter (Decimal Inch)0.236"
Shank Diameter (mm)6.00mm
Functional Length (Decimal Inch)3.433"
Functional Length (mm)87.20mm
Usable Length (Decimal Inch)2.638"
Usable Length (mm)67.00mm
Overall Length (Decimal Inch)3.543"
Overall Length (mm)90.00mm
Thread Length (Decimal Inch)0.512"
Thread Length (mm)13.00mm
Thread Diameter SizeMF8X1.0
Recommended Premachined Hole Diameter (Decimal Inch)0.280"
Recommended Premachined Hole Diameter (mm)7.10mm
Connection Size Code6.00X4.90
Connection Size Code Machine Side6.00X4.90
Maximum Premachined Hole Diameter (Decimal Inch)0.282"
Maximum Premachined Hole Diameter (mm)7.15mm
Minimum Thread Pitch (Decimal Inch)0.039"
Minimum Thread Pitch (mm)1.00mm
Maximum Thread Pitch (Decimal Inch)0.039"
Maximum Thread Pitch (mm)1.00mm
Flute Helix Angle (Degree)48 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeISO-P
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingAlTiN
Product TypeSpiral Flute Tap
