Product Specifications
| Manufacturer Part Number | 03029359 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 3.150" |
| Connection Diameter Machine Side (mm) | 80.00mm |
| Shank Diameter (Decimal Inch) | 3.150" |
| Shank Diameter (mm) | 80.00mm |
| Body Length (Decimal Inch) | 13.189" |
| Body Length (mm) | 335.00mm |
| Body Length 1 (Decimal Inch) | 13.189" |
| Body Length 1 (mm) | 335.00mm |
| Body Length 2 (Decimal Inch) | 12.795" |
| Body Length 2 (mm) | 325.00mm |
| Functional Length (Decimal Inch) | 14.488" |
| Functional Length (mm) | 368.00mm |
| Shank Length (Decimal Inch) | 1.890" |
| Shank Length (mm) | 48.00mm |
| Overall Length (Decimal Inch) | 16.630" |
| Overall Length (mm) | 422.40mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 5000 rpm |

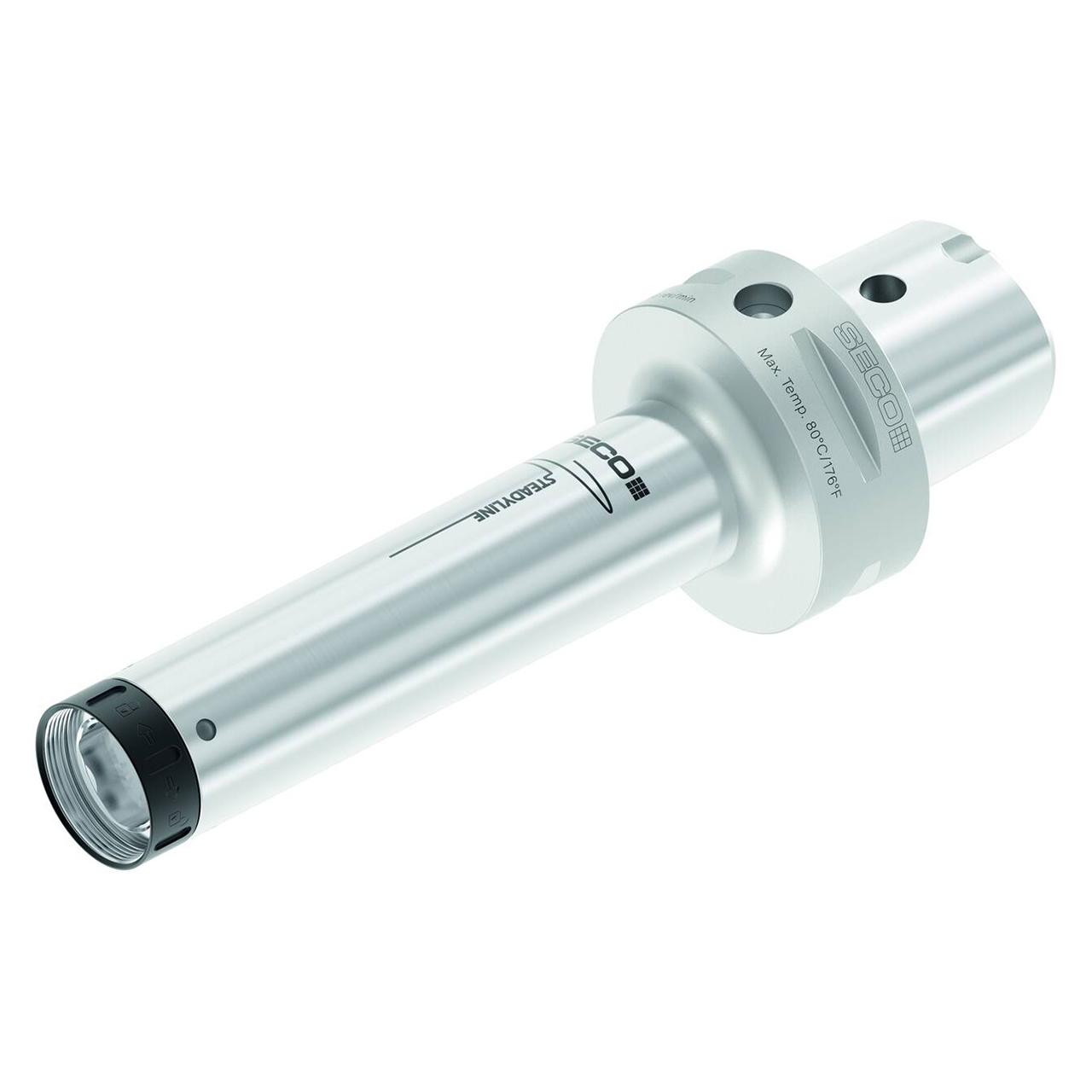

| Product Type | Collet Chuck Extension Adapter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-37/64"
Body Diameter (Decimal Inch):
1.5750"
Body Diameter (mm):
40.00mm
Overall Length (Inch):
16-17/27"
Overall Length (Decimal Inch):
16.6300"
Overall Length (mm):
422.40mm
interval quantity:
1
