Product Specifications

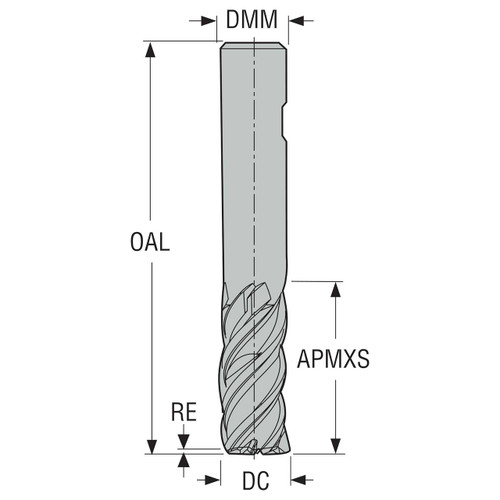

| Manufacturer Part Number | 03134984 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 11.37mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 7.80mm |
| Overall Length (mm) | 47.00mm |
| Cutting Edge Effective Length (mm) | 7.50mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Corner Radius (mm) | 0.30mm |
| Shank Type | Cylindrical |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | JHP780 |
| Cutting Geometry Type Technical | JHP780 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 44 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 9 Degree |
| Axial Rake Angle (Degree) | 44 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | Yes |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Material | Carbide |
| Coating | MEGA-64 |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
17/72"
Mill Diameter (Decimal Inch):
0.2362"
Mill Diameter (mm):
6.00mm
Number of Flutes:
4
Corner Radius (Inch):
1/85"
Corner Radius (Decimal Inch):
0.0118"
Corner Radius (mm):
0.30mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
MEGA-64
Shank Diameter (Inch):
17/72"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
1-17/20"
Overall Length (Decimal Inch):
1.8504"
Overall Length (mm):
47.00mm
Cutting Direction:
Right Hand
interval quantity:
1
