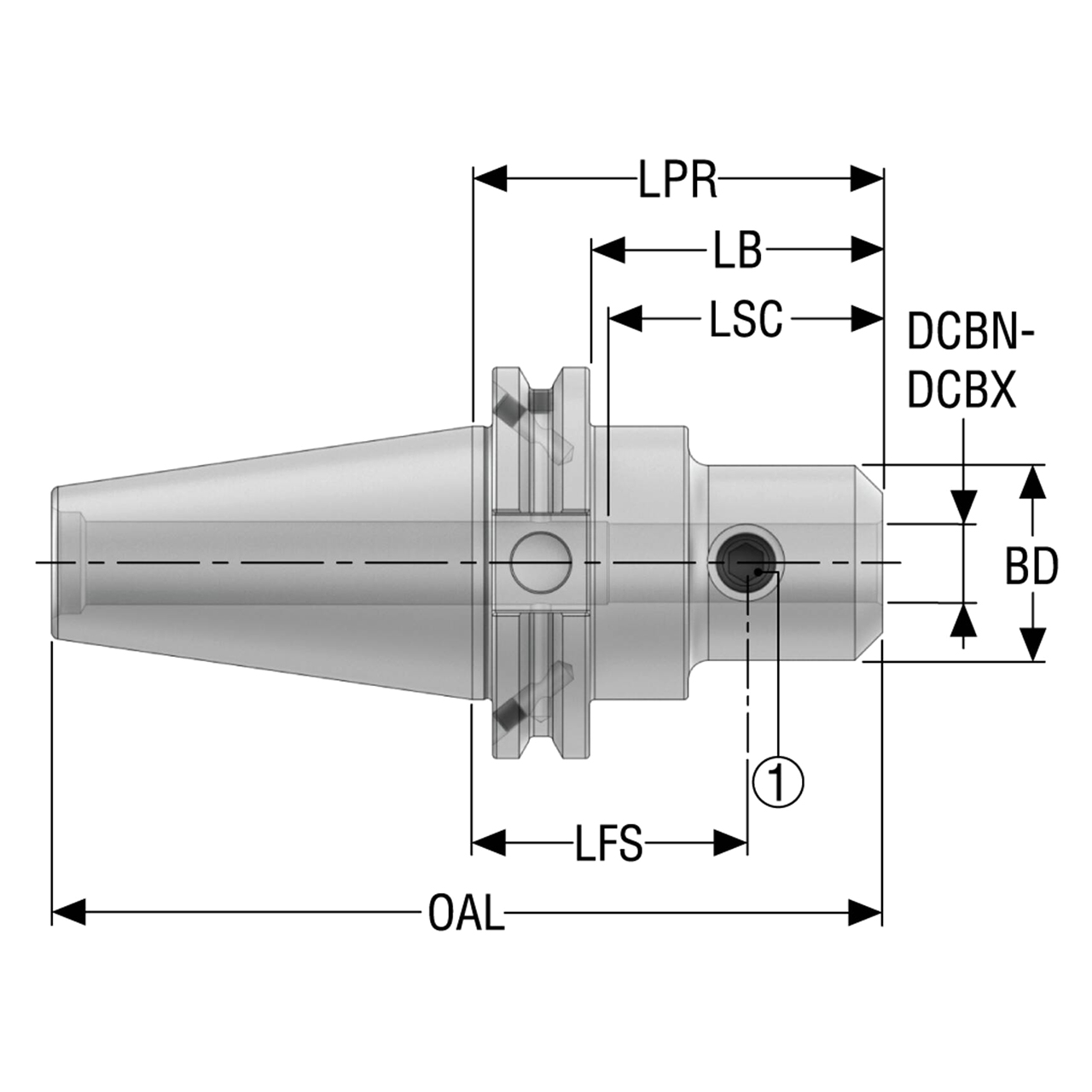

Product Specifications
| Manufacturer Part Number | 03201510 |
| Body Diameter (Decimal Inch) | 1.900" |
| Body Diameter (mm) | 48.26mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Minimum Connection Bore Diameter (mm) | 25.40mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Connection Bore Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 1.000" |
| Body Length (mm) | 25.40mm |
| Functional Length Secondary (Decimal Inch) | 0.625" |
| Functional Length Secondary (mm) | 15.88mm |
| Protruding Length (Decimal Inch) | 1.750" |
| Protruding Length (mm) | 44.45mm |
| Clamping Length (Decimal Inch) | 2.000" |
| Clamping Length (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.437" |
| Overall Length (mm) | 112.70mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-9/10"
Body Diameter (Decimal Inch):
1.9000"
Body Diameter (mm):
48.26mm
Overall Length (Inch):
4-7/16"
Overall Length (Decimal Inch):
4.4370"
Overall Length (mm):
112.70mm
