Product Specifications
| Manufacturer Part Number | 03212898 |
| Cutting Diameter (mm) | 67.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 60.00mm |
| Maximum Cutting Diameter (mm) | 80.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 158.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 147.00mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 1.85mm |
| Depth of Key Way (mm) | 7.00mm |
| Keyway Width (mm) | 12.40mm |
| Programming Radius (mm) | 3.45mm |
| Uncut Thickness (mm) | 0.7 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Maximum Ramping Angle (Degree) | 1.1 Degree |
| Maximum Rotational Speed (rpm) | 19600 rpm |
| Insert Shape Code | L |
| Shank Type | Arbor |

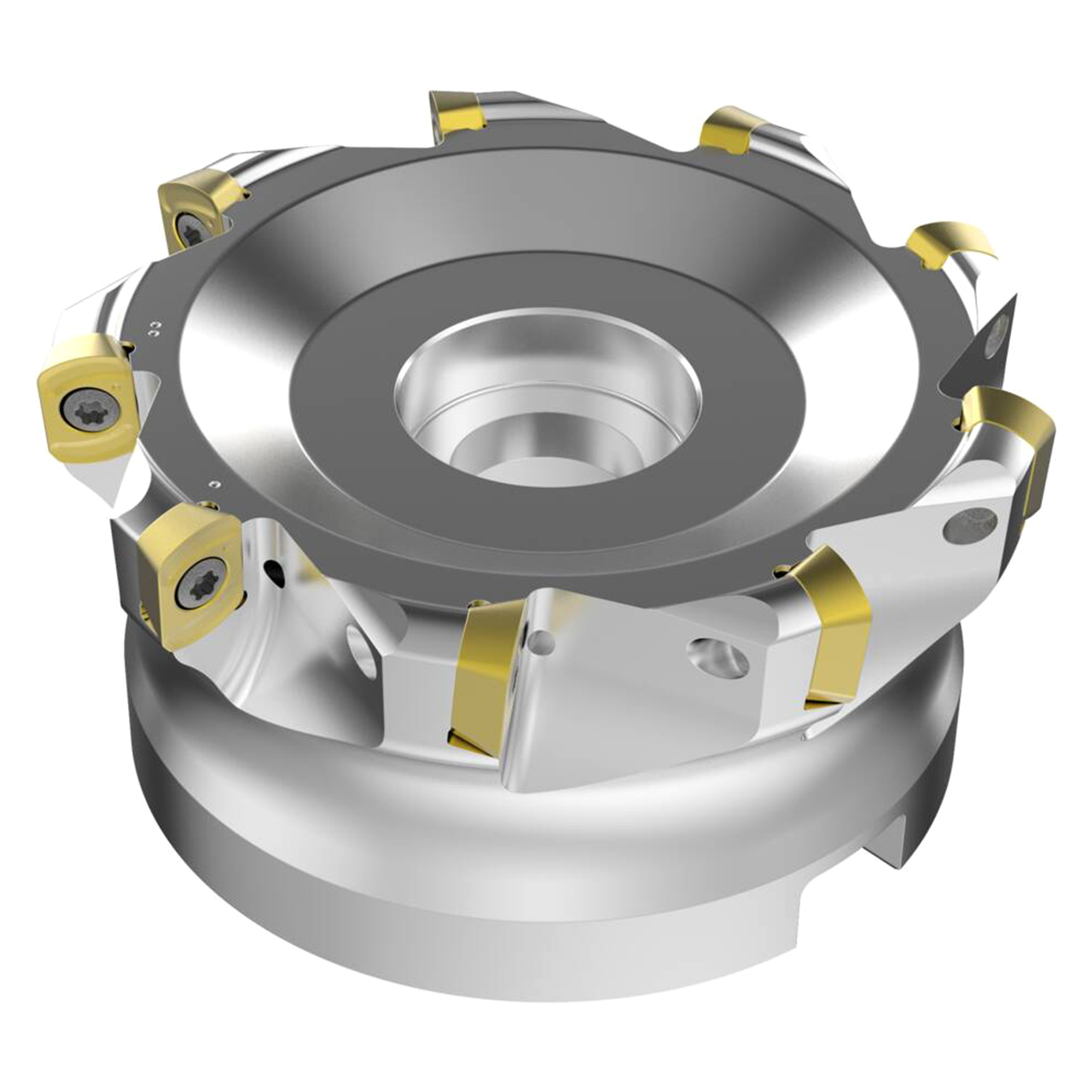

| Product Type | Indexable High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-37/58"
Cutting Diameter (Decimal Inch):
2.6378"
Cutting Diameter (mm):
67.00mm
Maximum Depth of Cut (Inch):
4/55"
Maximum Depth of Cut (Decimal Inch):
0.0728"
Maximum Depth of Cut (mm):
1.85mm
Shank Type:
Arbor
interval quantity:
1
