Product Specifications
| Manufacturer Part Number | 03229681 |
| Body Diameter (Decimal Inch) | 2.500" |
| Body Diameter (mm) | 63.50mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Minimum Connection Bore Diameter (mm) | 25.40mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Connection Bore Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 4.858" |
| Body Length (mm) | 123.40mm |
| Functional Length Secondary (Decimal Inch) | 4.880" |
| Functional Length Secondary (mm) | 123.95mm |
| Protruding Length (Decimal Inch) | 6.000" |
| Protruding Length (mm) | 152.40mm |
| Clamping Length (Decimal Inch) | 2.244" |
| Clamping Length (mm) | 57.00mm |
| Overall Length (Decimal Inch) | 8.480" |
| Overall Length (mm) | 215.40mm |
| Data Chip Provision | 1 |

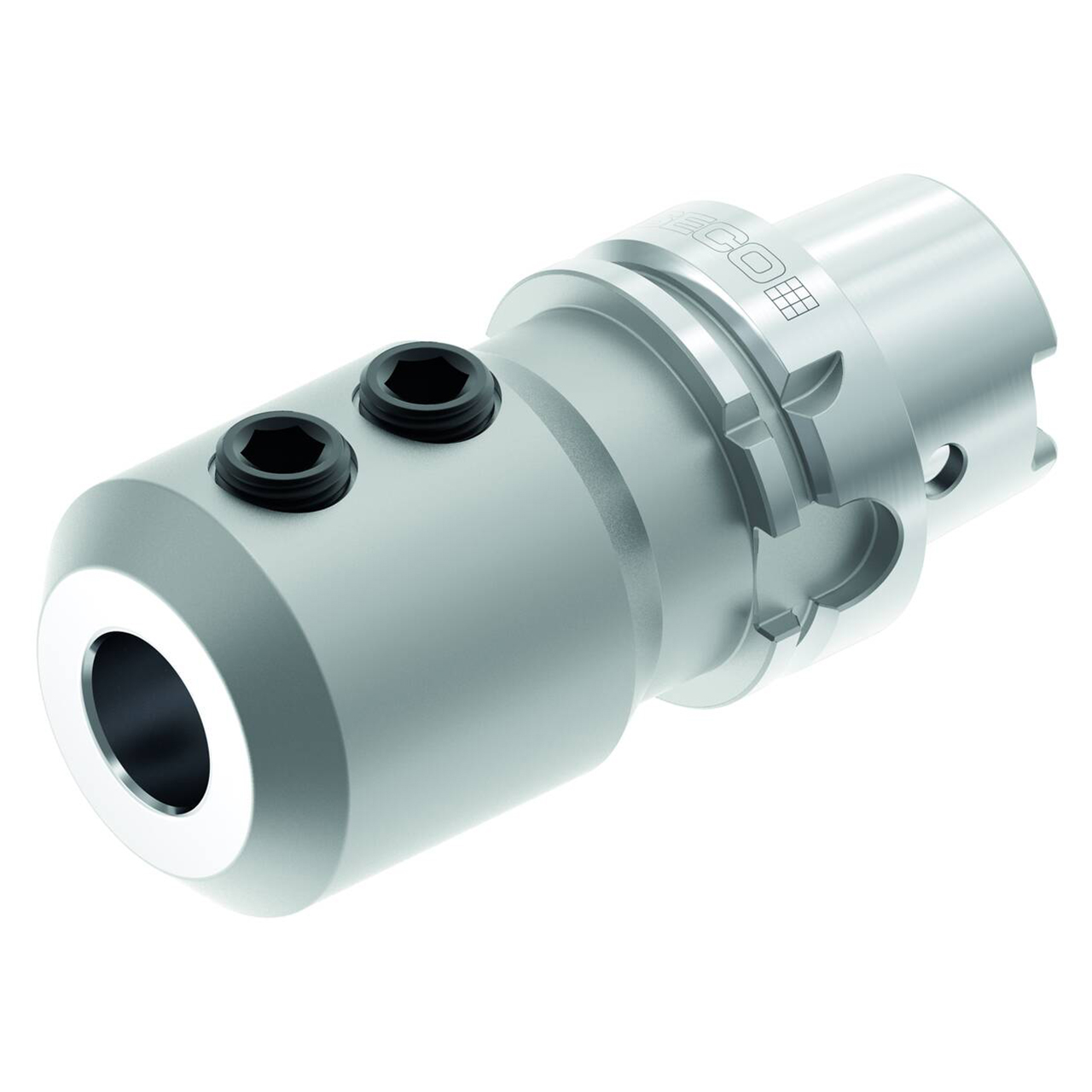

| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2-1/2"
Body Diameter (Decimal Inch):
2.5000"
Body Diameter (mm):
63.50mm
Overall Length (Inch):
8-12/25"
Overall Length (Decimal Inch):
8.4800"
Overall Length (mm):
215.40mm
interval quantity:
1
