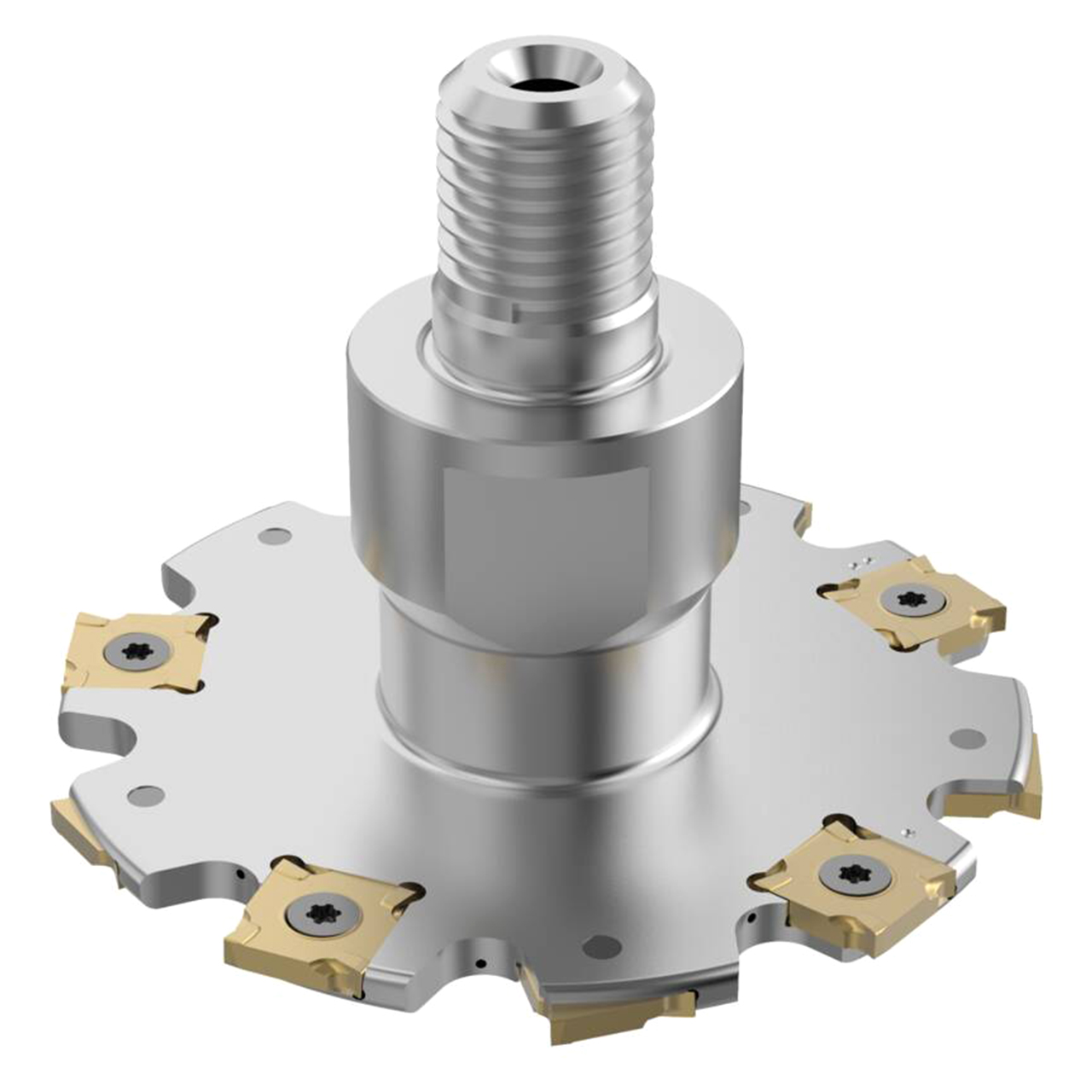

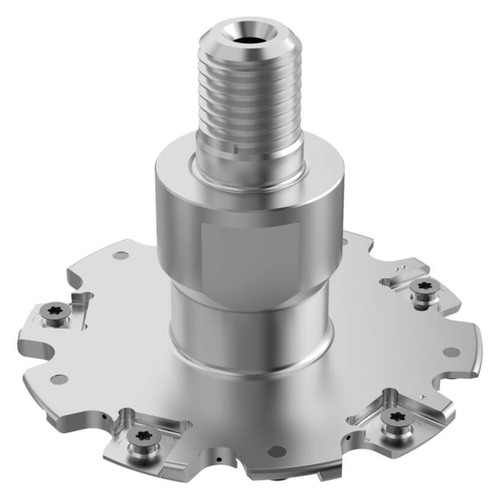

Seco Tools 03277884 | R335.19-03.00-RE-0.18-5NA 76.20mm Diameter x 35.00mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

$1,328.90
Brand:
Seco Tools
Cutting Width (Inch):
4-19/25"
Cutting Width (Decimal Inch):
0.1874"
Cutting Width (mm):
4.76mm
Maximum Depth of Cut (Inch):
3/16"
Maximum Depth of Cut (Decimal Inch):
0.1874"
Maximum Depth of Cut (mm):
4.76mm
Cutter Diameter (Inch):
76-1/5"
Cutter Diameter (Decimal Inch):
3.0000"
Cutter Diameter (mm):
76.20mm
interval quantity:
1
SKU:
23287796
Weight:
0.69 LBS
Shipping:
Free Shipping
Seco Tools 03277884 | R335.19-03.00-RE-0.18-5NA 76.20mm Diameter x 35.00mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

Product Specifications
Manufacturer Part Number03277884
Cutting Diameter (Decimal Inch)3.000"
Cutting Diameter (mm)76.20mm
Contact Surface Diameter Machine Side (Decimal Inch)1.181"
Contact Surface Diameter Machine Side (mm)30.00mm
Body Diameter (Decimal Inch)1.022"
Body Diameter (mm)25.95mm
Body Length (Decimal Inch)0.414"
Body Length (mm)10.53mm
Functional Length (Decimal Inch)1.378"
Functional Length (mm)35.00mm
Cutting Width (Decimal Inch)0.187"
Cutting Width (mm)4.76mm
Maximum Depth of Cut (Decimal Inch)0.187"
Maximum Depth of Cut (mm)4.76mm
Maximum Cutting Depth (Decimal Inch)0.953"
Maximum Cutting Depth (mm)24.20mm
Connection Mounting Torque (Nm)80.0 Nm
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Rake Radial Angle (Degree)-15 Degree
Cutting DirectionRight Hand
Maximum Rotational Speed (rpm)13200 rpm
Coolant Entry Style Code1
Cutting Pitch DensityNormal
Coolant Supply Property1
Pocket Seat Code of The Cutter335.19-1103
Coolant Exit Style Code2
Cutting Item Material TypeSteel
Shank TypeCombimaster
Product TypeIndexable Slotting Cutter
