Product Specifications

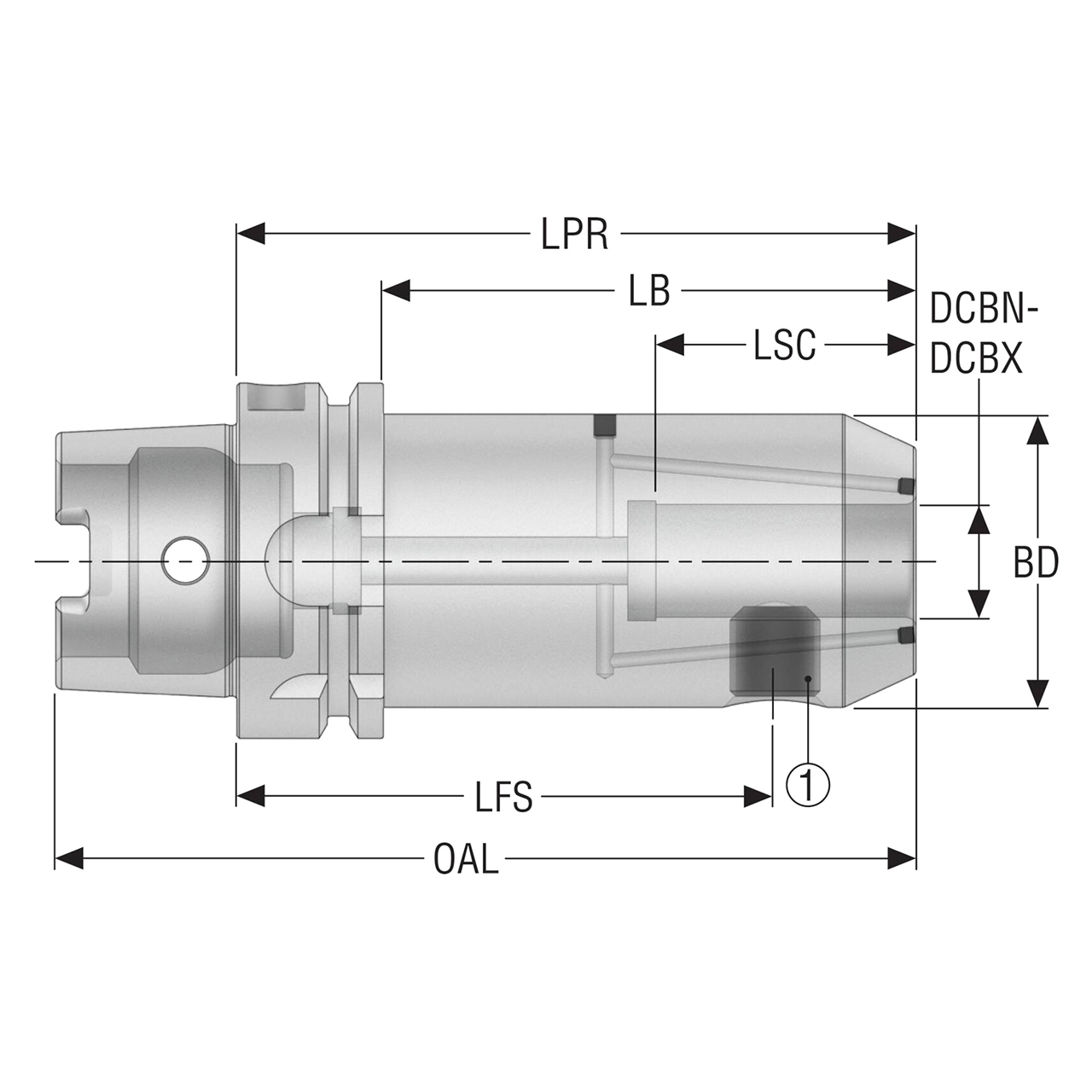

| Manufacturer Part Number | 03301693 |
| Body Diameter (Decimal Inch) | 1.378" |
| Body Diameter (mm) | 35.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 3.701" |
| Body Length (mm) | 94.00mm |
| Functional Length Secondary (Decimal Inch) | 3.937" |
| Functional Length Secondary (mm) | 100.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Clamping Length (Decimal Inch) | 1.417" |
| Clamping Length (mm) | 36.00mm |
| Overall Length (Decimal Inch) | 5.984" |
| Overall Length (mm) | 152.00mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-31/82"
Body Diameter (Decimal Inch):
1.3780"
Body Diameter (mm):
35.00mm
Overall Length (Inch):
5-61/62"
Overall Length (Decimal Inch):
5.9840"
Overall Length (mm):
152.00mm
interval quantity:
1
