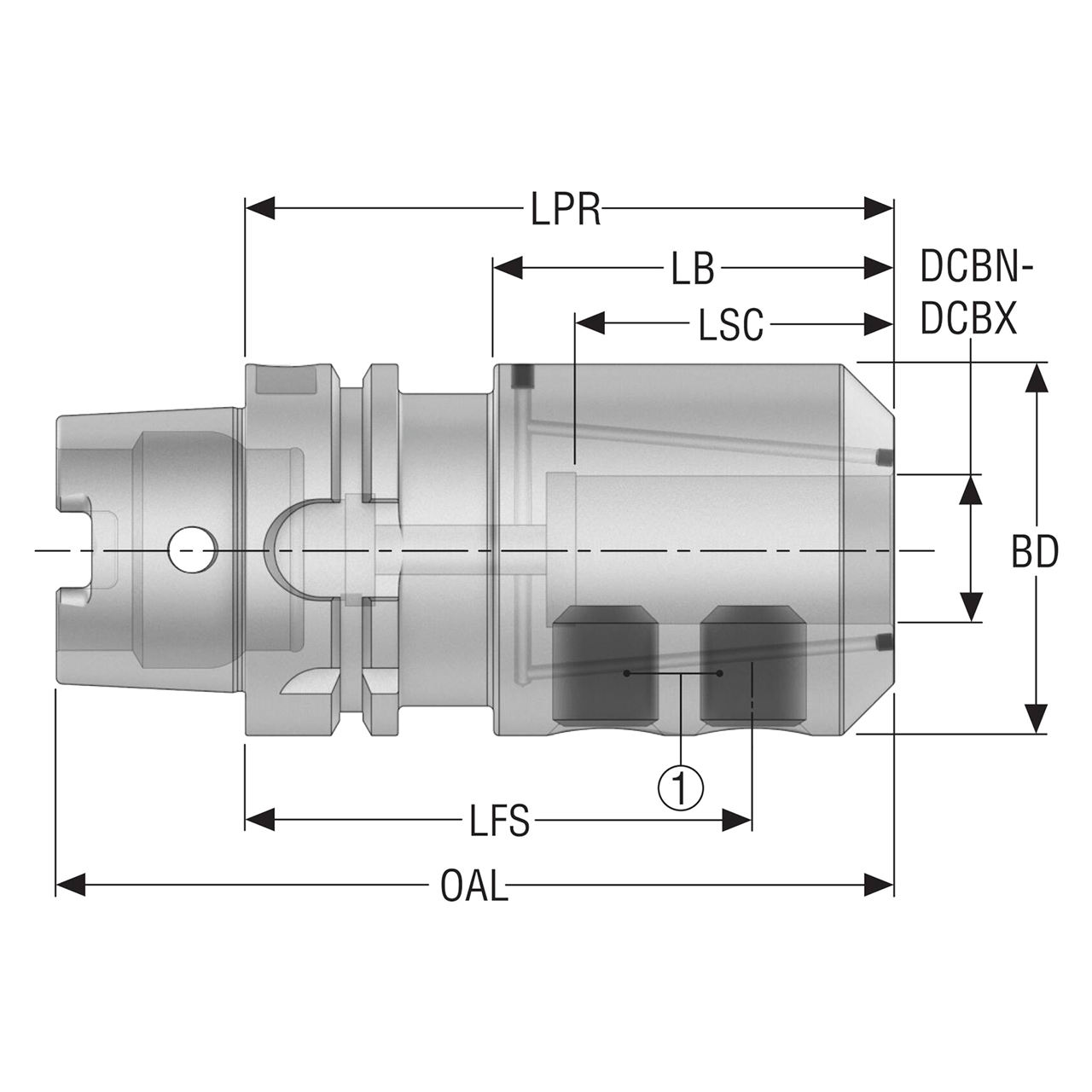

Product Specifications
| Manufacturer Part Number | 03301745 |
| Body Diameter (Decimal Inch) | 2.500" |
| Body Diameter (mm) | 63.50mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Minimum Connection Bore Diameter (mm) | 31.75mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Connection Bore Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 2.858" |
| Body Length (mm) | 72.60mm |
| Functional Length Secondary (Decimal Inch) | 2.880" |
| Functional Length Secondary (mm) | 73.15mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 2.250" |
| Clamping Length (mm) | 57.15mm |
| Overall Length (Decimal Inch) | 5.969" |
| Overall Length (mm) | 151.60mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2-1/2"
Body Diameter (Decimal Inch):
2.5000"
Body Diameter (mm):
63.50mm
Overall Length (Inch):
5-94/97"
Overall Length (Decimal Inch):
5.9690"
Overall Length (mm):
151.60mm
interval quantity:
1
