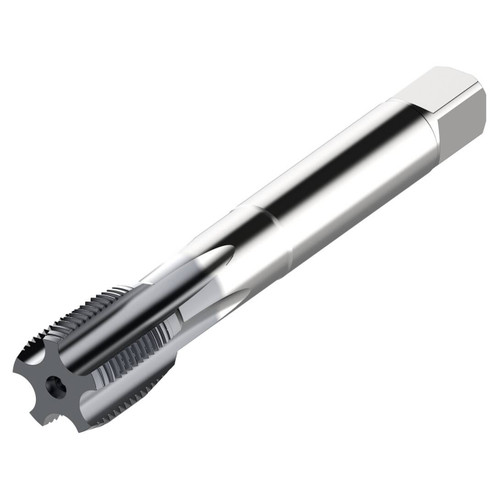

Seco Tools 03305484 | MTS-1/2-13UNC-XC-K131 UNC1/2-13 Thread Size x 0.500" Diameter x 0.354" Shank x 4.331" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

$149.00 $102.81
(You save $46.19)
Brand:
Seco Tools
Thread Size:
UNC1/2-13
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.00mm
Number of Flutes:
5
Material:
HSS-E-PM
Finish/Coating:
TIALN
Thread Standard:
UNC
interval quantity:
1
SKU:
17993686
UPC:
Weight:
0.10 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03305484 | MTS-1/2-13UNC-XC-K131 UNC1/2-13 Thread Size x 0.500" Diameter x 0.354" Shank x 4.331" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

Product Specifications
Manufacturer Part Number03305484
Thread Diameter (Decimal Inch)0.500"
Thread Diameter (mm)12.70mm
Threading Chamfer Length (Decimal Inch)0.211"
Threading Chamfer Length (mm)5.37mm
Tap Chamfer Length (Decimal Inch)0.212"
Tap Chamfer Length (mm)5.37mm
Connection Diameter Machine Side (Decimal Inch)0.354"
Connection Diameter Machine Side (mm)9.00mm
Shank Diameter (Decimal Inch)0.354"
Shank Diameter (mm)9.00mm
Functional Length (Decimal Inch)4.119"
Functional Length (mm)104.63mm
Usable Length (Decimal Inch)3.224"
Usable Length (mm)81.90mm
Overall Length (Decimal Inch)4.331"
Overall Length (mm)110.00mm
Thread Length (Decimal Inch)0.906"
Thread Length (mm)23.00mm
Thread Diameter SizeUNC1/2-13
Recommended Premachined Hole Diameter (Decimal Inch)0.425"
Recommended Premachined Hole Diameter (mm)10.80mm
Connection Size Code10.25X7.00
Connection Size Code Machine Side10.25X7.00
Maximum Premachined Hole Diameter (Decimal Inch)0.434"
Maximum Premachined Hole Diameter (mm)11.01mm
Minimum Threads Per Inch (mm)13.00mm
Maximum Threads Per Inch (mm)13.00mm
Number of Flute5
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeC
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeISO-K
Cutting Geometry Type TechnicalStraight
MaterialHSS-E-PM
CoatingTIALN
Product TypeStraight Flute Tap
