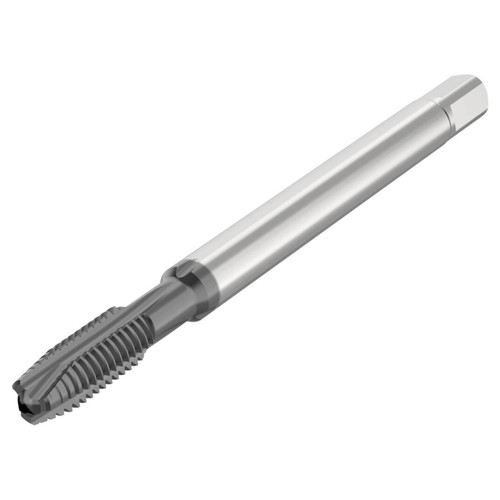

Seco Tools 10001177 | MTP-M8X0.750ISO6HX-TB-S011 MF8X0.75 Thread Size x 0.320" Diameter x 0.315" Shank x 3.604" OAL 3 Flute ACN Coated HSS-E-PM Spiral Point Tap

$51.54
Brand:
Seco Tools
Thread Size:
MF8X0.75
Number of Flutes:
3
Thread Standard:
MF
Finish/Coating:
ACN
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17993810
Weight:
0.07 LBS
Shipping:
Calculated at Checkout
Seco Tools 10001177 | MTP-M8X0.750ISO6HX-TB-S011 MF8X0.75 Thread Size x 0.320" Diameter x 0.315" Shank x 3.604" OAL 3 Flute ACN Coated HSS-E-PM Spiral Point Tap

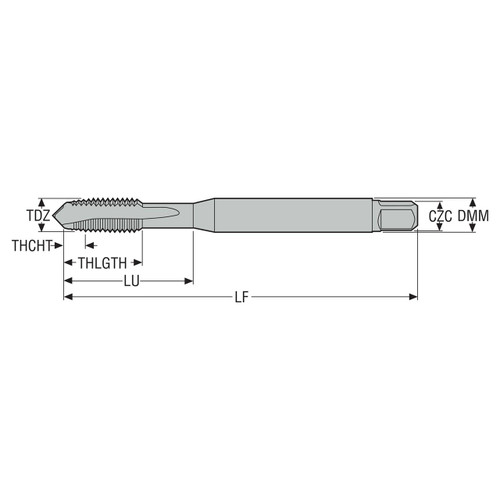

Product Specifications
Manufacturer Part Number10001177
Thread Diameter (Decimal Inch)0.320"
Thread Diameter (mm)8.12mm
Threading Chamfer Length (Decimal Inch)0.133"
Threading Chamfer Length (mm)3.38mm
Tap Chamfer Length (Decimal Inch)0.133"
Tap Chamfer Length (mm)3.38mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.410"
Functional Length (mm)86.62mm
Usable Length (Decimal Inch)1.161"
Usable Length (mm)29.50mm
Overall Length (Decimal Inch)3.604"
Overall Length (mm)91.55mm
Thread Length (Decimal Inch)0.709"
Thread Length (mm)18.00mm
Thread Diameter SizeMF8X0.75
Recommended Premachined Hole Diameter (Decimal Inch)0.285"
Recommended Premachined Hole Diameter (mm)7.25mm
Connection Size Code8.00X6.20
Connection Size Code Machine Side8.00X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.291"
Maximum Premachined Hole Diameter (mm)7.38mm
Minimum Thread Pitch (Decimal Inch)0.030"
Minimum Thread Pitch (mm)0.75mm
Maximum Thread Pitch (Decimal Inch)0.030"
Maximum Thread Pitch (mm)0.75mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeB
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingACN
Product TypeSpiral Point Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Thread Size:
MF8X0.75
Number of Flutes:
3
Thread Standard:
MF
Finish/Coating:
ACN
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
