Seco Tools 10001179 | MTP-M10X1.00ISO6HX-TB-S011 MF10X1.0 Thread Size x 0.399" Diameter x 0.394" Shank x 4.002" OAL 3 Flute ACN Coated HSS-E-PM Spiral Point Tap

$90.70 $62.58
(You save $28.12)
Brand:
Seco Tools
Thread Size:
MF10X1.0
Number of Flutes:
3
Thread Standard:
MF
Finish/Coating:
ACN
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17993812
UPC:
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10001179 | MTP-M10X1.00ISO6HX-TB-S011 MF10X1.0 Thread Size x 0.399" Diameter x 0.394" Shank x 4.002" OAL 3 Flute ACN Coated HSS-E-PM Spiral Point Tap

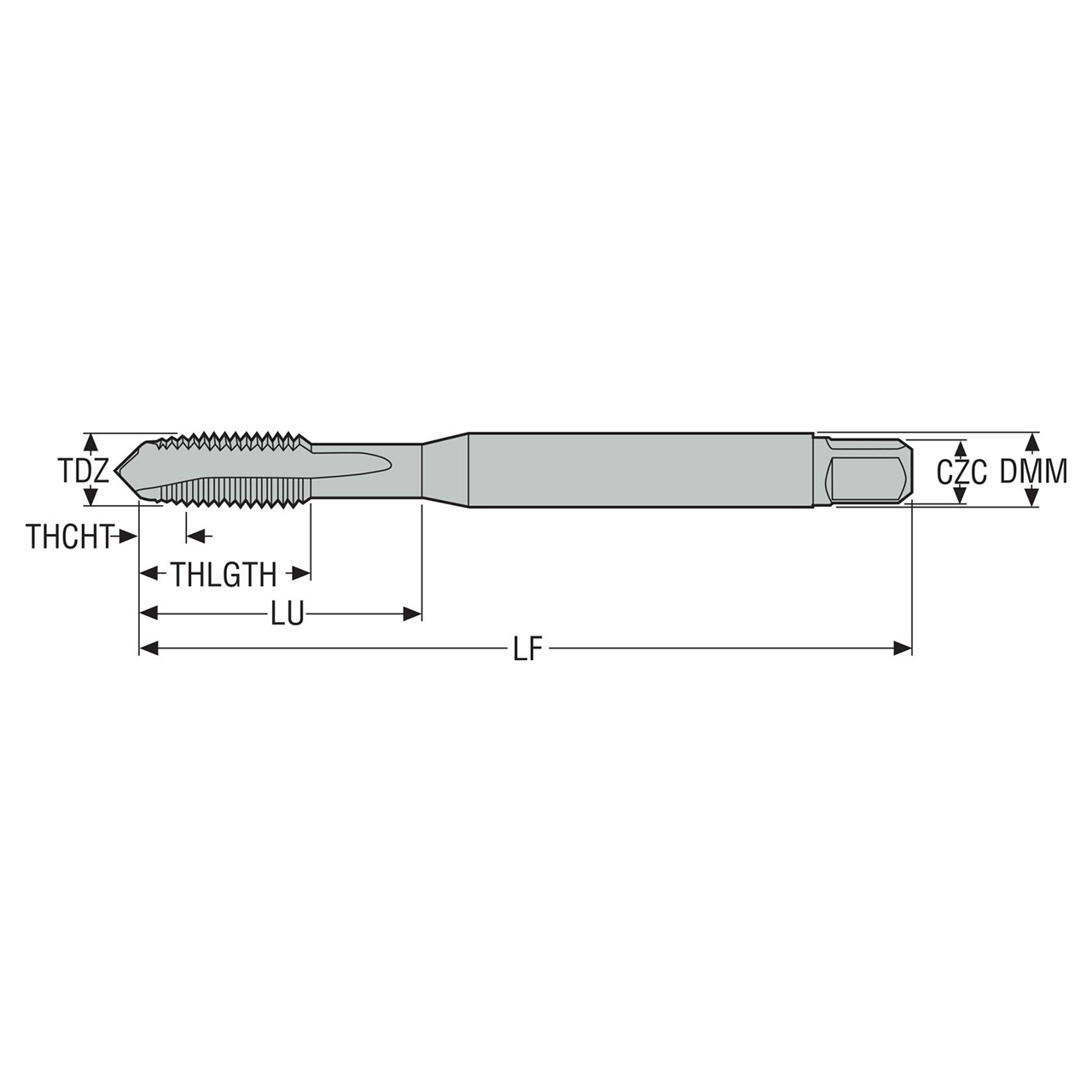

Product Specifications
Manufacturer Part Number10001179
Thread Diameter (Decimal Inch)0.399"
Thread Diameter (mm)10.13mm
Threading Chamfer Length (Decimal Inch)0.177"
Threading Chamfer Length (mm)4.50mm
Tap Chamfer Length (Decimal Inch)0.177"
Tap Chamfer Length (mm)4.50mm
Connection Diameter Machine Side (Decimal Inch)0.394"
Connection Diameter Machine Side (mm)10.00mm
Shank Diameter (Decimal Inch)0.394"
Shank Diameter (mm)10.00mm
Functional Length (Decimal Inch)3.760"
Functional Length (mm)95.50mm
Usable Length (Decimal Inch)1.319"
Usable Length (mm)33.50mm
Overall Length (Decimal Inch)4.002"
Overall Length (mm)101.65mm
Thread Length (Decimal Inch)0.787"
Thread Length (mm)20.00mm
Thread Diameter SizeMF10X1.0
Recommended Premachined Hole Diameter (Decimal Inch)0.354"
Recommended Premachined Hole Diameter (mm)9.00mm
Connection Size Code10.00X8.00
Connection Size Code Machine Side10.00X8.00
Maximum Premachined Hole Diameter (Decimal Inch)0.360"
Maximum Premachined Hole Diameter (mm)9.15mm
Minimum Thread Pitch (Decimal Inch)0.039"
Minimum Thread Pitch (mm)1.00mm
Maximum Thread Pitch (Decimal Inch)0.039"
Maximum Thread Pitch (mm)1.00mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeB
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingACN
Product TypeSpiral Point Tap
