Product Specifications

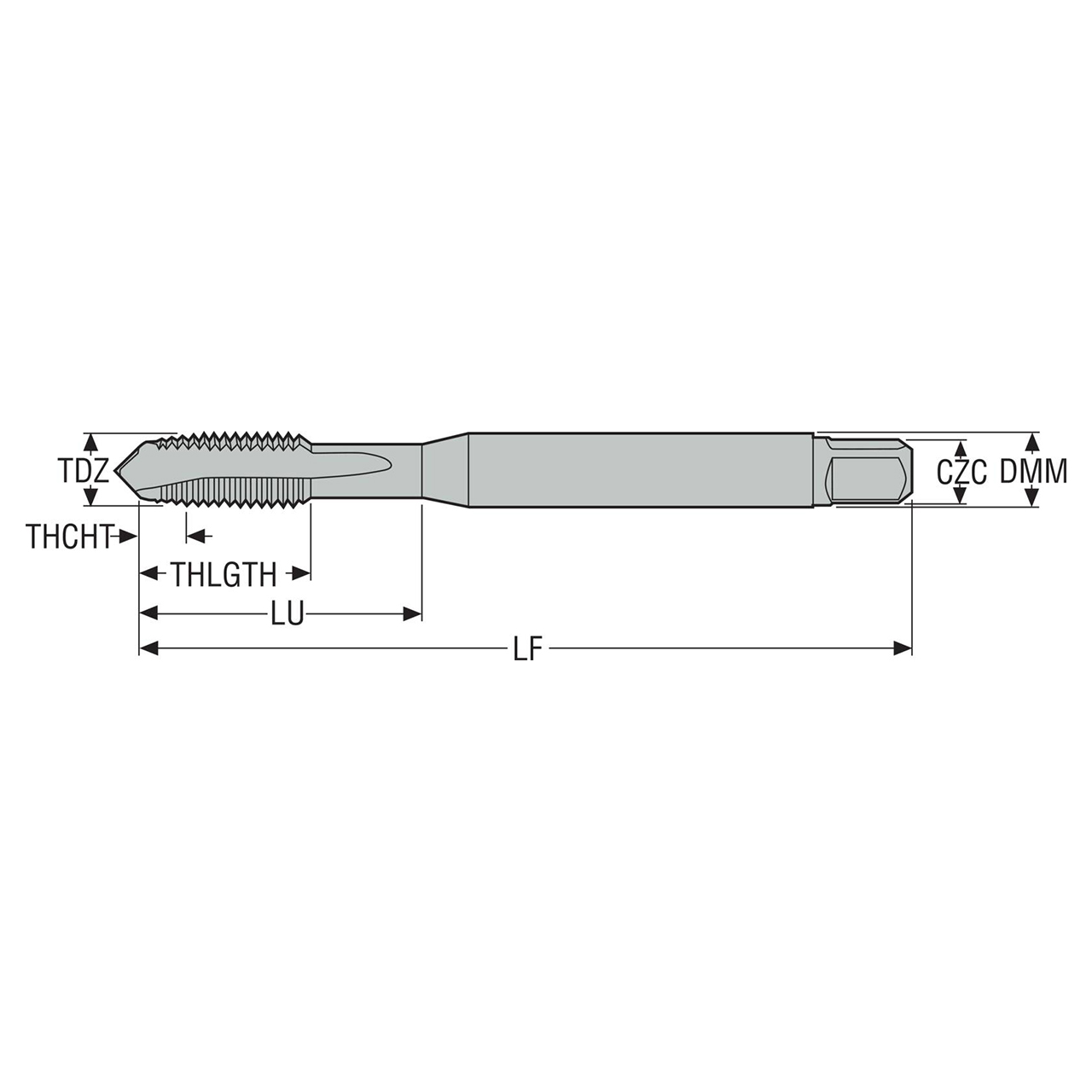

| Manufacturer Part Number | 10001181 |
| Thread Diameter (Decimal Inch) | 0.479" |
| Thread Diameter (mm) | 12.17mm |
| Threading Chamfer Length (Decimal Inch) | 0.266" |
| Threading Chamfer Length (mm) | 6.75mm |
| Tap Chamfer Length (Decimal Inch) | 0.266" |
| Tap Chamfer Length (mm) | 6.75mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.354" |
| Connection Diameter Machine Side (mm) | 9.00mm |
| Shank Diameter (Decimal Inch) | 0.354" |
| Shank Diameter (mm) | 9.00mm |
| Functional Length (Decimal Inch) | 3.671" |
| Functional Length (mm) | 93.25mm |
| Usable Length (Decimal Inch) | 2.874" |
| Usable Length (mm) | 73.00mm |
| Overall Length (Decimal Inch) | 4.012" |
| Overall Length (mm) | 101.90mm |
| Thread Length (Decimal Inch) | 0.827" |
| Thread Length (mm) | 21.00mm |
| Thread Diameter Size | MF12X1.5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.413" |
| Recommended Premachined Hole Diameter (mm) | 10.50mm |
| Connection Size Code | 9.00X7.00 |
| Connection Size Code Machine Side | 9.00X7.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.420" |
| Maximum Premachined Hole Diameter (mm) | 10.68mm |
| Minimum Thread Pitch (Decimal Inch) | 0.059" |
| Minimum Thread Pitch (mm) | 1.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.059" |
| Maximum Thread Pitch (mm) | 1.50mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | ACN |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Thread Size:
MF12X1.5
Number of Flutes:
4
Thread Standard:
MF
Finish/Coating:
ACN
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
