Seco Tools 10001205 | MTH-MJ5X0.80ISO4H-BC-S112 MJ5X0.8 Thread Size x 0.201" Diameter x 0.236" Shank x 2.838" OAL 15 Degree Helix Angle 3 Flute ACN Coated HSS-E-PM Spiral Flute Tap

$67.00 $46.23
(You save $20.77)
Brand:
Seco Tools
Thread Size:
MJ5X0.8
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
ACN
Overall Length (Inch):
2-31/37"
Overall Length (Decimal Inch):
2.8380"
Overall Length (mm):
72.08mm
interval quantity:
1
SKU:
17993826
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10001205 | MTH-MJ5X0.80ISO4H-BC-S112 MJ5X0.8 Thread Size x 0.201" Diameter x 0.236" Shank x 2.838" OAL 15 Degree Helix Angle 3 Flute ACN Coated HSS-E-PM Spiral Flute Tap

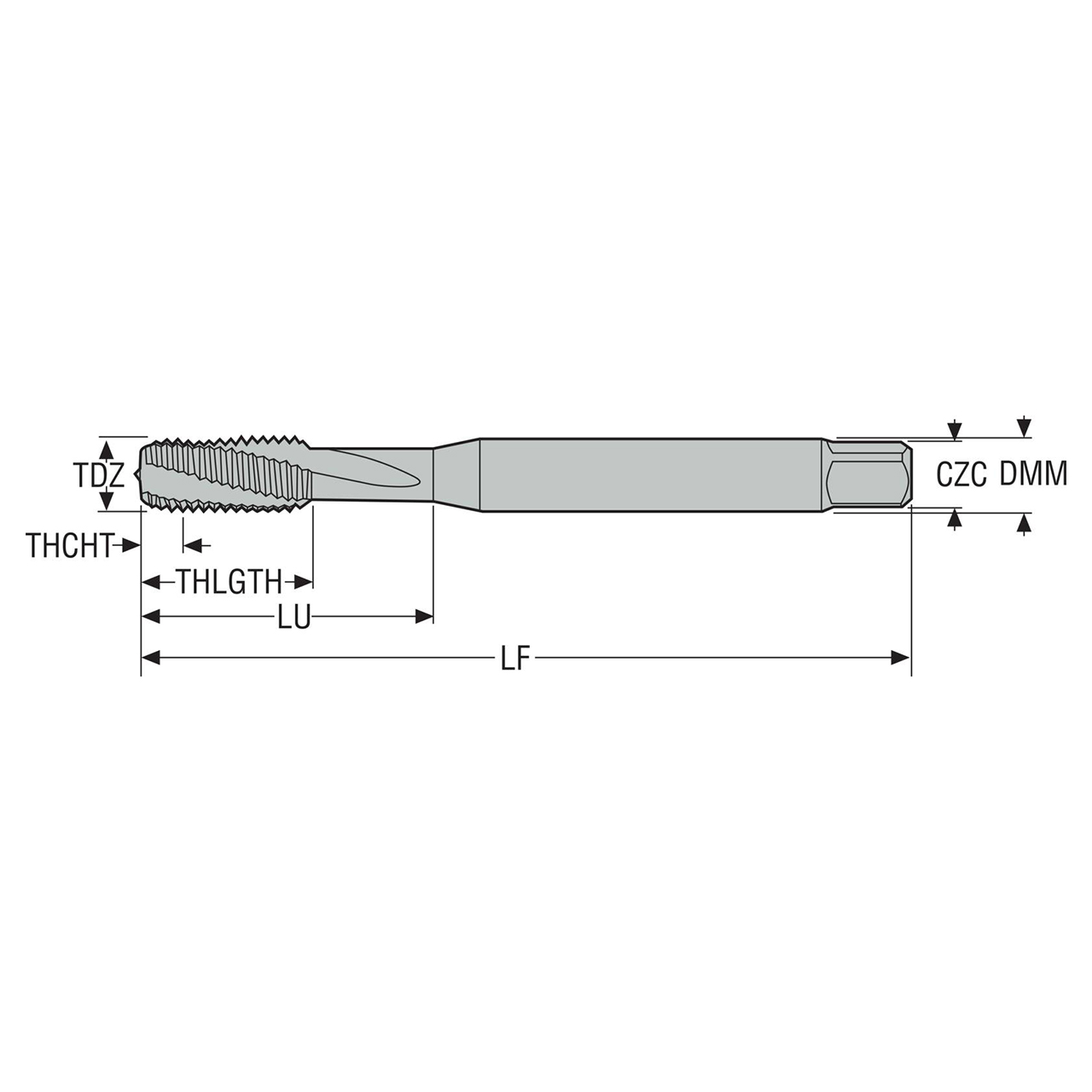

Product Specifications
Manufacturer Part Number10001205
Thread Diameter (Decimal Inch)0.201"
Thread Diameter (mm)5.11mm
Threading Chamfer Length (Decimal Inch)0.079"
Threading Chamfer Length (mm)2.00mm
Tap Chamfer Length (Decimal Inch)0.079"
Connection Diameter Machine Side (Decimal Inch)0.236"
Connection Diameter Machine Side (mm)6.00mm
Shank Diameter (Decimal Inch)0.236"
Shank Diameter (mm)6.00mm
Functional Length (Decimal Inch)2.677"
Functional Length (mm)68.00mm
Usable Length (Decimal Inch)0.630"
Usable Length (mm)16.00mm
Overall Length (Decimal Inch)2.838"
Overall Length (mm)72.08mm
Thread Length (Decimal Inch)0.630"
Thread Length (mm)16.00mm
Thread Diameter SizeMJ5X0.8
Recommended Premachined Hole Diameter (Decimal Inch)0.169"
Recommended Premachined Hole Diameter (mm)4.30mm
Connection Size Code6.00X4.90
Connection Size Code Machine Side6.00X4.90
Maximum Premachined Hole Diameter (Decimal Inch)0.174"
Maximum Premachined Hole Diameter (mm)4.42mm
Minimum Thread Pitch (Decimal Inch)0.032"
Minimum Thread Pitch (mm)0.80mm
Maximum Thread Pitch (Decimal Inch)0.032"
Maximum Thread Pitch (mm)0.80mm
Flute Helix Angle (Degree)15 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class4H
Threading Chamfer TypeC
Thread Form TypeMJ
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingACN
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
