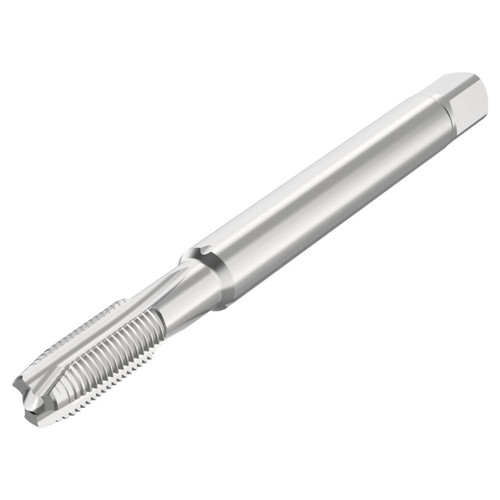

Seco Tools 10001219 | MTP-EGM5X0.8ISO4H-TB-S013 EGM5 Thread Size x 0.241" Diameter x 0.236" Shank x 3.205" OAL 3 Flute Uncoated HSS-E-PM Spiral Point Tap

$84.50 $58.31
(You save $26.19)
Brand:
Seco Tools
Thread Size:
EGM5
Number of Flutes:
3
Thread Standard:
EGM
Finish/Coating:
Uncoated
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17993835
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10001219 | MTP-EGM5X0.8ISO4H-TB-S013 EGM5 Thread Size x 0.241" Diameter x 0.236" Shank x 3.205" OAL 3 Flute Uncoated HSS-E-PM Spiral Point Tap

Product Specifications
Manufacturer Part Number10001219
Thread Diameter (Decimal Inch)0.241"
Thread Diameter (mm)6.12mm
Threading Chamfer Length (Decimal Inch)0.142"
Threading Chamfer Length (mm)3.60mm
Tap Chamfer Length (Decimal Inch)0.142"
Tap Chamfer Length (mm)3.60mm
Connection Diameter Machine Side (Decimal Inch)0.236"
Connection Diameter Machine Side (mm)6.00mm
Shank Diameter (Decimal Inch)0.236"
Shank Diameter (mm)6.00mm
Functional Length (Decimal Inch)3.008"
Functional Length (mm)76.40mm
Usable Length (Decimal Inch)0.906"
Usable Length (mm)23.00mm
Overall Length (Decimal Inch)3.205"
Overall Length (mm)81.40mm
Thread Length (Decimal Inch)0.591"
Thread Length (mm)15.00mm
Thread Diameter SizeEGM5
Recommended Premachined Hole Diameter (Decimal Inch)0.207"
Recommended Premachined Hole Diameter (mm)5.25mm
Connection Size Code6.00X4.90
Connection Size Code Machine Side6.00X4.90
Maximum Premachined Hole Diameter (Decimal Inch)0.210"
Maximum Premachined Hole Diameter (mm)5.33mm
Minimum Thread Pitch (Decimal Inch)0.032"
Minimum Thread Pitch (mm)0.80mm
Maximum Thread Pitch (Decimal Inch)0.032"
Maximum Thread Pitch (mm)0.80mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class4H
Threading Chamfer TypeB
Thread Form TypeEGM
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingUncoated
Product TypeSpiral Point Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Thread Size:
EGM5
Number of Flutes:
3
Thread Standard:
EGM
Finish/Coating:
Uncoated
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
