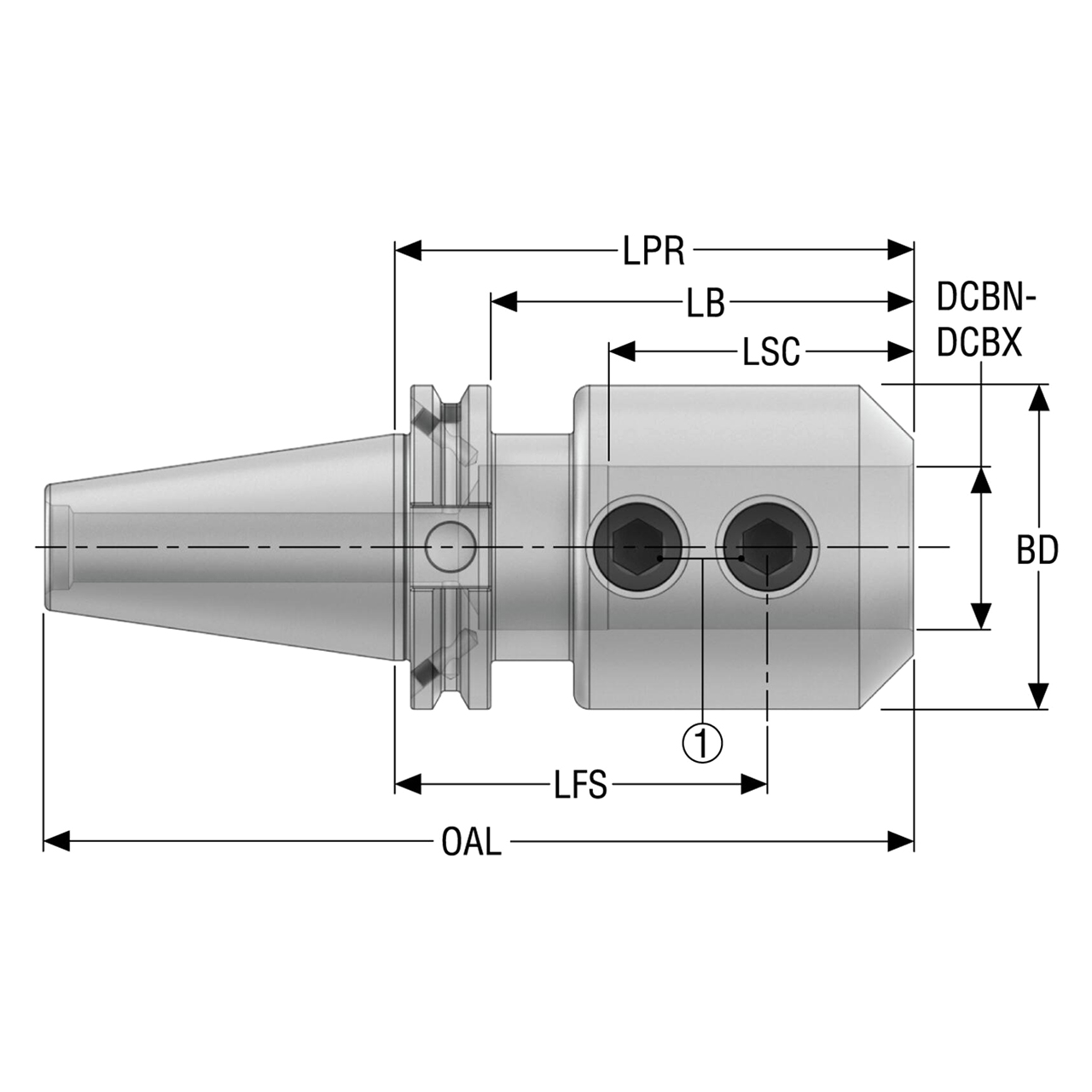

Product Specifications
| Manufacturer Part Number | 10008190 |
| Body Diameter (Decimal Inch) | 2.559" |
| Body Diameter (mm) | 65.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Body Length (Decimal Inch) | 3.250" |
| Body Length (mm) | 82.55mm |
| Functional Length Secondary (Decimal Inch) | 3.055" |
| Functional Length Secondary (mm) | 77.60mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 2.126" |
| Clamping Length (mm) | 54.00mm |
| Overall Length (Decimal Inch) | 6.687" |
| Overall Length (mm) | 169.85mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2-19/34"
Body Diameter (Decimal Inch):
2.5590"
Body Diameter (mm):
65.00mm
Overall Length (Inch):
6-11/16"
Overall Length (Decimal Inch):
6.6870"
Overall Length (mm):
169.85mm
interval quantity:
1
