Seco Tools 10072060 | JHB970040D1B.0Z2 4.00mm Diameter x 4.00mm Shank x 1.99mm Corner Radius x 60.00mm OAL x 30 Degree Helix Angle 2 Flute SIRON Coated Carbide Ball End Mill

$113.74
Brand:
Seco Tools
Mill Diameter (Inch):
3/19"
Mill Diameter (Decimal Inch):
0.1575"
Mill Diameter (mm):
4.00mm
Number of Flutes:
2
Material:
Carbide
Shank Type:
Cylindrical
Overall Length (Inch):
2-21/58"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Shank Diameter (Inch):
3/19"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Finish/Coating:
SIRON-A
Cutting Direction:
Right Hand
Helix Angle:
30 Degree
interval quantity:
1
SKU:
25274802
Weight:
0.02 LBS
Shipping:
Free Shipping
Seco Tools 10072060 | JHB970040D1B.0Z2 4.00mm Diameter x 4.00mm Shank x 1.99mm Corner Radius x 60.00mm OAL x 30 Degree Helix Angle 2 Flute SIRON Coated Carbide Ball End Mill

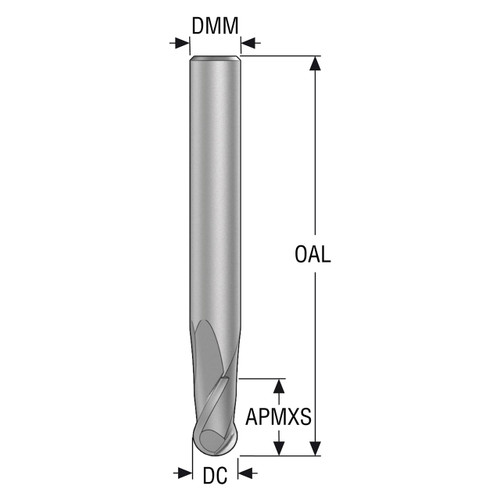

Product Specifications
Manufacturer Part Number10072060
Cutting Diameter (mm)4.00mm
Cutting Diameter 1 (mm)4.00mm
Connection Diameter Machine Side (mm)4.00mm
Shank Diameter (mm)4.00mm
Minimum Helical Interpolation Hole Diameter (mm)5.20mm
Maximum Helical Interpolation Hole Diameter (mm)7.20mm
Cutting Edge Effective Length (mm)6.00mm
Minimum Clamping Length (mm)28.00mm
Length Variant Cataloque1
Theoretical Cutting Edge Length (mm)6.00mm
Overall Length (mm)60.00mm
Number of Flute2
Pheripheral Cutting Edge Count2
Maximum Depth of Cut (mm)6.00mm
Profile Radius (mm)1.99mm
Corner Radius (mm)1.99mm
Axial Runout (mm)0.01mm
Radial Runout (mm)0.01mm
Cutting Edge Count2
Face Cutting Edge Count2
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Flute Helix Angle (Degree)30 Degree
Rake Radial Angle (Degree)8 Degree
Rake Orthogonal Angle (Degree)8 Degree
Maximum Ramping Angle (Degree)2.5 Degree
Cutting DirectionRight Hand
Flute Helix HandRight Hand
Center Cutting CapabilityYes
Cutting Geometry TypeJHB970
Cutting Geometry Type TechnicalJHB970
Internal Coolant ChannelNo
Cutting Item Material TypeHMG
Shank TypeCylindrical
MaterialCarbide
CoatingSIRON-A
Product TypeBall End Mill
