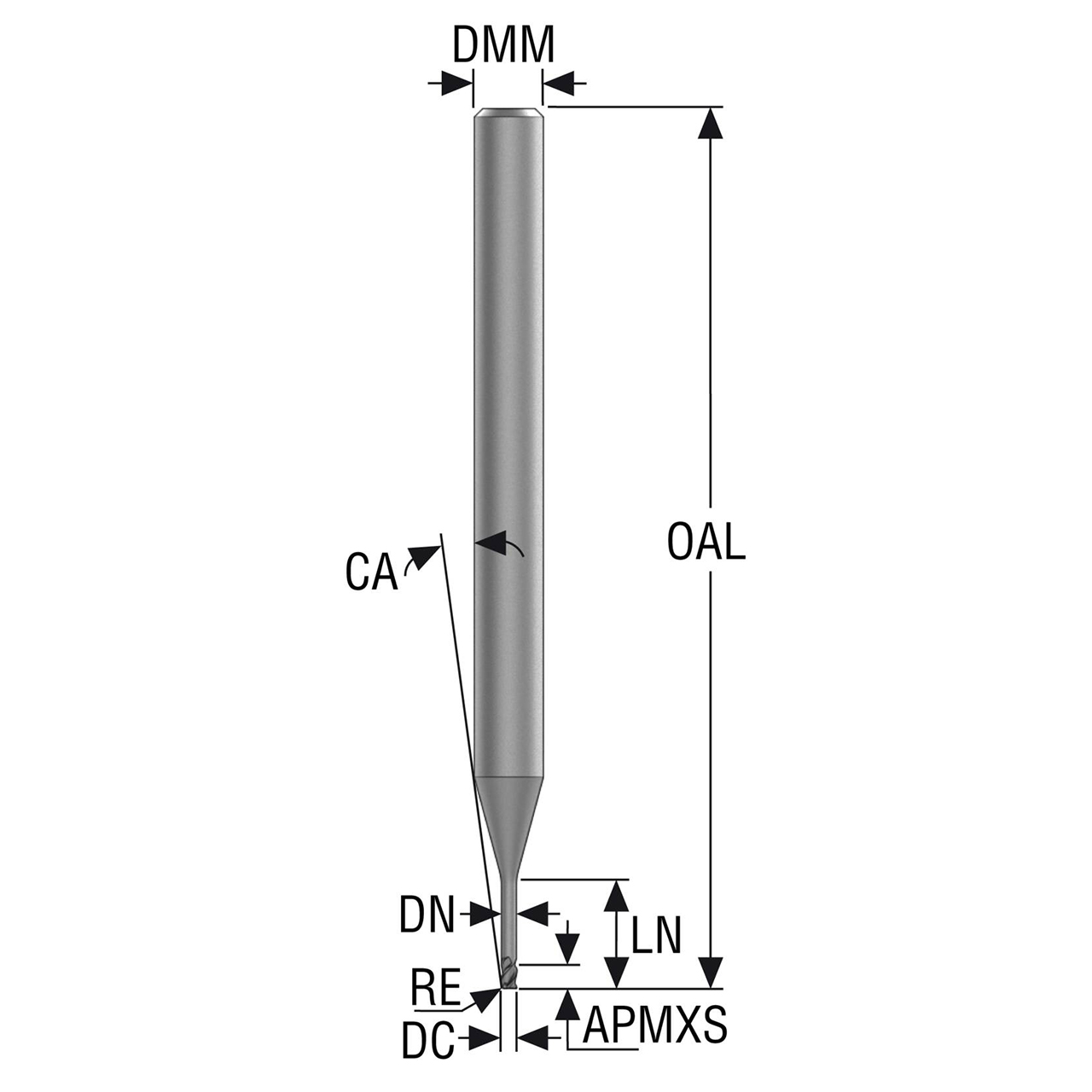

Product Specifications
| Manufacturer Part Number | 10107354 |
| Cutting Diameter (mm) | 1.50mm |
| Cutting Diameter 1 (mm) | 1.50mm |
| Connection Diameter Machine Side (mm) | 4.00mm |
| Shank Diameter (mm) | 4.00mm |
| Neck Diameter (mm) | 1.40mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 2.79mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 1.95mm |
| Overall Length (mm) | 50.00mm |
| Neck Length (mm) | 12.00mm |
| Neck Length 1 (mm) | 12.00mm |
| Cutting Edge Effective Length (mm) | 1.80mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Corner Radius (mm) | 0.10mm |
| Shank Type | Cylindrical |
| Collision Angle (Degree) | 3.38 Degree |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | SME714 |
| Cutting Geometry Type Technical | SME714 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Flute Helix Direction | Right |
| Axial Rake Angle (Degree) | 3 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Material | Carbide |
| Coating | HXT |

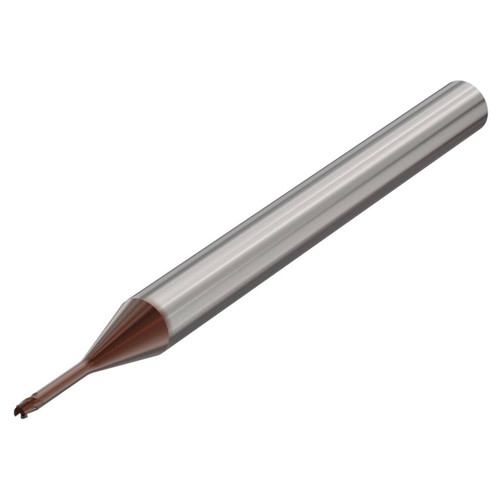

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
1/17"
Mill Diameter (Decimal Inch):
0.0591"
Mill Diameter (mm):
1.50mm
Number of Flutes:
3
Corner Radius (Decimal Inch):
0.0039"
Corner Radius (mm):
0.10mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
HXT
Shank Diameter (Inch):
3/19"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Overall Length (Inch):
1-92/95"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50.00mm
Cutting Direction:
Right Hand
