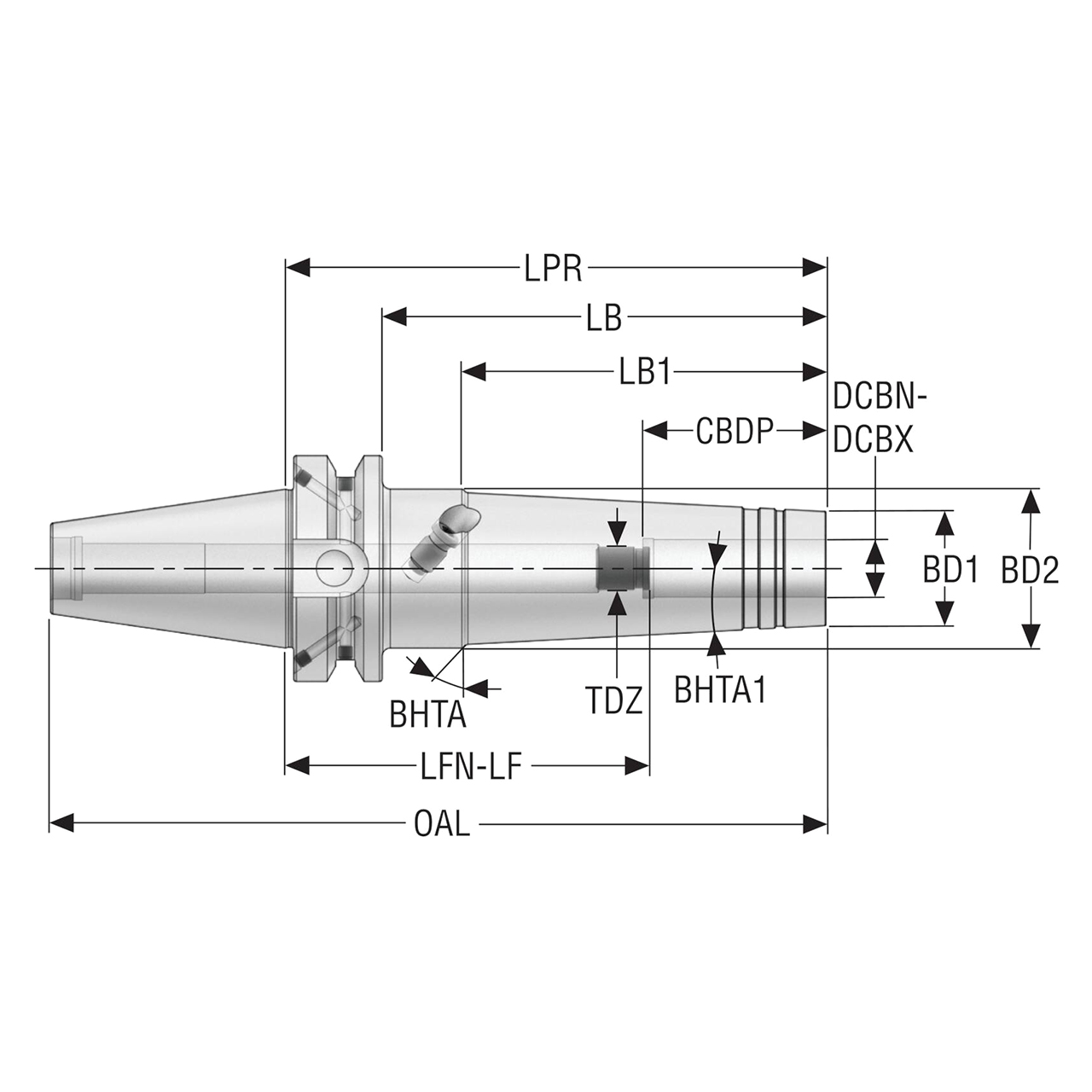

Product Specifications
| Manufacturer Part Number | 10137350 |
| Connection Bore Diameter (Decimal Inch) | 0.630" |
| Connection Bore Diameter (mm) | 16.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Minimum Connection Bore Diameter (mm) | 16.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Diameter 1 (Decimal Inch) | 1.260" |
| Body Diameter 1 (mm) | 32.00mm |
| Body Diameter 2 (Decimal Inch) | 1.752" |
| Body Diameter 2 (mm) | 44.50mm |
| Thread Diameter Size | M12x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 52.00mm |
| Body Length (Decimal Inch) | 4.843" |
| Body Length (mm) | 123.00mm |
| Body Length 1 (Decimal Inch) | 3.937" |
| Body Length 1 (mm) | 100.00mm |
| Functional Length (Decimal Inch) | 4.331" |
| Functional Length (mm) | 110.00mm |
| Minimum Functional Length (Decimal Inch) | 3.937" |
| Minimum Functional Length (mm) | 100.00mm |
| Protruding Length (Decimal Inch) | 5.906" |
| Protruding Length (mm) | 150.00mm |
| Overall Length (Decimal Inch) | 8.480" |
| Overall Length (mm) | 215.40mm |
| Body Half Taper Angle Degree) | 30 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | BT & BT Taper-face |
| Product Type | Hydraulic Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-13/50"
Body Diameter (Decimal Inch):
1.2600"
Body Diameter (mm):
32.00mm
Overall Length (Inch):
8-12/25"
Overall Length (Decimal Inch):
8.4800"
Overall Length (mm):
215.40mm
interval quantity:
1
