Product Specifications
| Manufacturer Part Number | 10138053 |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.360" |
| Contact Surface Diameter Workpiece Side (mm) | 9.15mm |
| Functional Length (Decimal Inch) | 0.402" |
| Functional Length (mm) | 10.20mm |
| Length Variant Cataloque | 2 |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Body Half Taper Angle 2 (Degree) | 11.35 Degree |
| Maximum Rotational Speed (rpm) | 40000 rpm |
| Coolant Supply Property | 1 |
| Connection Size Code | E10 |
| Connection Size Code Workpiece Side | E10 |
| Cutting Item Material Type | STEEL |
| Shank Type | Cylindrical |

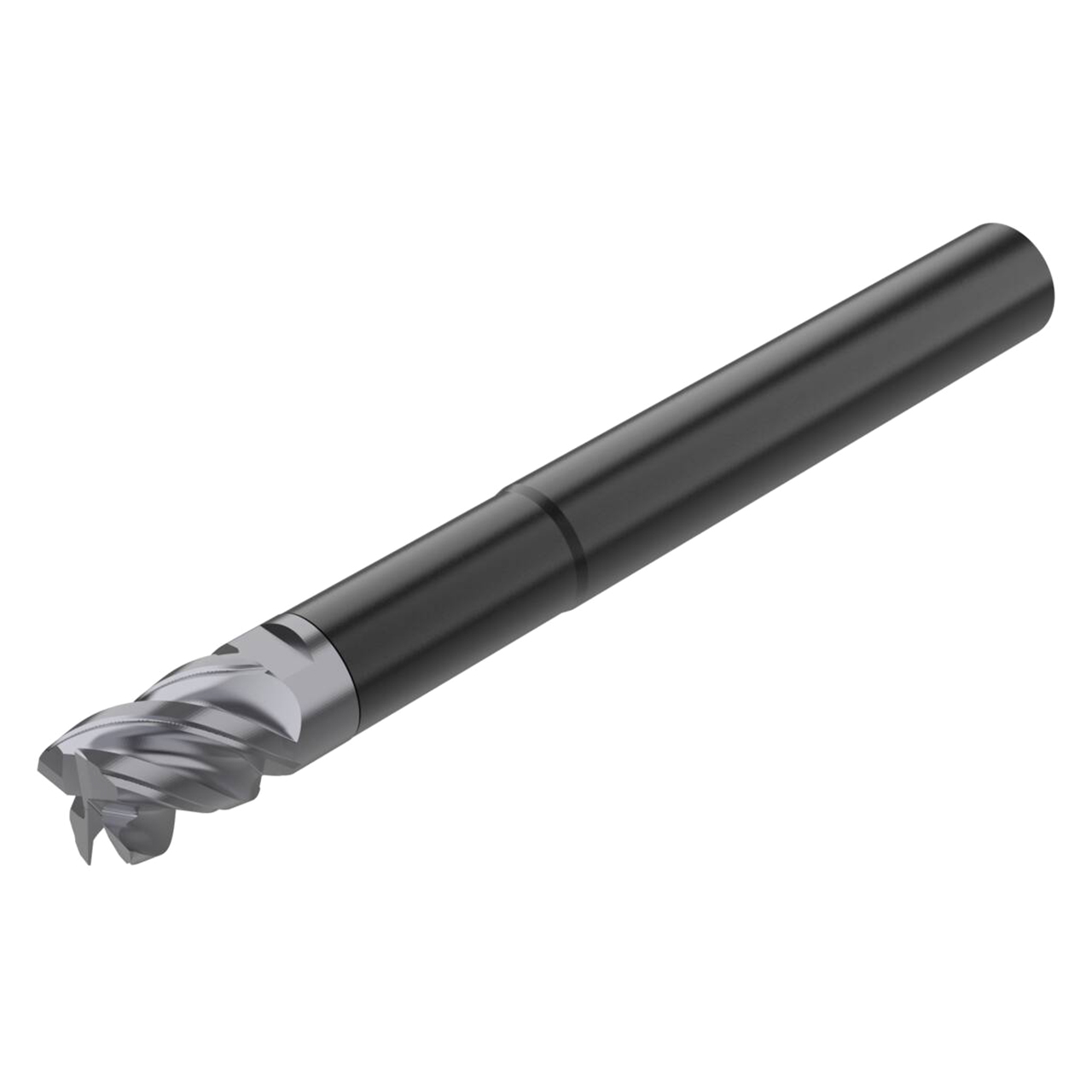

| Product Type | Replaceable Tip Milling Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Type:
Cylindrical
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3800"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
interval quantity:
1
