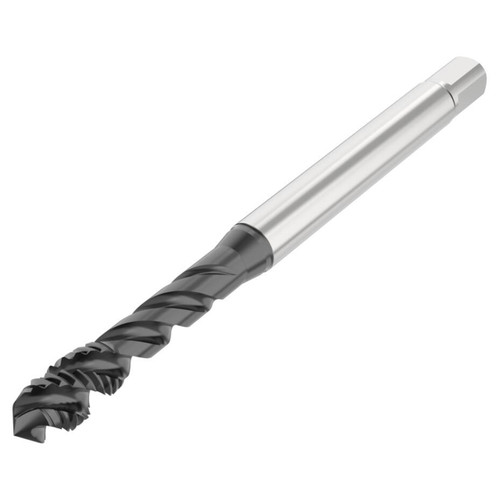

Seco Tools 10139006 | T34-R45H02C03-6X0.5-65R MF6X0.5 Thread Size x 0.236" Diameter x 0.236" Shank x 3.244" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

$67.76
Brand:
Seco Tools
Thread Size:
MF6X0.5
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Inch):
3-10/41"
Overall Length (Decimal Inch):
3.2440"
Overall Length (mm):
82.40mm
interval quantity:
1
SKU:
17993891
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139006 | T34-R45H02C03-6X0.5-65R MF6X0.5 Thread Size x 0.236" Diameter x 0.236" Shank x 3.244" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

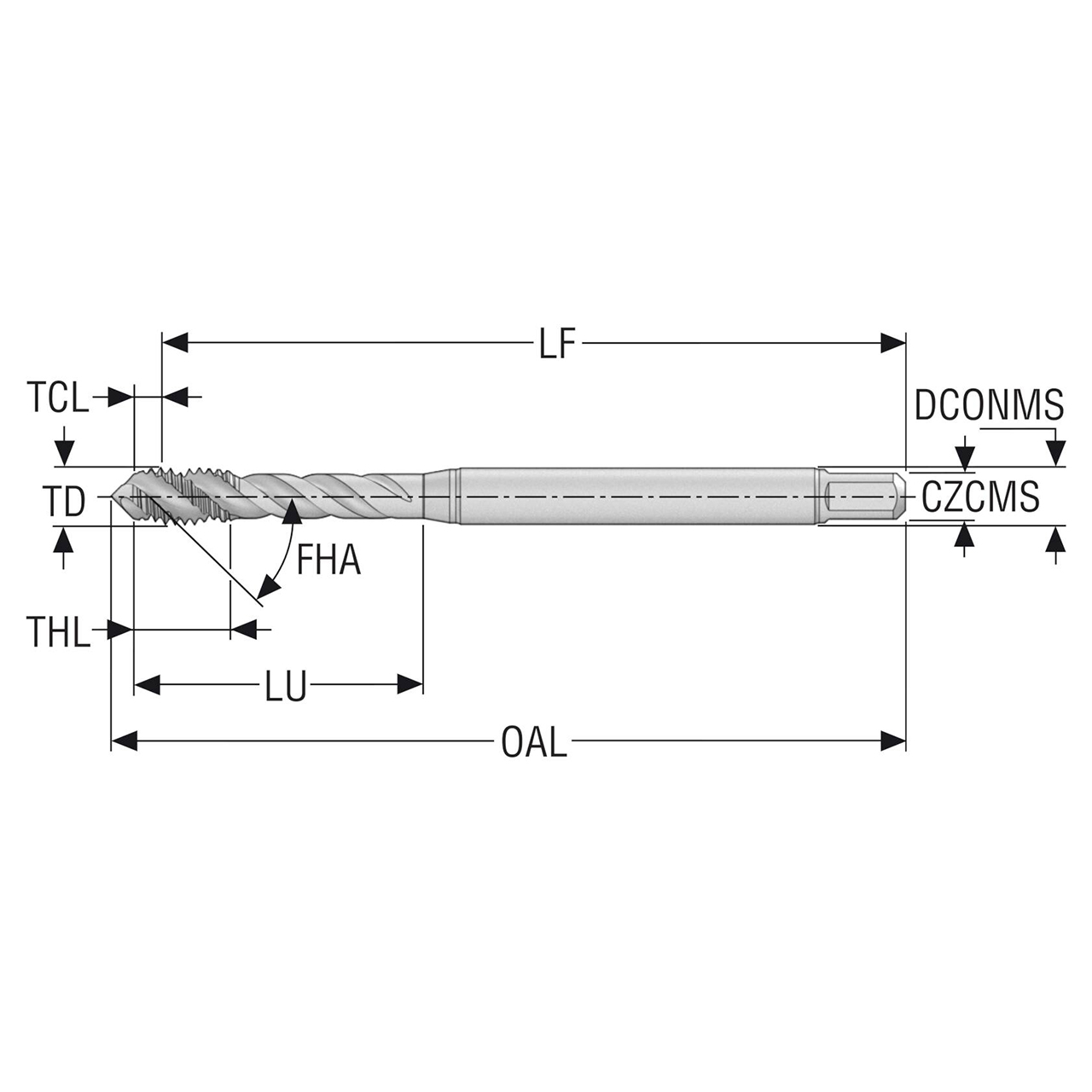

Product Specifications
Manufacturer Part Number10139006
Thread Diameter (Decimal Inch)0.236"
Thread Diameter (mm)6.00mm
Threading Chamfer Length (Decimal Inch)0.048"
Threading Chamfer Length (mm)1.22mm
Tap Chamfer Length (Decimal Inch)0.048"
Tap Chamfer Length (mm)1.22mm
Connection Diameter Machine Side (Decimal Inch)0.236"
Connection Diameter Machine Side (mm)6.00mm
Shank Diameter (Decimal Inch)0.236"
Shank Diameter (mm)6.00mm
Functional Length (Decimal Inch)3.102"
Functional Length (mm)78.78mm
Usable Length (Decimal Inch)1.181"
Usable Length (mm)30.00mm
Overall Length (Decimal Inch)3.244"
Overall Length (mm)82.40mm
Thread Length (Decimal Inch)0.394"
Thread Length (mm)10.00mm
Thread Diameter SizeMF6X0.5
Recommended Premachined Hole Diameter (Decimal Inch)0.217"
Recommended Premachined Hole Diameter (mm)5.50mm
Connection Size Code6.00X4.90
Connection Size Code Machine Side6.00X4.90
Maximum Premachined Hole Diameter (Decimal Inch)0.220"
Maximum Premachined Hole Diameter (mm)5.60mm
Minimum Thread Pitch (Decimal Inch)0.020"
Minimum Thread Pitch (mm)0.50mm
Maximum Thread Pitch (Decimal Inch)0.020"
Maximum Thread Pitch (mm)0.50mm
Flute Helix Angle (Degree)45 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeSpiral Flute Tap
