Seco Tools 74077627 | XOMX0903 Size x 0.122" Radius x 0.126" Thickness 2 Cutting Edge Carbide Square Shoulder Milling Insert

$24.20 $18.63
(You save $5.57)
Brand:
Seco Tools
Material:
Carbide
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1260"
Thickness (mm):
3.21mm
interval quantity:
10
SKU:
23289749
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 74077627 | XOMX0903 Size x 0.122" Radius x 0.126" Thickness 2 Cutting Edge Carbide Square Shoulder Milling Insert

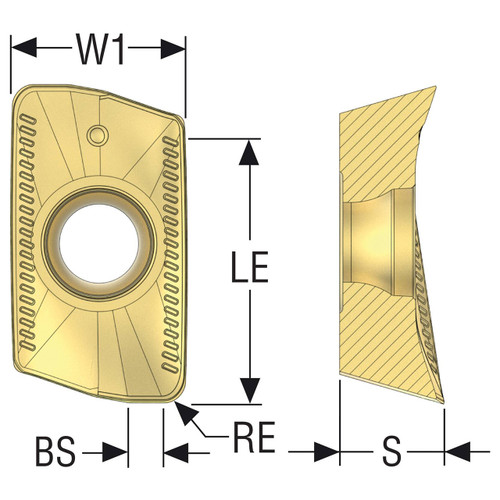

Product Specifications
Manufacturer Part Number74077627
Fixing Hole Diameter (Decimal Inch)0.114"
Fixing Hole Diameter (mm)2.90mm
Wiper Edge Length (Decimal Inch)0.001"
Wiper Edge Length (mm)0.02mm
Cutting Edge Effective Length (Decimal Inch)0.354"
Cutting Edge Effective Length (mm)9.00mm
Insert Width (Decimal Inch)0.250"
Insert Width (mm)6.35mm
Corner Radius (Decimal Inch)0.122"
Corner Radius (mm)3.10mm
Insert Thickness (Decimal Inch)0.126"
Insert Thickness (mm)3.21mm
Clearance Angle Major (Degree)15 Degree
Cutting Edge Count2
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME06
Pocket Seat Code of The CutterXO.X0903
Insert Size And ShapeXOMX0903
Insert Rake Angle (Degree)22.5 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeSquare Shoulder Milling Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1260"
Thickness (mm):
3.21mm
