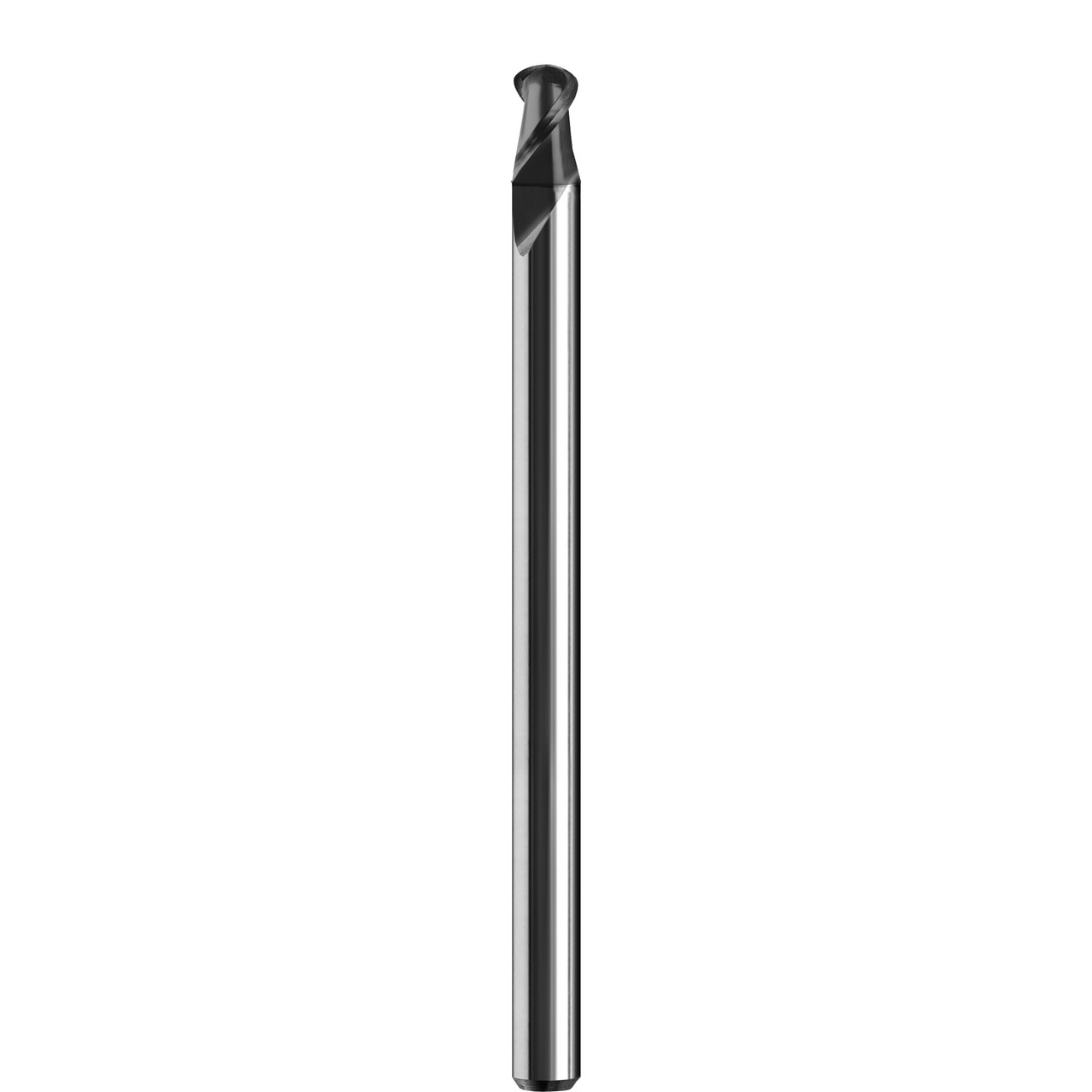

Features:
- Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
- Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
- High performance carbide substrate designed specifically for Micro Tool applications
- Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
- Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
- All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures
Product Specifications
| Cutting Diameter (mm) | 0.6mm |
| Shank Diameter (mm) | 3.0mm |
| Length of Cut (mm) | 0.9mm |
| Overall Length (mm) | 38.0mm |
| Shank Length (mm) | 37.1mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (mm) | 1 mm |
| Helix Angle | 30 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
1/32"
Length of Cut (Decimal Inch):
0.0354"
Length of Cut (mm):
3mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.4961"
Overall Length (mm):
38mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3mm
Finish/Coating:
TA
Cutting Direction:
RHC
Helix Angle (Degree):
30 Degree
