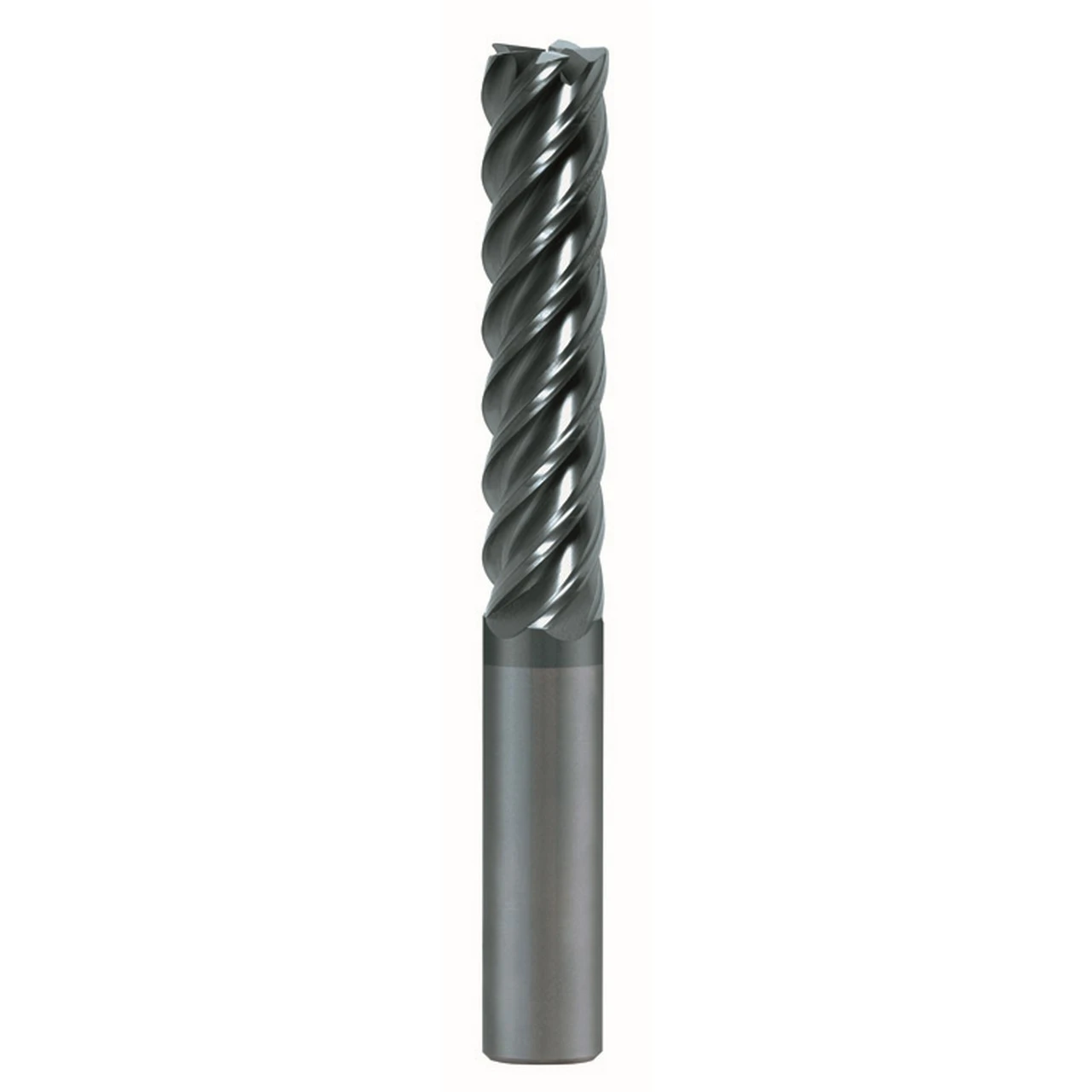

SGS 32607 | 1/8" Diameter x 1/8" Shank x 1/2" LOC x 1-1/2" OAL 5 Flute AlTiN Coated Corner Radius End Mill

$22.18
Brand:
SGS
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.7mm
Finish/Coating:
TA
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Cutting Direction:
RHC
SKU:
25195481
UPC:
691781326078
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/8"
Shank Diameter (Inch)1/8"
Length of Cut (Inch)1/2"
Overall Length (Inch)1-1/2"
Shank Length (Inch)1"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.01"
Helix Angle45 Degree
CoatingAlTiN
Number of Flutes5
