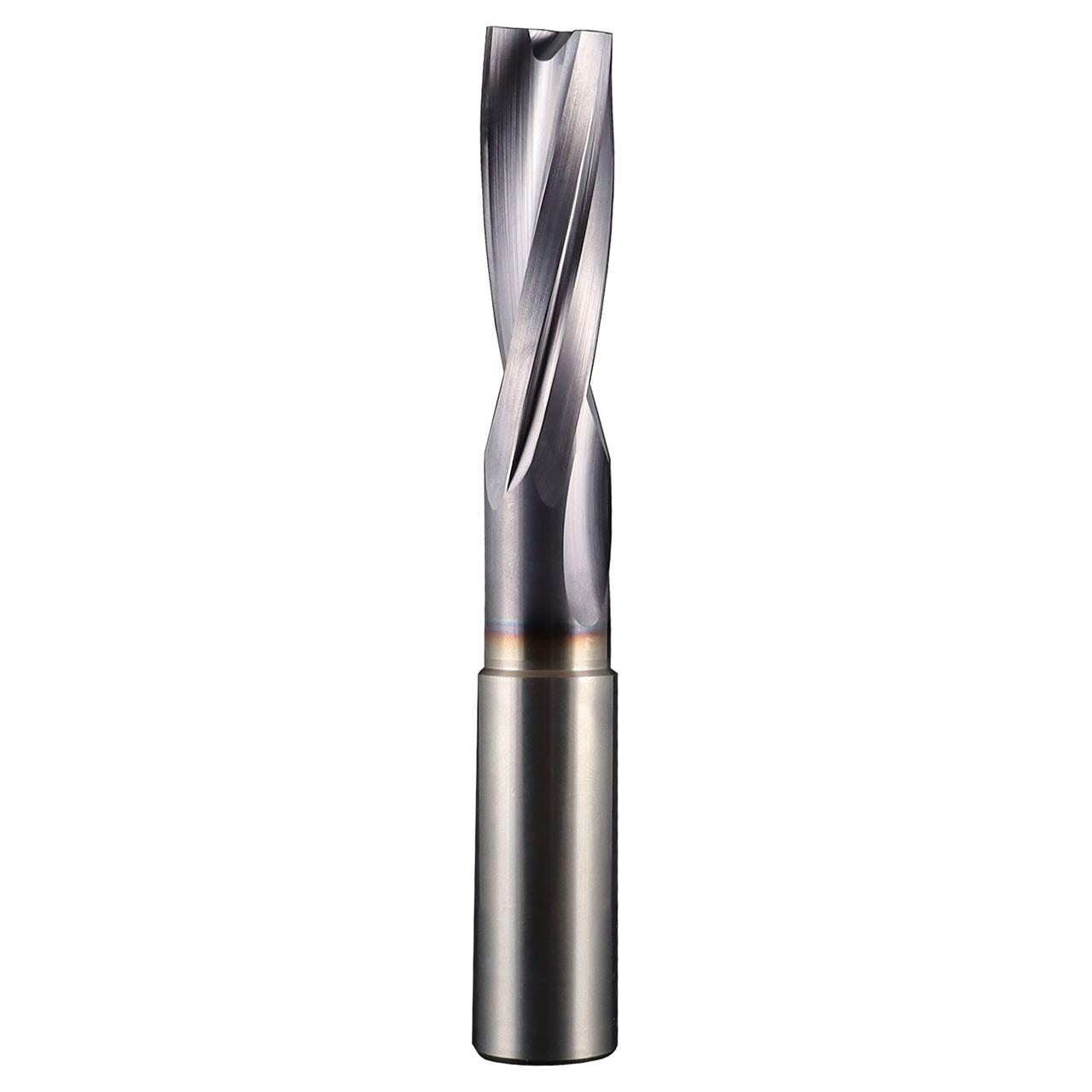

Features:
- 4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
- Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
- Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
- Recommended for materials ≤ 56 HRc (≤ 577 Bhn)
Product Specifications
| Manufacturer Part Number | 58814 |
| Size | 3/16" |
| Cutting Diameter (Inch) | 3/16" |
| Cutting Diameter (Decimal Inch) | 0.188" |
| Cutting Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Decimal Inch) | 0.827" |
| Flute Length (mm) | 21.00mm |
| Usable Length (Decimal Inch) | 0.602" |
| Usable Length (mm) | 15.29mm |
| Overall Length (Decimal Inch) | 2.362" |
| Overall Length (mm) | 60.00mm |
| Shank Length (Decimal Inch) | 1.322" |
| Shank Length (mm) | 33.57mm |
| Shank Diameter Tolerance | h6 |
| Point Angle (Degree) | 180 Degree |
| Flute Type | Spiral |
| Number of Margins | 4 |
| Number of Flutes | 2 |
| Reach (xD) | 3xD |
| Center Cutting | No |
| Double Margins | Yes |
| High Performance | Yes |
| Self Centering | Yes |
| Coating | TX (Ti-NAMITE-X) |
| Product Type | Flat Bottom Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Cutting Diameter (Inch):
3/16"
Cutting Diameter (Decimal Inch):
0.1880"
Cutting Diameter (mm):
4.76mm
Shank Diameter (Inch):
21/89"
Shank Diameter (Decimal Inch):
0.2360"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-21/58"
Overall Length (Decimal Inch):
2.3620"
Overall Length (mm):
60.00mm
Size:
3/16"
Finish/Coating:
TX (Ti-NAMITE-X)
Number of Flute:
2
Point Angle (Degree):
180 Degree
