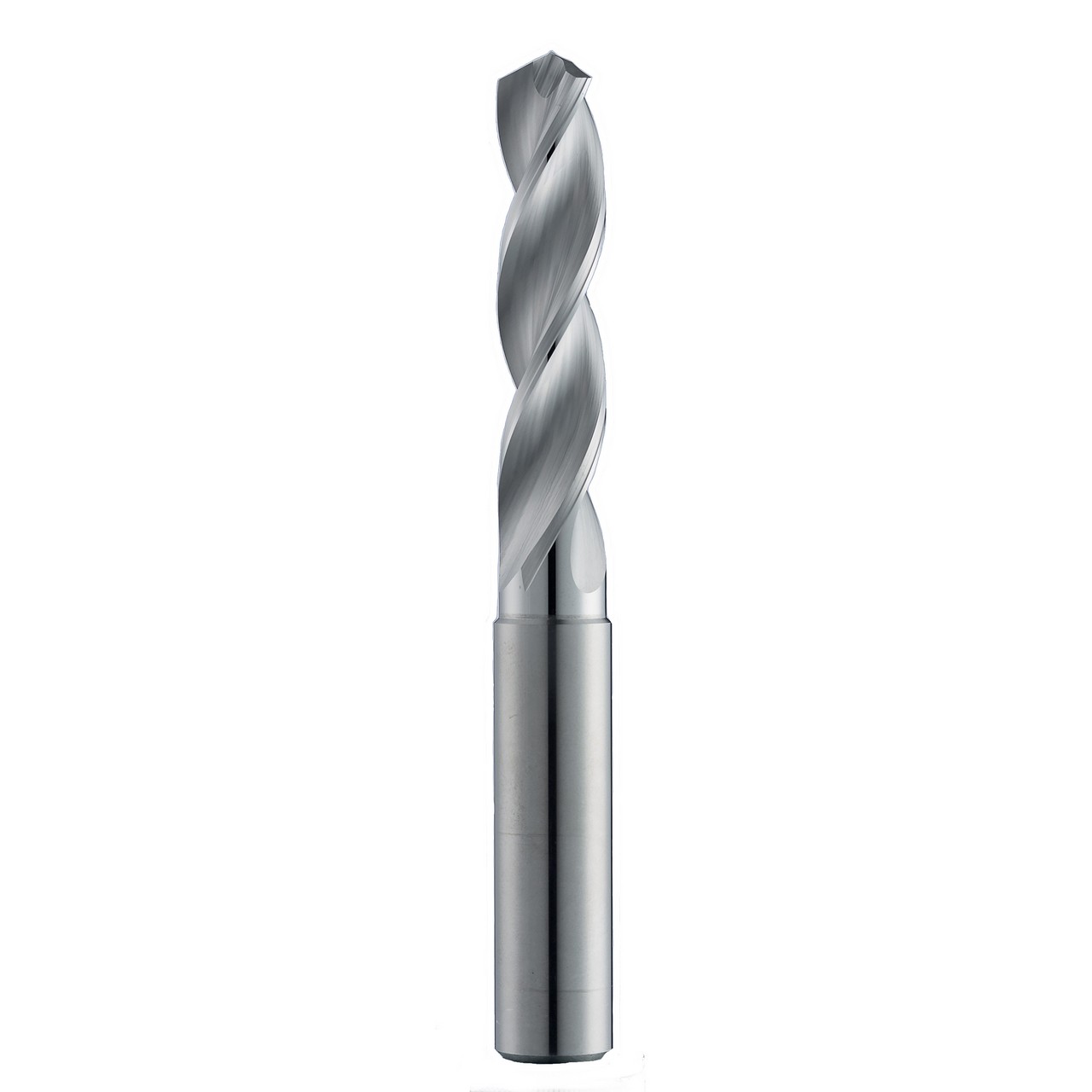

Features:
- Triple margin design improves hole stability and size control while providing superior finish, roundness and cylindricity
- Self-stabilizing pyramid point design stabilizes the drill on contact with the workpiece
- Open flute structure efficiently transports chips while maintaining strength at high feed rates
- Sculpted gash allows chips to easily flow away from the drill center
Product Specifications
| Cutting Diameter (mm) | 9.6mm |
| Shank Diameter (mm) | 10.0mm |
| Length of Cut (mm) | 47.0mm |
| Overall Length (mm) | 89.0mm |
| Shank Length (mm) | 40.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (mm) | 35.1 mm |
| Helix Angle | 30 Degree |
| Point Angle | 124 Degree |
| Coating | TiB2 |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Drill Point Angle:
124°
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89mm
Finish/Coating:
TB
Flute Type:
Spiral
Cutting Direction:
RHC
