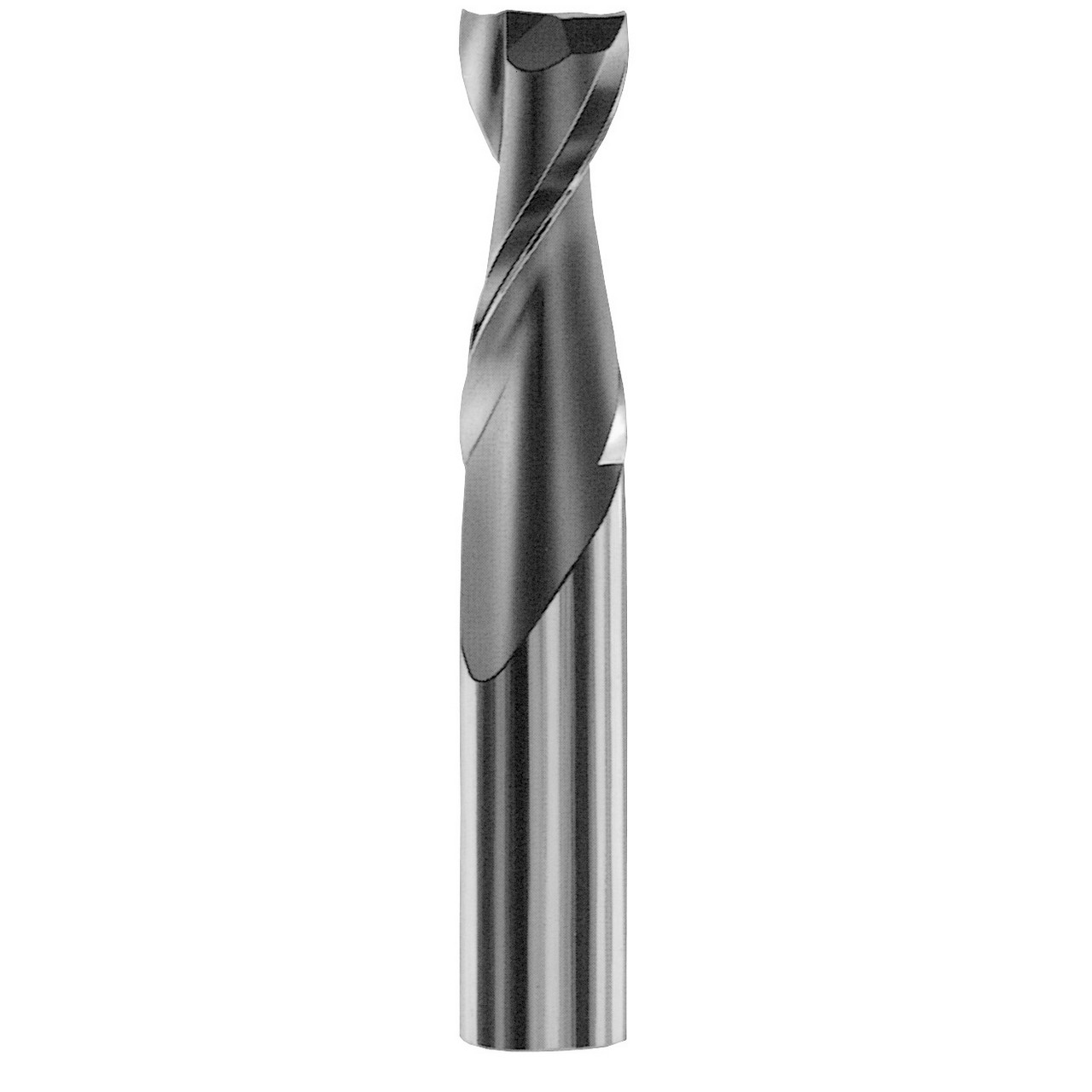

SGS 90009 | 3/16" Diameter x 1/4" Shank x 3/4" LOC x 2-1/2" OAL 2 Flute Uncoated Spiral Router Bit

$22.73
Brand:
SGS
Cutting Diameter (Inch):
3/16"
Cutting Diameter (Decimal Inch):
0.1875"
Cutting Diameter (mm):
4.76mm
Number of Flutes:
2
Flute Type:
Spiral
Cutting Direction:
Right Hand
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
End Type:
Square
SKU:
25201666
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)3/16"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)3/4"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.75"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle35 Degree
CoatingUncoated
Number of Flutes2
