Features

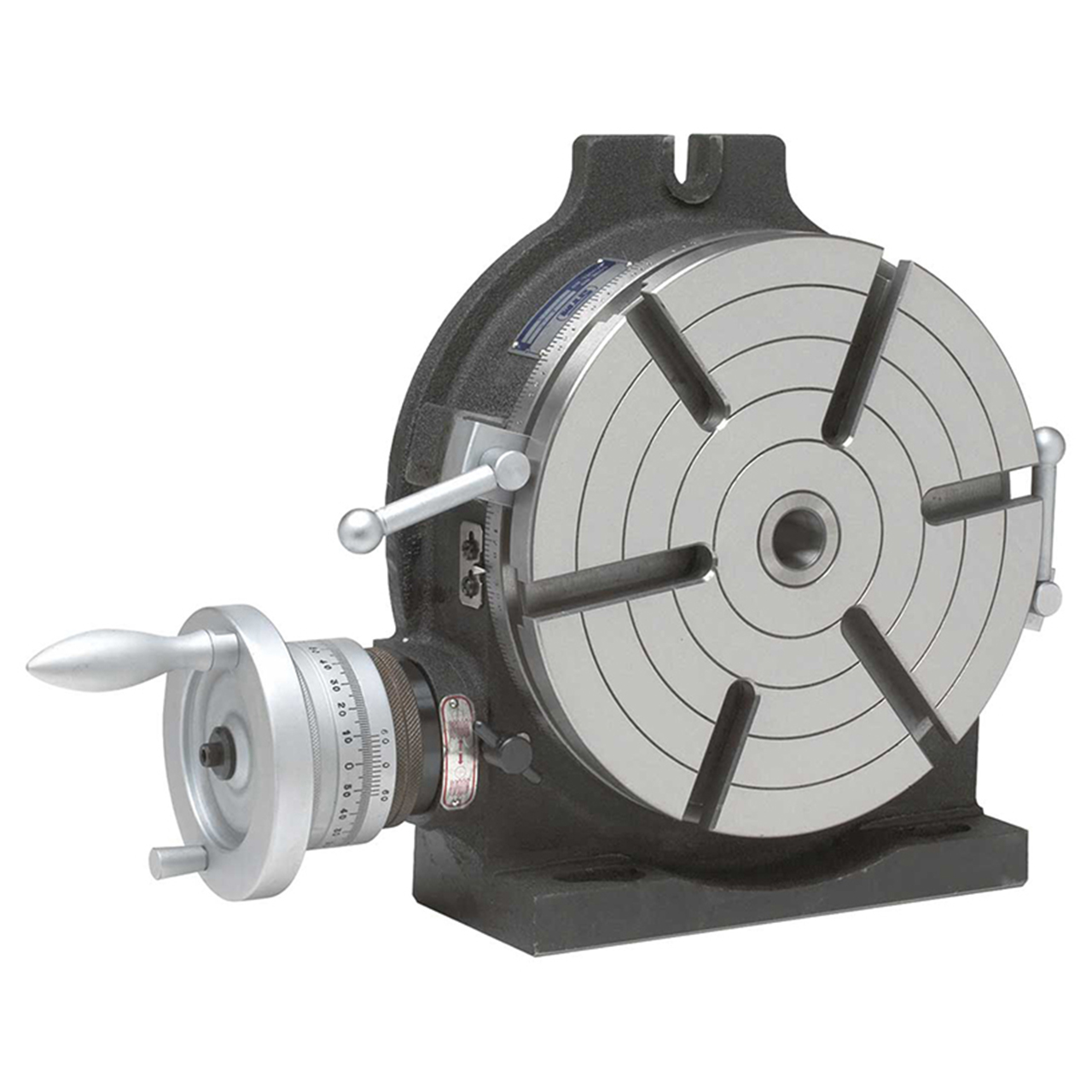

- This HV Type Rotary Table is so designed as to permit machining operations at a higher dimension than that of RT Type Rotary tables
- The base can be used in a vertical position to enable the carrying out of center work
- Worm gear is 90:1
Product Specifications
| Manufacturer Part Number | 326500 |
| Setting Position | Horizontal; Vertical |
| Tilting | No |
| Cross-Slide | No |
| Table Diameter (Inch) | 6" |
| T-Slot Width (Decimal Inch) | 0.43" |
| Centerline Height (Decimal Inch) | 100" |
| Overall Height (Decimal Inch) | 3.11" |
| Model Number | HV-6 |
| Center Taper | MT2 |
| Product Type | Horizontal/Vertical Rotary and Dividing Table |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Height (Inch):
3-7/64"
Height (Decimal Inch):
3.1100"
Height (mm):
78.99mm
Width (Inch):
7/16"
Width (Decimal Inch):
0.4300"
Width (mm):
10.92mm
Diameter (Inch):
6"
Diameter (Decimal Inch):
6.0000"
Diameter (mm):
152.40mm
