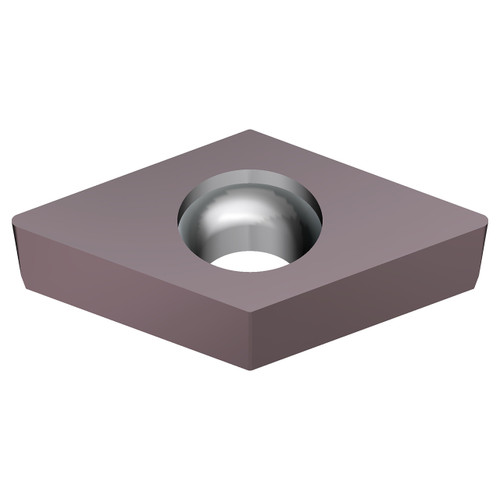

Product Specifications
| EDP Number | 10JJAQL |
| Product Code-ANSI | DCGA21.50.5-AC503U |
| Product Code-ISO | DCGW070202 |
| Manufacturer Grade Identification | AC503U |
| Series | AC503U |
| Cutting Edge Length (Decimal Inch) | 0.3031" |
| Cutting Edge Length (mm) | 7.70mm |
| Nose Radius (Decimal Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.2500" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Hole Diameter (mm) | 2.80mm |
| Insert Thickness (Decimal Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Corner Angle | 55 |
| Insert Style | DCGA |
| Secondary Workpiece Material | Hardened Steel |
| Primary Workpiece Material | Hardened Steel |
| Coating | Super ZX Coat |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | H05 |
| Insert Holding Method | Screw-On |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
DCGA
Insert Size:
21.50.5
Material:
Carbide
Length (Inch):
5/16"
Length (Decimal Inch):
0.3031"
Length (mm):
7.70mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
AC503U
interval quantity:
10
Ships:
From California in 1-2 Days
